Neutrik TRUE1 2+PE powerCON Connector (Male)
Click the image to zoom

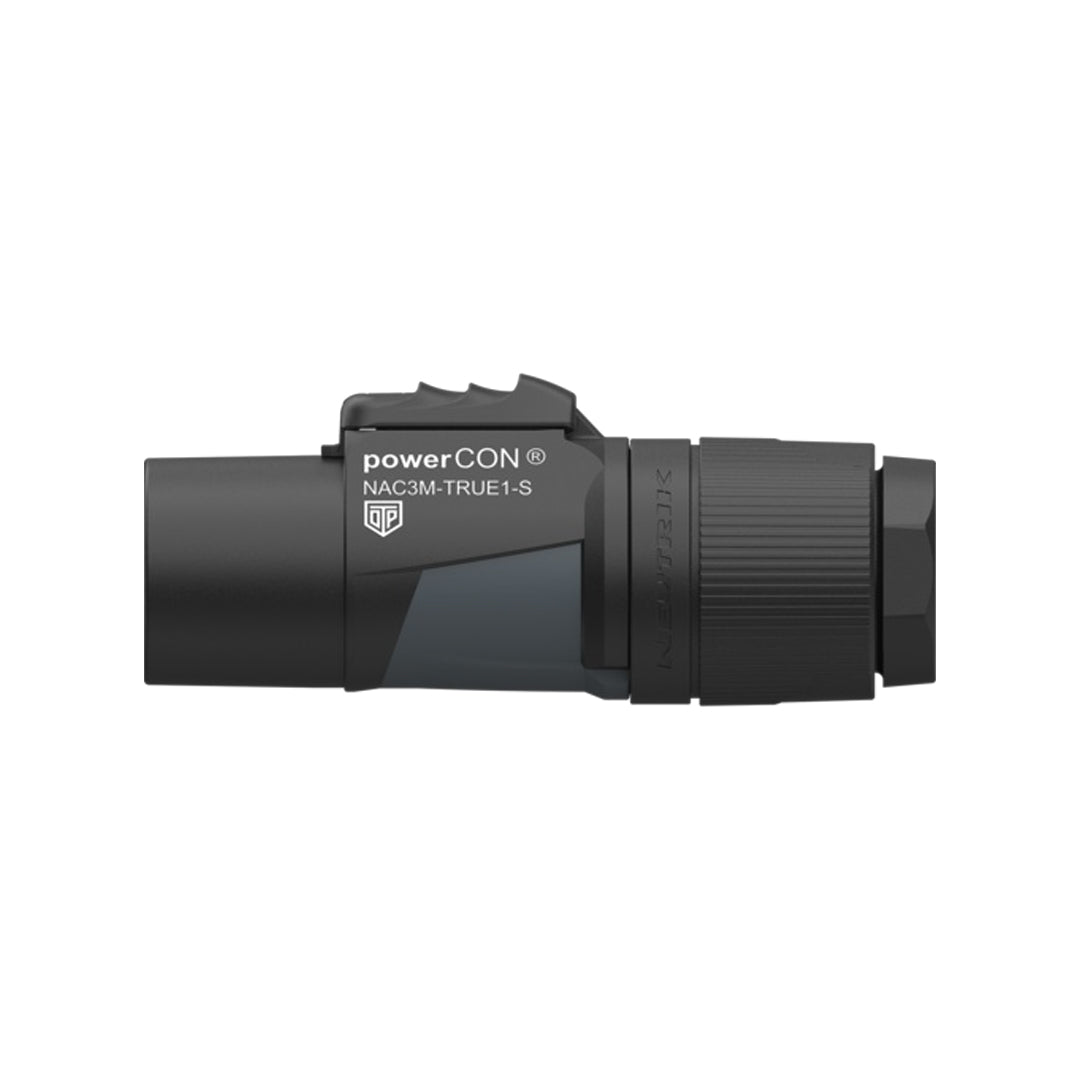

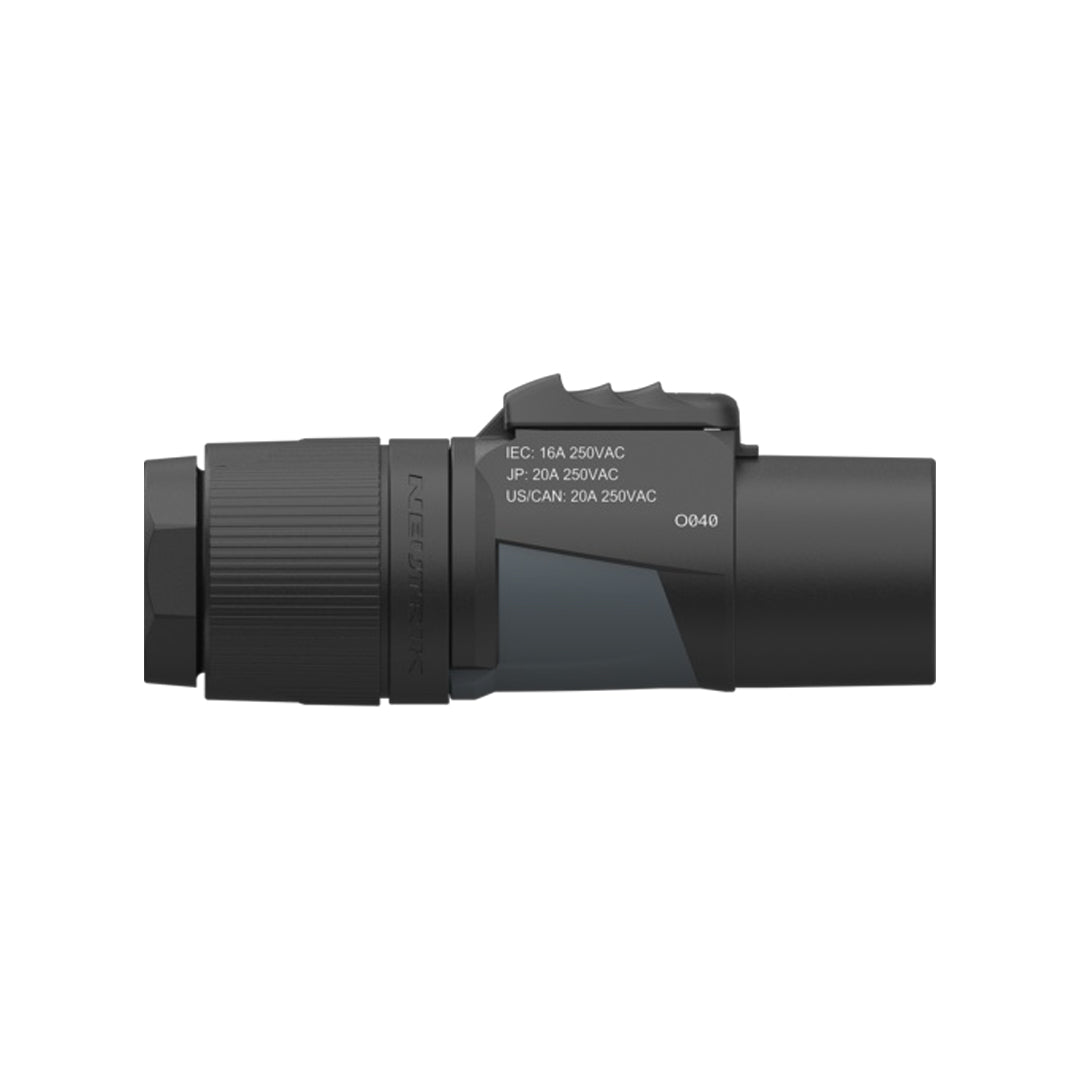

Neutrik TRUE1 2+PE powerCON Connector (Male)
$20.38
In stock
— ships in 1 business day
Description
This connector replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features:
Specifications
Neutrik TRUE1 2+PE powerCON Connector (Male)
This connector replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Color: Grey
Connector Type: powerCON TRUE1
Temperature Range: -30℃ to +80℃
Contact Plating: 2μm Ag
Contacts: Copper Alloy
| Product | Neutrik TRUE1 2+PE powerCON Connector (Male) |
| Color | Grey |
| Connector Type | powerCON TRUE1 |
| Temperature Range | -30℃ to +80℃ |
| Contact Plating | 2μm Ag |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA6.6) |
| Locking Element | Polyamide (PA6.6) |
| Shell | Polyamide (PA6.6) |
| Strain Relief | Polyketone |
| Gender | Male |
| Contact Resistance | ≤ 2 mΩ |
| Dielectric Strength | 4 kVdc / 2.8 kVac |
| Insulation Resistance | >0.1GΩ (after damp and heat test IEC 68-2-30) |
| Number of electrical contacts | 2 + PE |
| Rated Voltage | 20A 250 VAC |
