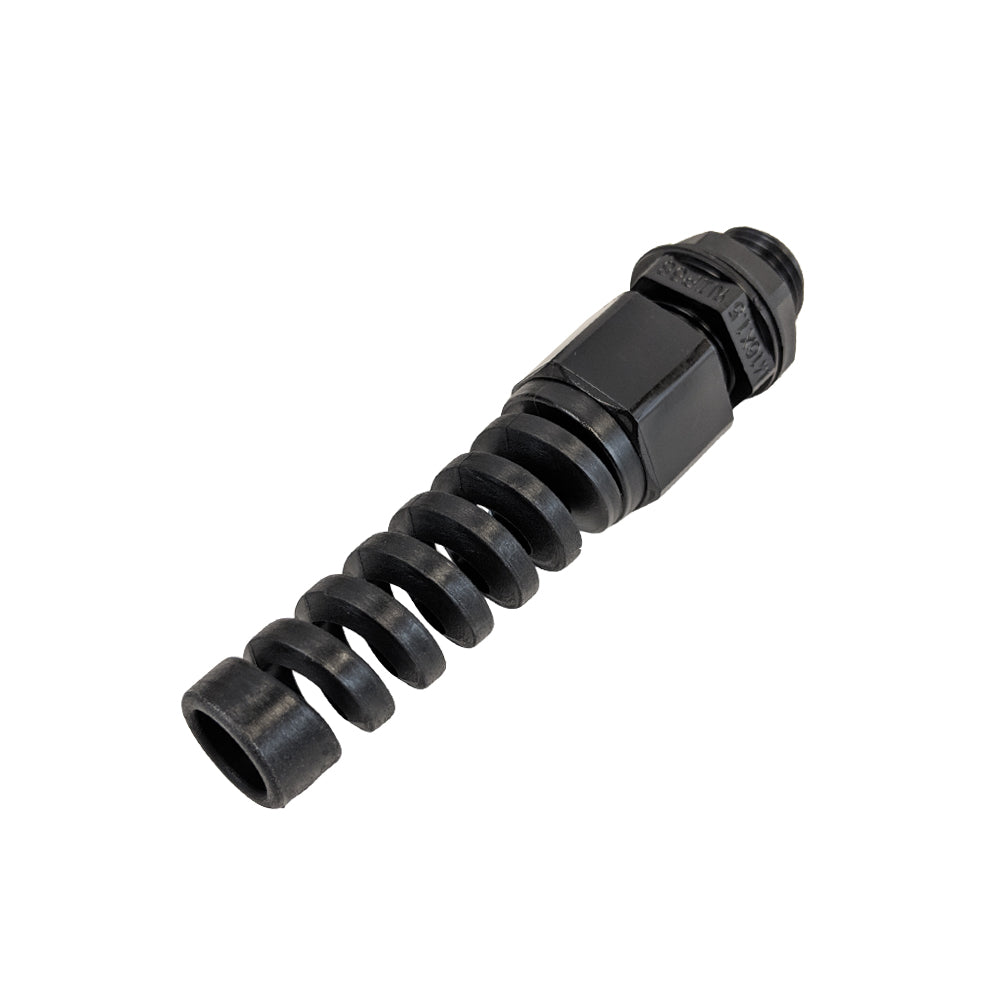

Cable Gland with Strain Relief M16x1.5 Thread - Cable OD 5~10mm - IP68 - Black
$2.19
In stock
— ships in 1 business day
Description
This cable gland with strain relief has a metric thread pattern of M16xP1.5 and accommodates a cable size of 5 to 10mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.
Specifications
Cable Gland with Strain Relief M16x1.5 Thread - Cable OD 5~10mm - IP68 - Black
This cable gland with strain relief has a metric thread pattern of M16xP1.5 and accommodates a cable size of 5 to 10mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2.
Color: Black
Material: Nylon 66
Thread: M16xP1.5
Mounting Hole: 16.0 ~ 16.3 mm [0.63 ~ 0.64 inches]
Cable Range: 5 ~ 10 mm[0.20 ~ 0.39 inches]
| Product | Cable Gland with Strain Relief M16x1.5 Thread - Cable OD 5~10mm - IP68 - Black |
| Color | Black |
| Material | Nylon 66 |
| Thread | M16xP1.5 |
| Mounting Hole | 16.0 ~ 16.3 mm [0.63 ~ 0.64 inches] |
| Cable Range | 5 ~ 10 mm[0.20 ~ 0.39 inches] |
| Dimensions (mm) | D1 |
| Flammability Rating | UL94V-2 |
| IP68 Rated | Compliant |
| UL | Compliant |
| RoHS | Compliant |
| Package Quantity | 1 |
| Product Weight | 0.2 lbs [0.09kg] |
