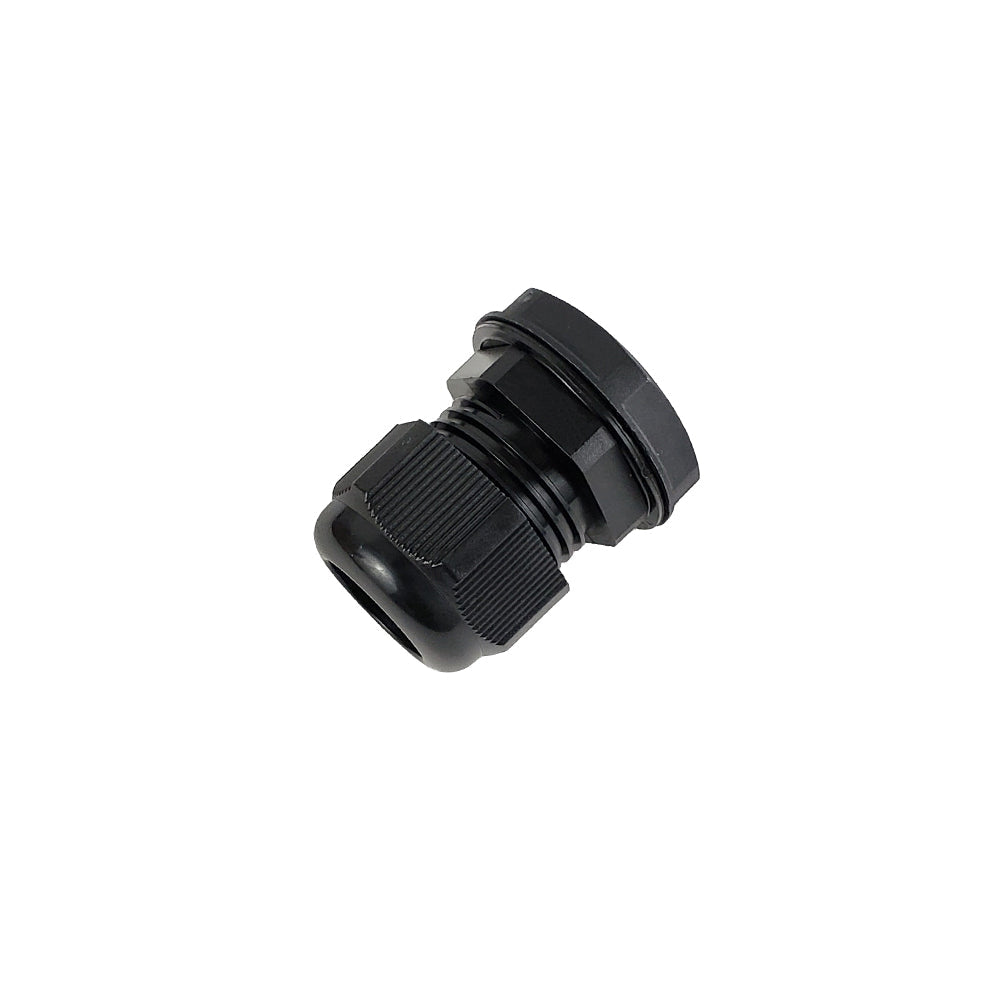

Cable Gland M25x1.5 Thread - Cable OD 11~17mm - IP68 - Black
Click the image to zoom
Cable Gland M25x1.5 Thread - Cable OD 11~17mm - IP68 - Black
$3.44
In stock
— ships in 1 business day
Description
This cable gland has a metric thread pattern of M25xP1.5 and accommodates a cable size of 11 to 17mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.
Specifications
Cable Gland M25x1.5 Thread - Cable OD 11~17mm - IP68 - Black
This cable gland has a metric thread pattern of M25xP1.5 and accommodates a cable size of 11 to 17mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.
Color: Black
Material: Nylon 66
Thread: M25xP1.5
Mounting Hole: 25.0 ~ 25.4 mm[0.98 ~ 1.00 inches]
Cable Range: 11 ~ 17 mm[0.43 ~ 0.67 inches]
| Product | Cable Gland M25x1.5 Thread - Cable OD 11~17mm - IP68 - Black |
| Color | Black |
| Material | Nylon 66 |
| Thread | M25xP1.5 |
| Mounting Hole | 25.0 ~ 25.4 mm[0.98 ~ 1.00 inches] |
| Cable Range | 11 ~ 17 mm[0.43 ~ 0.67 inches] |
| Dimensions (mm) | D1 |
| Flammability Rating | UL94V-2 |
| IP68 Rated | Compliant |
| UL | Compliant |
| RoHS | Compliant |
| Package Quantity | 1 |
| Product Weight | 0.2 lbs [0.09kg] |
