B-Connector Low Voltage Wire Splice Outdoor Blue 250 Pack
Click the image to zoom

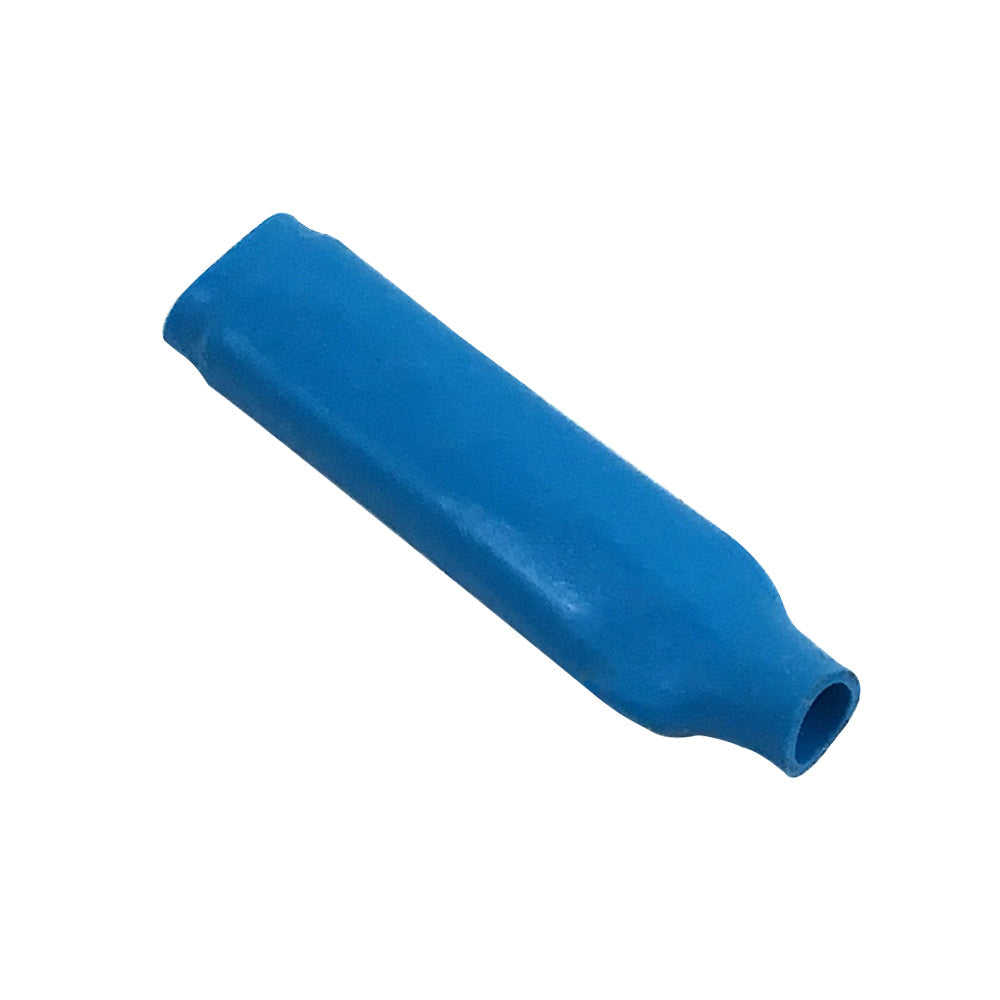

B-Connector Low Voltage Wire Splice Outdoor Blue 250 Pack
$22.75
In stock
— ships in 1 business day
Description
This gel filled B-Connector is used to connect low voltage spliced wire and is ideal for outdoor use.
Specifications
B-Connector Low Voltage Wire Splice Outdoor Blue 250 Pack
This gel filled B-Connector is used to connect low voltage spliced wire and is ideal for outdoor use.
Connection Type: B-Connector
Color: Blue
Gel Filled: Yes
Wire Range: 22-26 AWG Wire
Dielectric: 1000 V
| Product | B-Connector Low Voltage Wire Splice Outdoor Blue 250 Pack |
| Connection Type | B-Connector |
| Color | Blue |
| Gel Filled | Yes |
| Wire Range | 22-26 AWG Wire |
| Dielectric | 1000 V |
| Strength of Joint | 9 lbs |
| Material | Outer Shell: Plastic Type - Heat Shrink TubingMetal Housing: BrassInner Sleeve: Bright Nickel Plated Phosphor-Bronze |
| Wire Capacity | Four #24 AWG (insulated wires)Four #22 AWG (insulated wires)Three #20 AWG (insulated wires)Three #18 AWG (insulated wires)Three #16 AWG (stripped wires) |
| RoHS | Compliant |
| REACH | Compliant |
| Package Quantity | 250 per pack |
