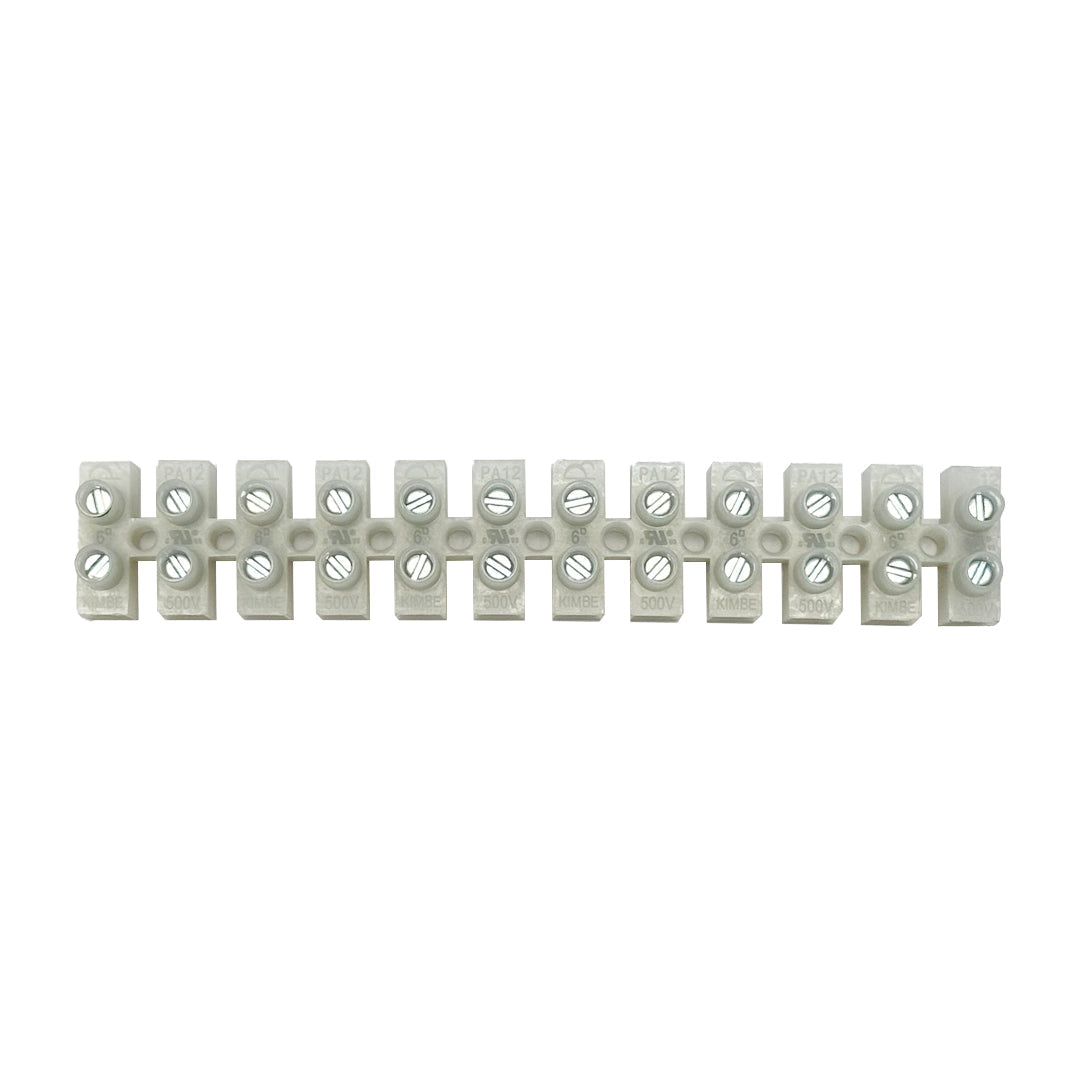

Insulated Terminal Block - 4.2mm - 12 circuit - 22AWG to 10AWG - 20A 600V
$3.88
In stock
— ships in 1 business day
Description
This insulated terminal block has 12 terminals that can house a variety of wire gauges. It is used to join two 22AWG to 10AWG solid or stranded copper wires together. The modular design allows for the block to be cut into smaller sections or stacked end-to-end.
Specifications
Insulated Terminal Block - 4.2mm - 12 circuit - 22AWG to 10AWG - 20A 600V
This insulated terminal block has 12 terminals that can house a variety of wire gauges. It is used to join two 22AWG to 10AWG solid or stranded copper wires together. The modular design allows for the block to be cut into smaller sections or stacked end-to-end.
Color: White
Material: PA66(UL94V-2 flame-retardant)
Connector Chip: Terminal(Brass)Flat plate(stainless steel)
Number of Terminals: 12
Wire Size: 22-10 AWG
| Product | Insulated Terminal Block - 4.2mm - 12 circuit - 22AWG to 10AWG - 20A 600V |
| Color | White |
| Material | PA66(UL94V-2 flame-retardant) |
| Connector Chip | Terminal(Brass)Flat plate(stainless steel) |
| Number of Terminals | 12 |
| Wire Size | 22-10 AWG |
| Voltage Rating | CQC/VDE-500VUL-600V |
| Overall Length | 141mm±1.0mm |
| Terminal Hole Size | 4.2mm±0.1mm |
| Fix Screw size | ΦA 3.95mm |
| Amperage | VDE-41AUL-20A |
| CQC | Compliant |
| VDE | Compliant |
| c(UL)us | Compliant |
| Package Quantity | 1 |
| Product Weight | 0.11 lbs [0.04 kg] |
