IEC C19 to IEC C20 Power Cable -12AWG (20A 250V) - SJT Jacke
Click the image to zoom

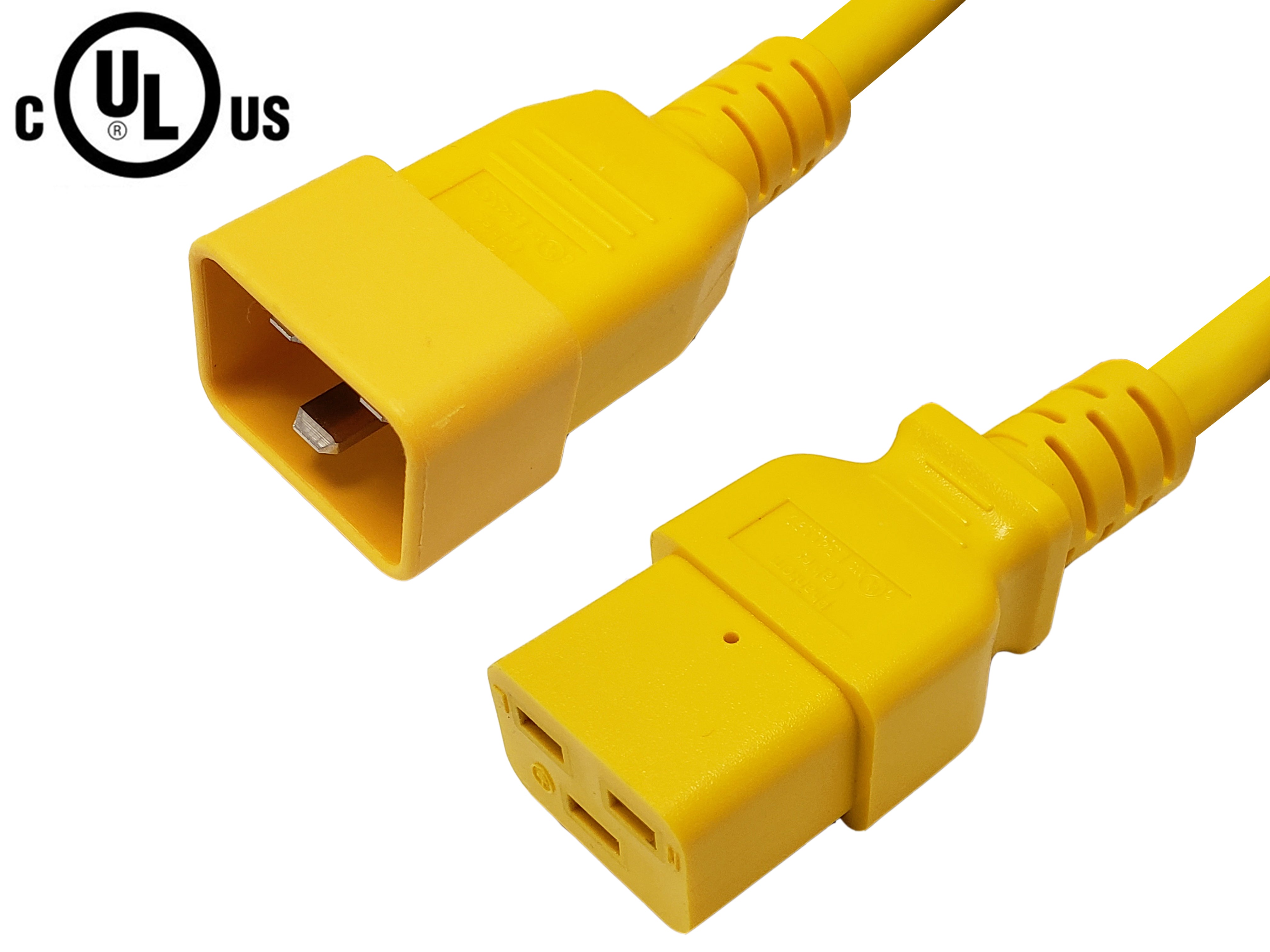

IEC C19 to IEC C20 Power Cable -12AWG (20A 250V) - SJT Jacket
$5.94
In stock
— ships in 1 business day
Description

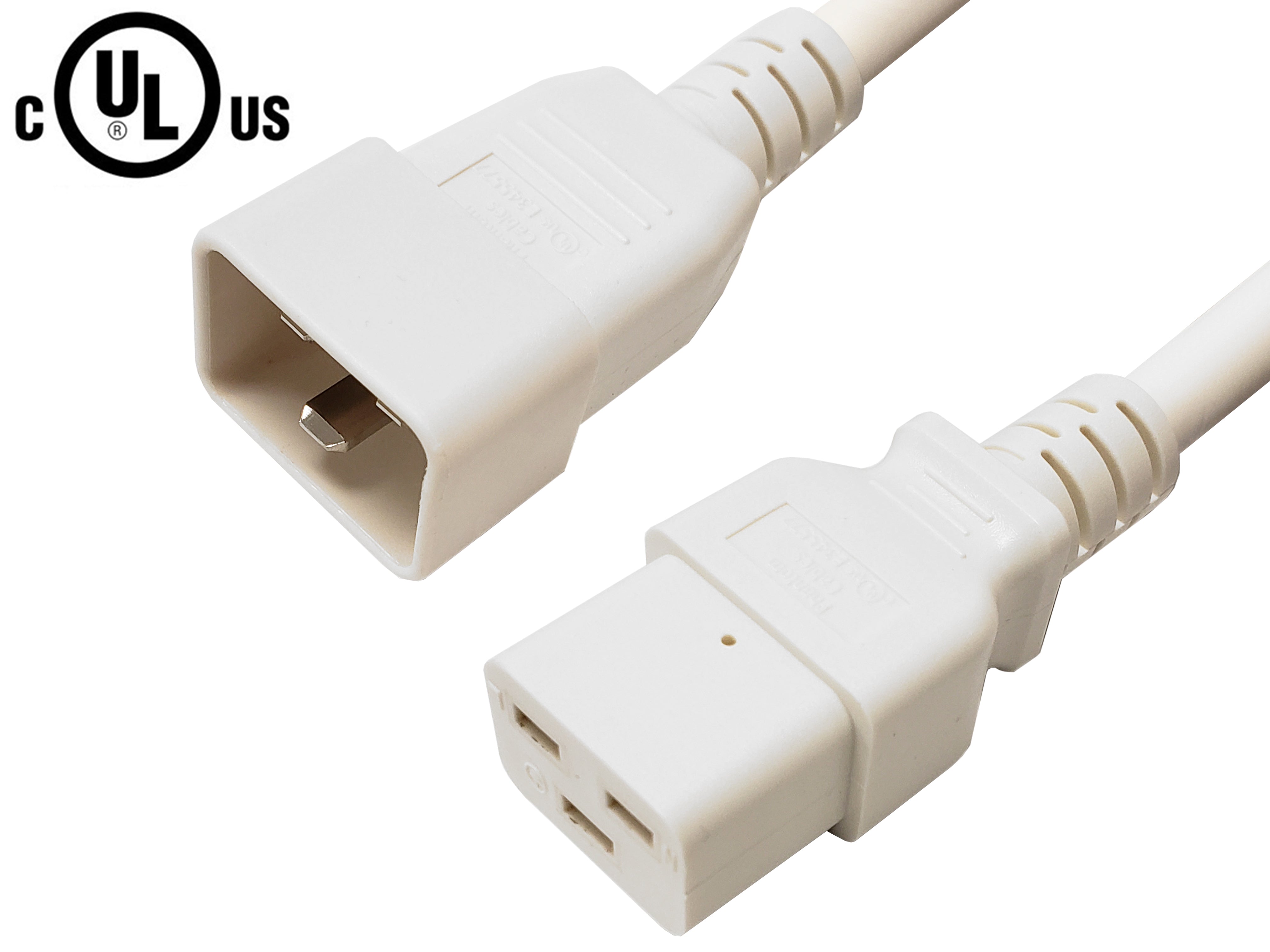

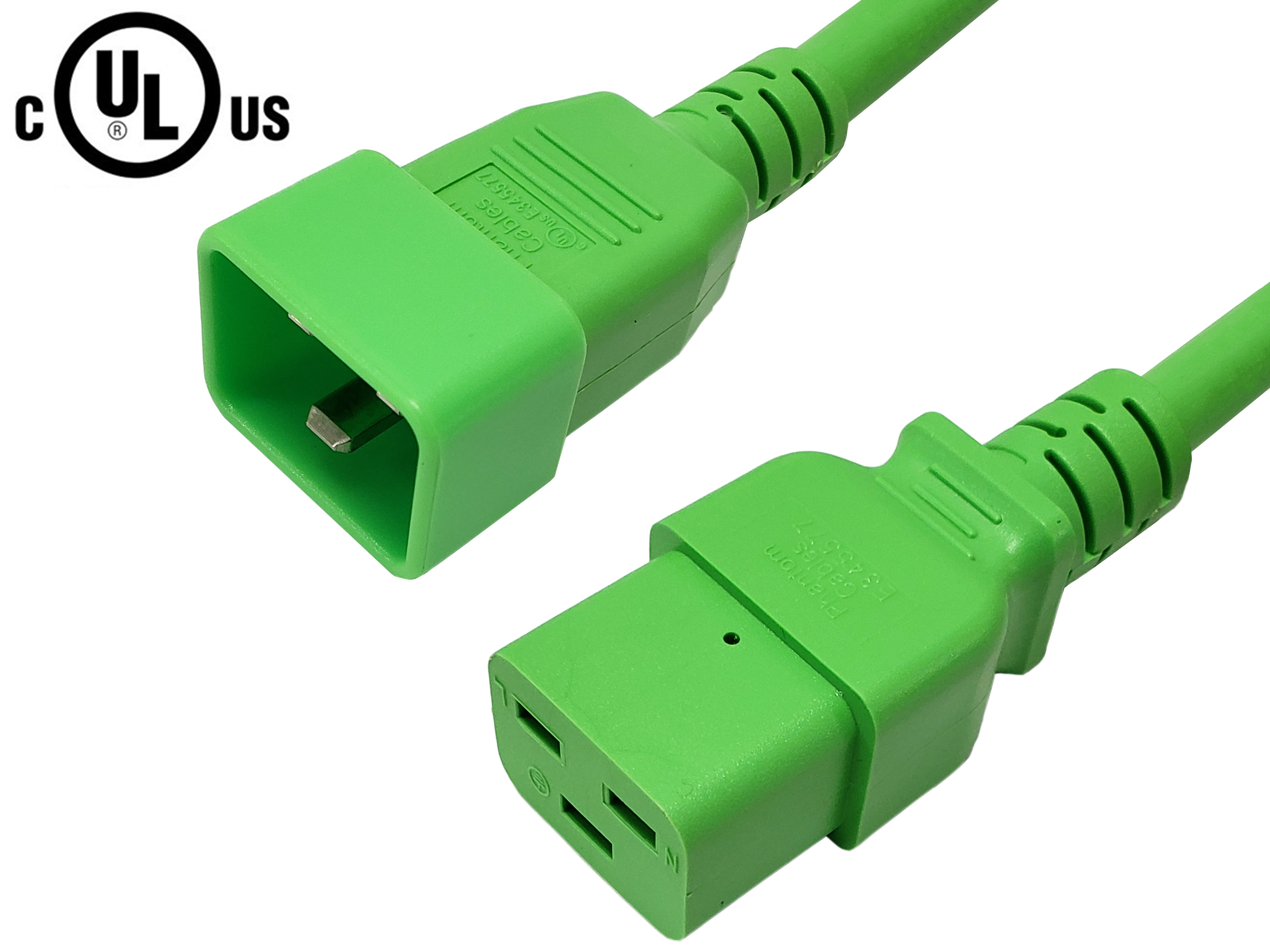

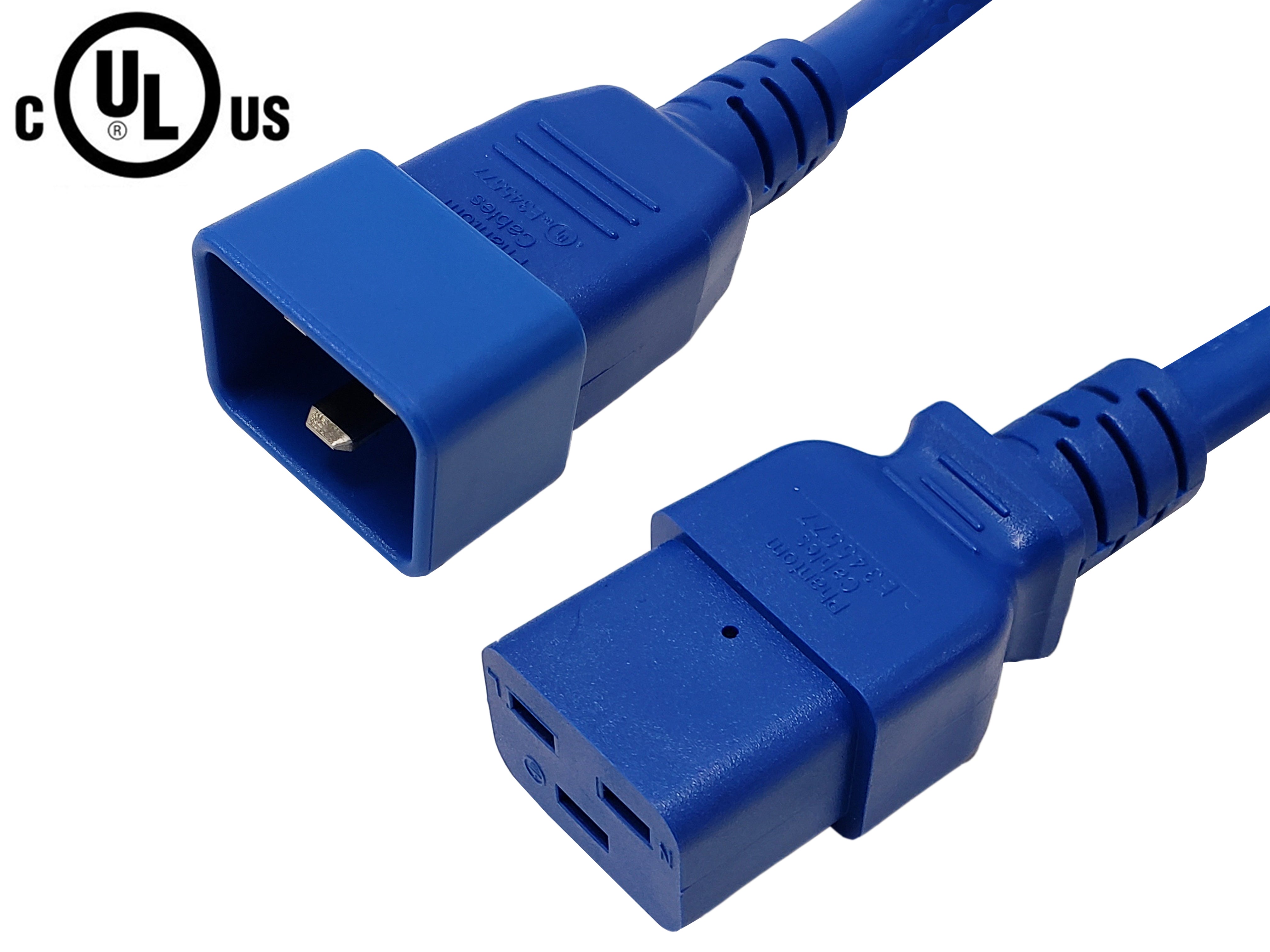

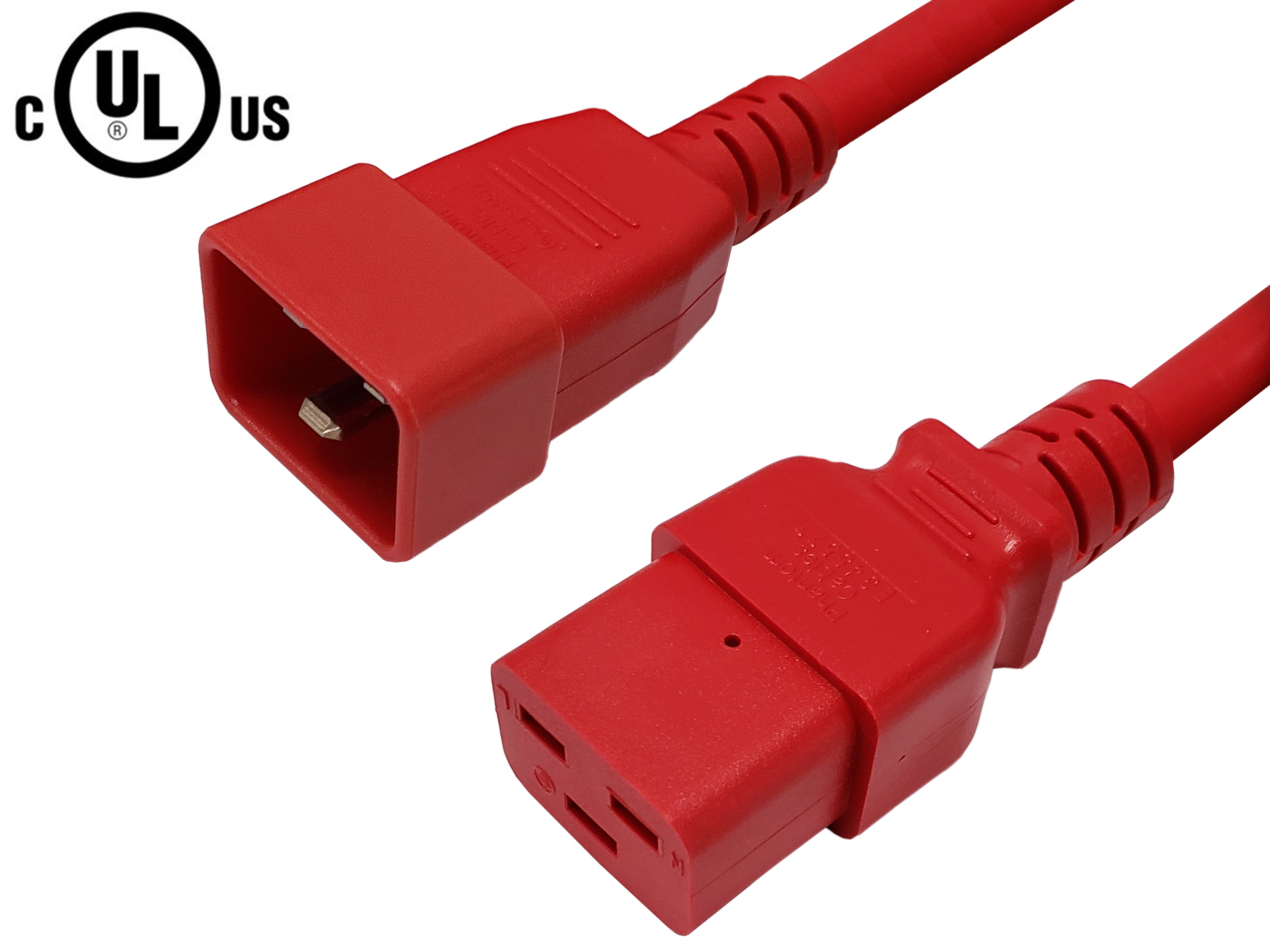

This power cord consists of a C20 male on one end and a C19 female on the other end. It is typically used to connect a server to a PDU in a data center environment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. Premium quality connectors are used to ensure a secure fit. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Specifications
IEC C19 to IEC C20 Power Cable -12AWG (20A 250V) - SJT Jacket
This power cord consists of a C20 male on one end and a C19 female on the other end. It is typically used to connect a server to a PDU in a data center environment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
Color: Black / Blue / Green / Red / White / Yellow
Number of Conductors: 3 Conductor
Wire Gauge: 12 AWG
Jacket: Heavy duty SJT
Jacket Material: 100% Virgin PVC - Polyvinyl Chloride
| Product | IEC C19 to IEC C20 Power Cable -12AWG (20A 250V) - SJT Jacket |
| Color | Black / Blue / Green / Red / White / Yellow |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 12 AWG |
| Jacket | Heavy duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -20 deg C to 105 deg C |

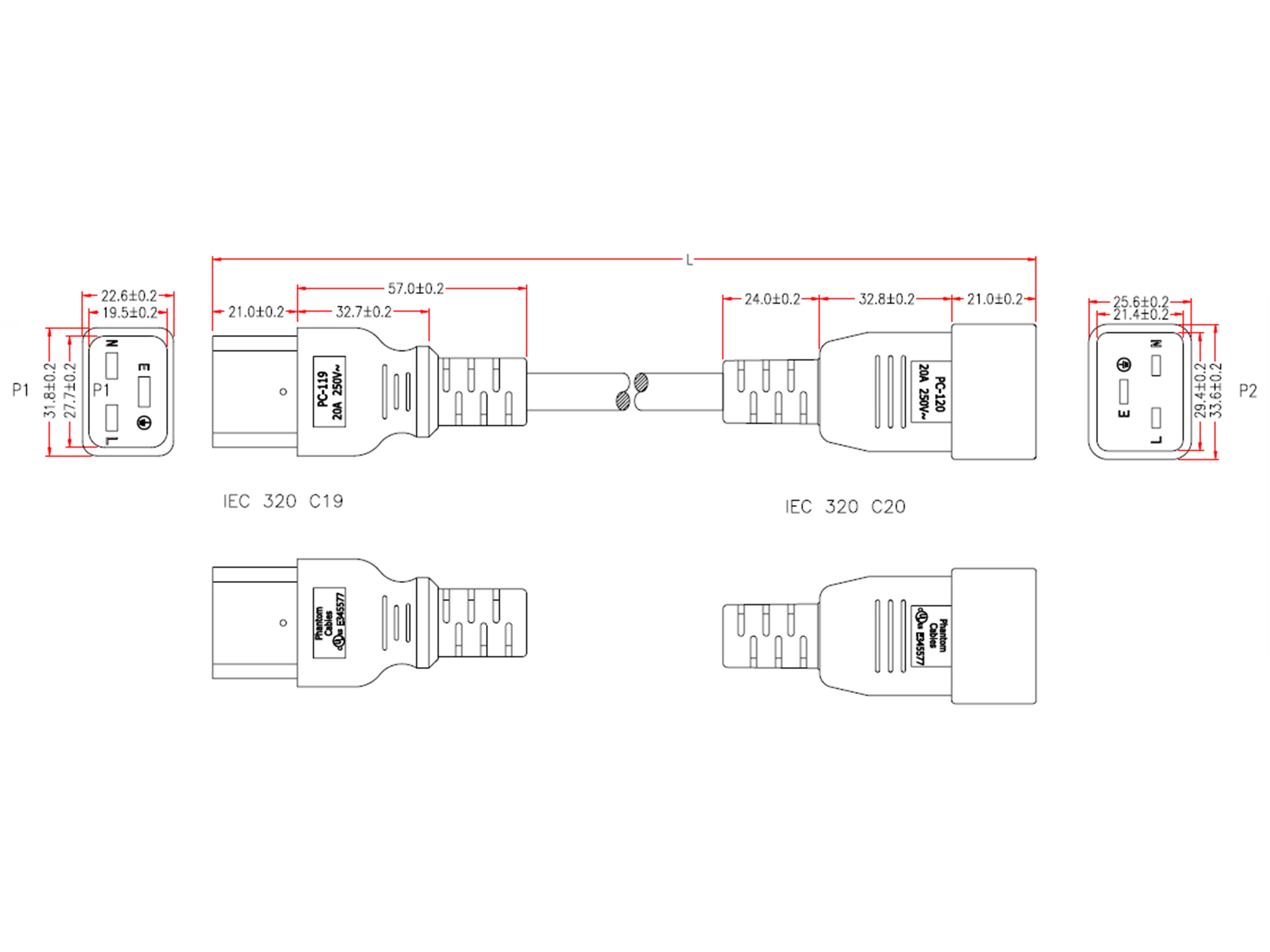

| Connector A | IEC 60320 C20 |
| Connector B | IEC 60320 C19 |
| Power Rating | 20 Amp / 250 Volt |
| C20 | c(UL)us |
| C19 | c(UL)us |
| Cable | c(UL)us |
| ISO | ISO 9001:2015, ISO 14000 |
