L6-20P to C15 Power Cable - 14AWG - SJT Jacket
Click the image to zoom
L6-20P to C15 Power Cable - 14AWG - SJT Jacket
$19.88
In stock
— ships in 1 business day
Description

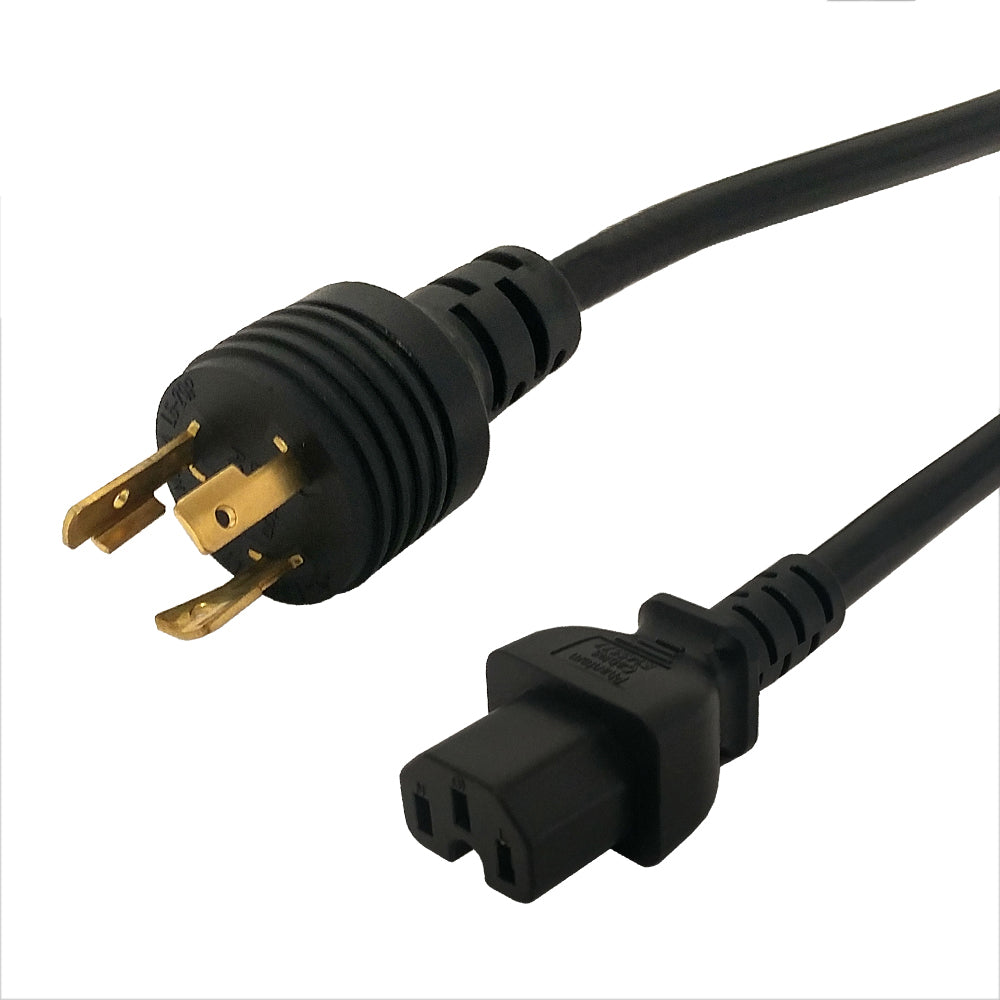

This power cord consists of a L6-20P male on one end and a C15 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. Premium quality connectors are used to ensure a secure fit. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Specifications
L6-20P to C15 Power Cable - 14AWG - SJT Jacket
This power cord consists of a L6-20P male on one end and a C15 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
Color: Black
Number of Conductors: 3 Conductor
Wire Gauge: 14 AWG
Jacket: Heavy duty SJT
Jacket Material: 100% Virgin PVC - Polyvinyl Chloride
| Product | L6-20P to C15 Power Cable - 14AWG - SJT Jacket |
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 14 AWG |
| Jacket | Heavy duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -20 deg C to 105 deg C |

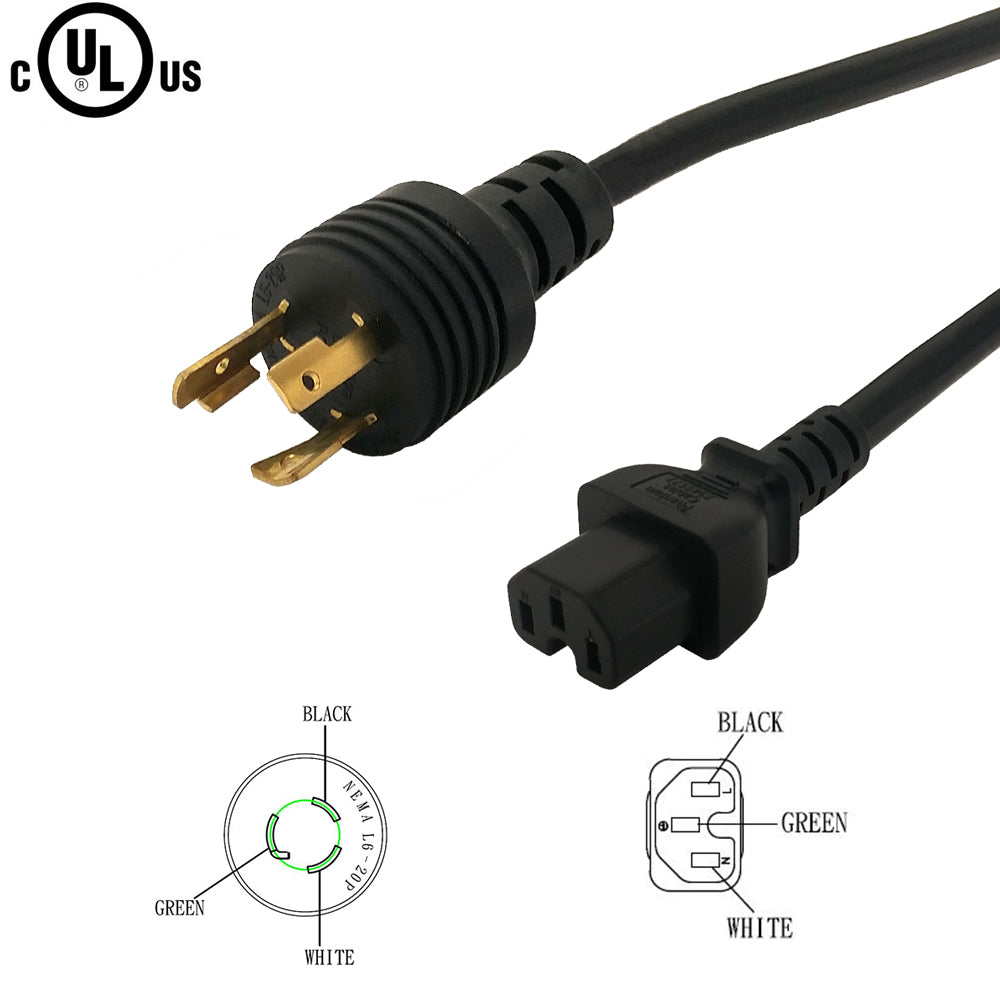

| Connector A | NEMA L6-20P |
| Connector B | IEC C15 |
| Power Rating | 15 Amp / 250 Volt |
| 6-20P | c(UL)us |
| C15 | c(UL)us |
| Cable | c(UL)us |
| ISO | ISO 9001:2015, ISO 14000 |
