5-15P 45 Degree to 5-15R Triple Tap Power Cable - 16AWG - SJ
Click the image to zoom
5-15P 45 Degree to 5-15R Triple Tap Power Cable - 16AWG - SJT - 13A/125V
$12.63
In stock
— ships in 1 business day
Description

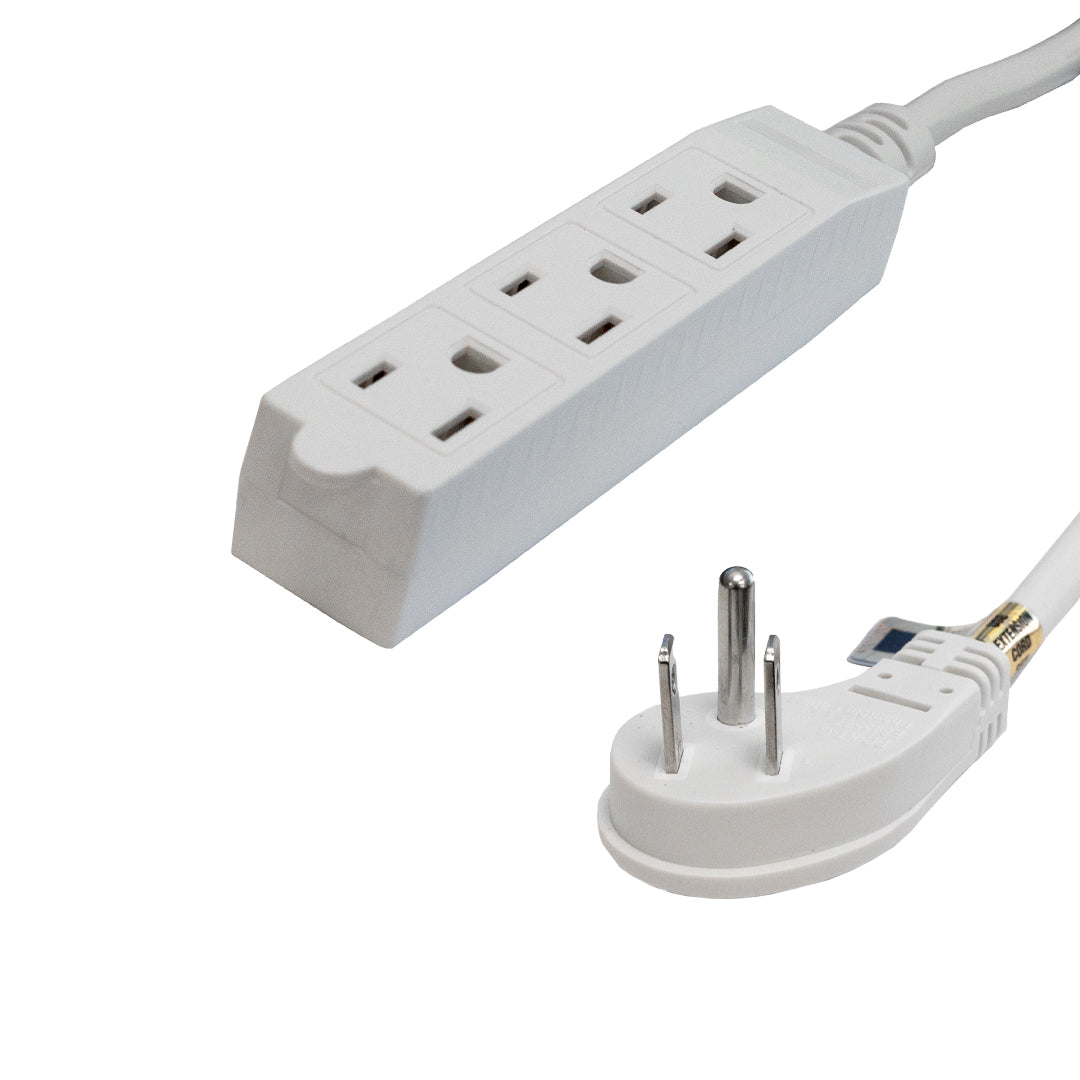

This power cord consists of a 45 degree 5-15P male on one end and a power tap that consists of three 5-15R female on the other end. It is typically used as a power extension cord. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. Premium quality connectors are used to ensure a secure fit. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Specifications
5-15P 45 Degree to 5-15R Triple Tap Power Cable - 16AWG - SJT - 13A/125V
This power cord consists of a 45 degree 5-15P male on one end and a power tap that consists of three 5-15R female on the other end. It is typically used as a power extension cord. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
Color: Black / White
Number of Conductors: 3 Conductor
Wire Gauge: 16 AWG
Jacket: Heavy Duty SJT
Jacket Material: 100% Virgin PVC - Polyvinyl Chloride
| Product | 5-15P 45 Degree to 5-15R Triple Tap Power Cable - 16AWG - SJT - 13A/125V |
| Color | Black / White |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 16 AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -20°C to 105°C |
| Connector A | 1 - NEMA 5-15P (45 Degree Angle) |
| Connector B | 3 - NEMA 5-15R (Power Tap) |
| Power Rating | 13 Amp / 125 Volt |
| 5-15P | c(UL)us |
| 5-15R | c(UL)us |
| Cable | c(UL)us |
| ISO | ISO 9001:2015, ISO 14000 |
