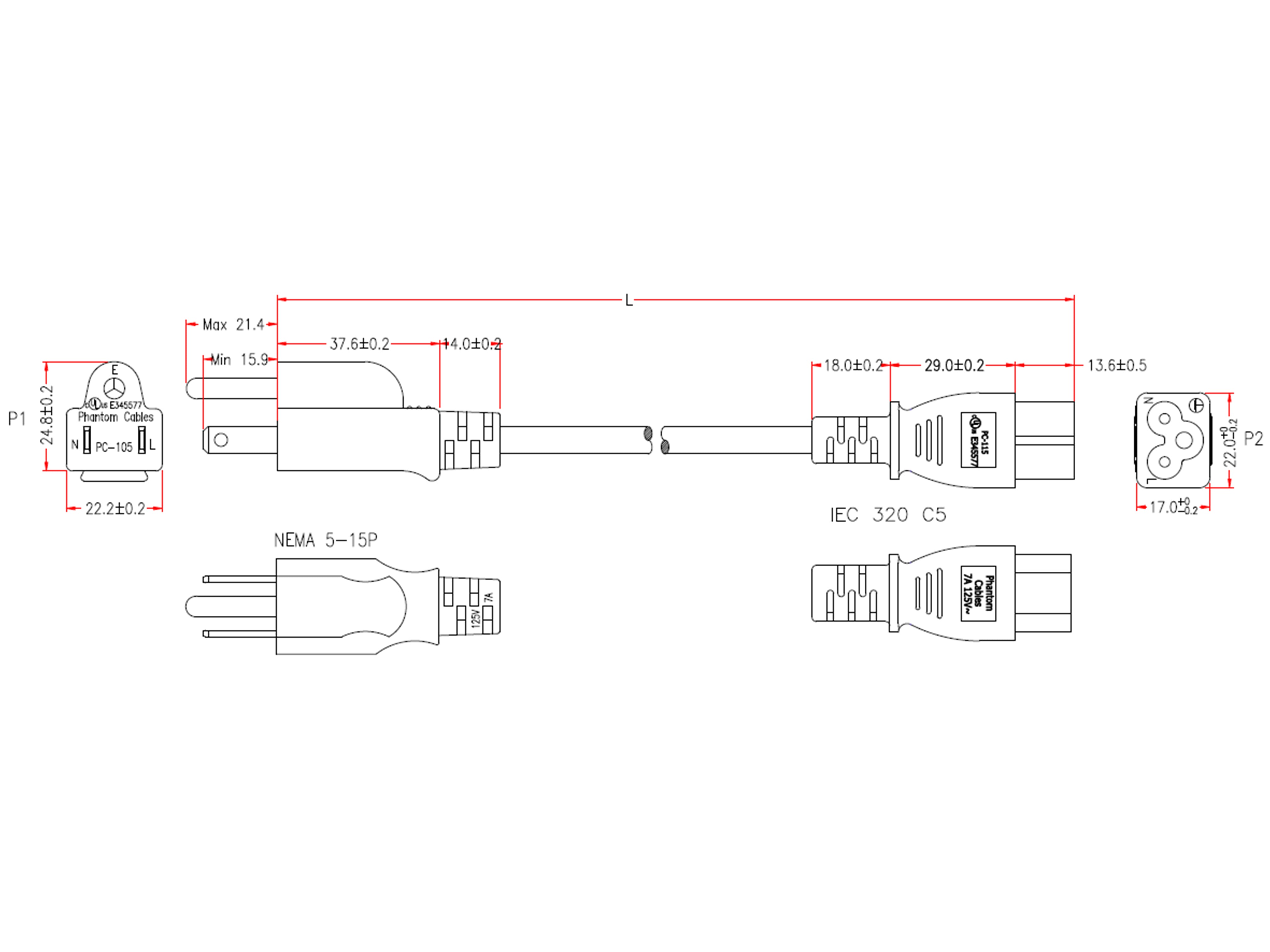

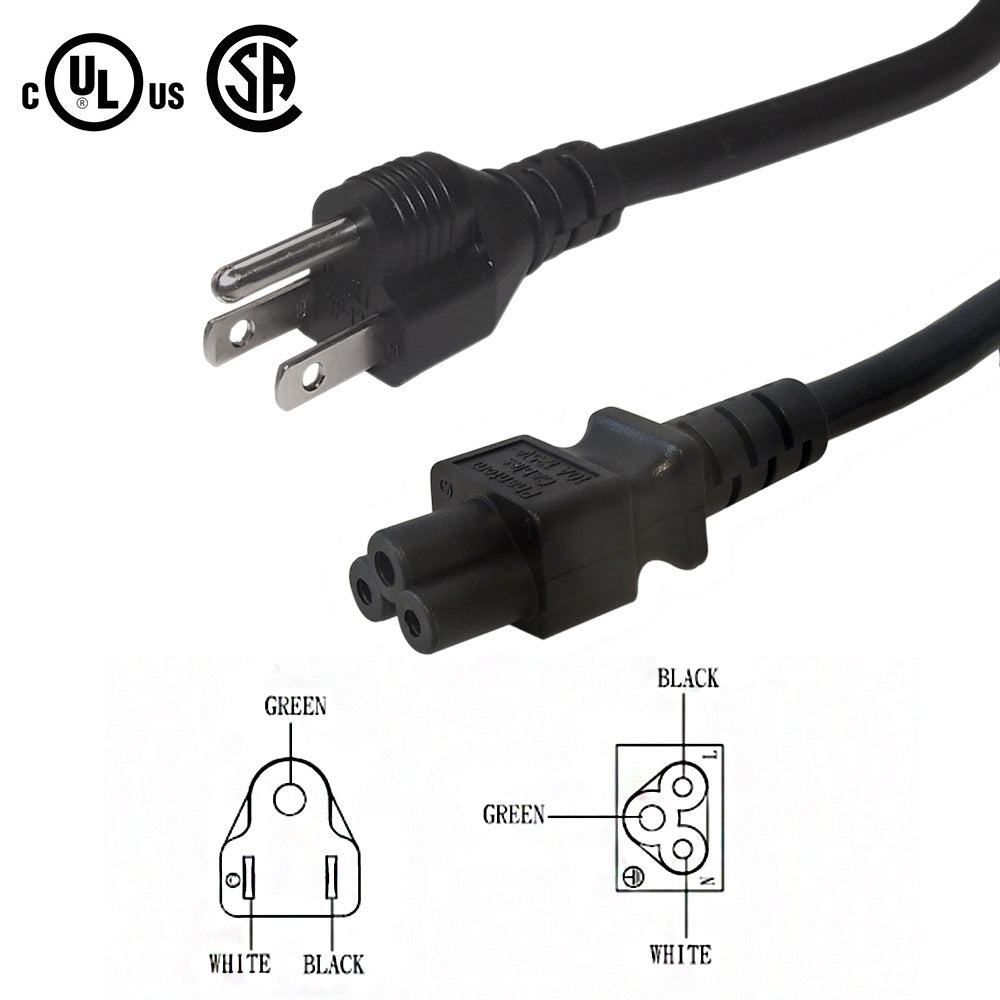

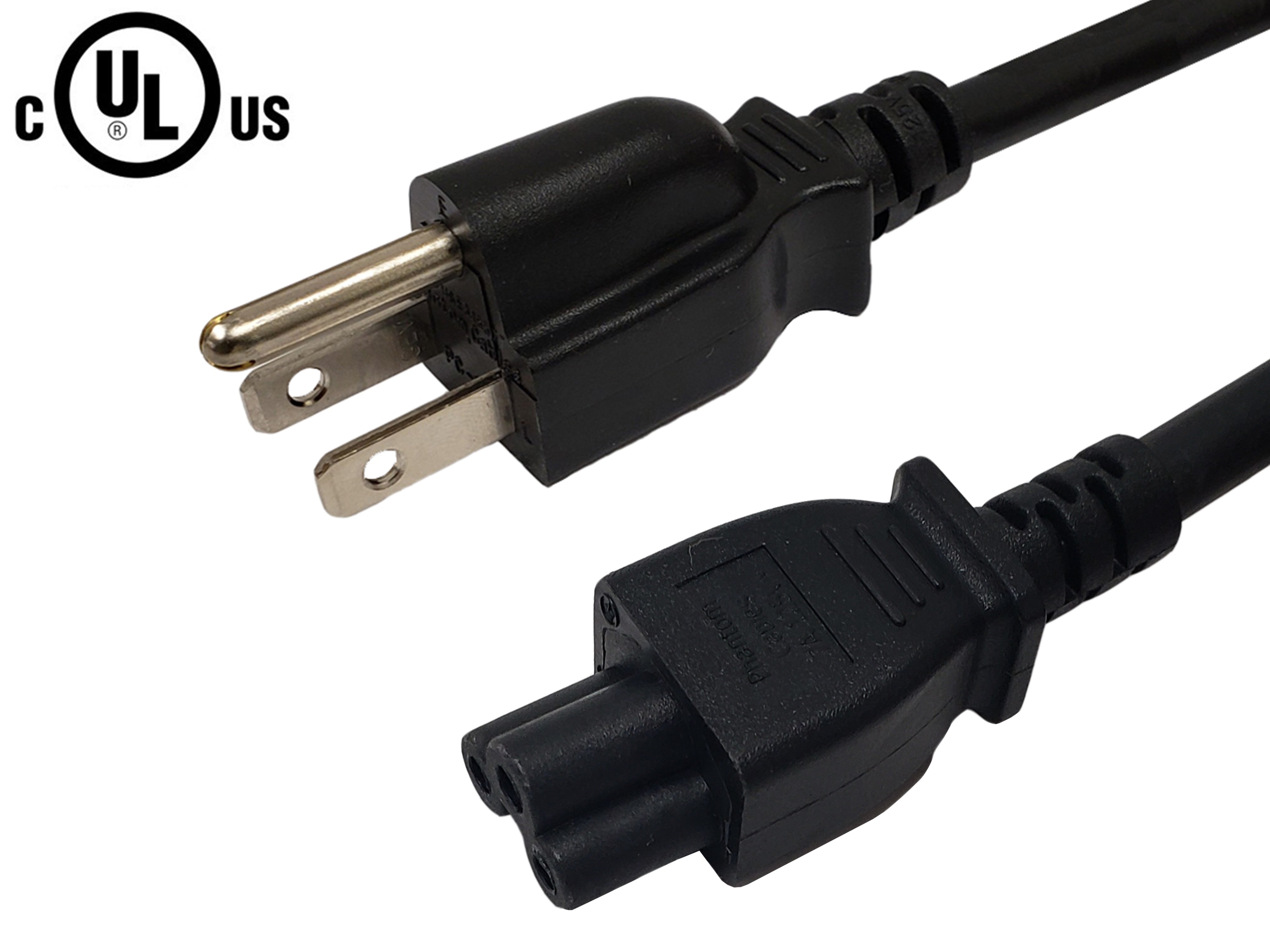

5-15P to C5 (Three Prong) Power Cable - SJT Jacket
Click the image to zoom
5-15P to C5 (Three Prong) Power Cable - SJT Jacket
$3.63
In stock
— ships in 1 business day
Description
This power cord consists of a 5-15P male on one end and a C5 female on the other end. It is typically used to connect a wall outlet to a AC/DC power supply or directly to equipment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. Premium quality connectors are used to ensure a secure fit. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Specifications
5-15P to C5 (Three Prong) Power Cable - SJT Jacket
This power cord consists of a 5-15P male on one end and a C5 female on the other end. It is typically used to connect a wall outlet to a AC/DC power supply or directly to equipment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
Color: Black
Number of Conductors: 3 Conductor
Wire Gauge: 18 AWG
Jacket: Heavy duty SJT
Jacket Material: 100% Virgin PVC - Polyvinyl Chloride
| Product | 5-15P to C5 (Three Prong) Power Cable - SJT Jacket |
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 18 AWG |
| Jacket | Heavy duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Conductor Material | 100% bare copper |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector A | NEMA 5-15P (3-prong) |
| Connector B | IEC 60320 C5 |
| Power Rating | 7 Amp / 125 Volt |
| 5-15P | c(UL)us |
| C5 | c(UL)us |
| Cable | c(UL)us |
