NEMA 5-20P to IEC C19 Power Cable - 12AWG (20A 125V) - SJT J
Click the image to zoom
NEMA 5-20P to IEC C19 Power Cable - 12AWG (20A 125V) - SJT Jacket
$10.56
In stock
— ships in 1 business day
Description

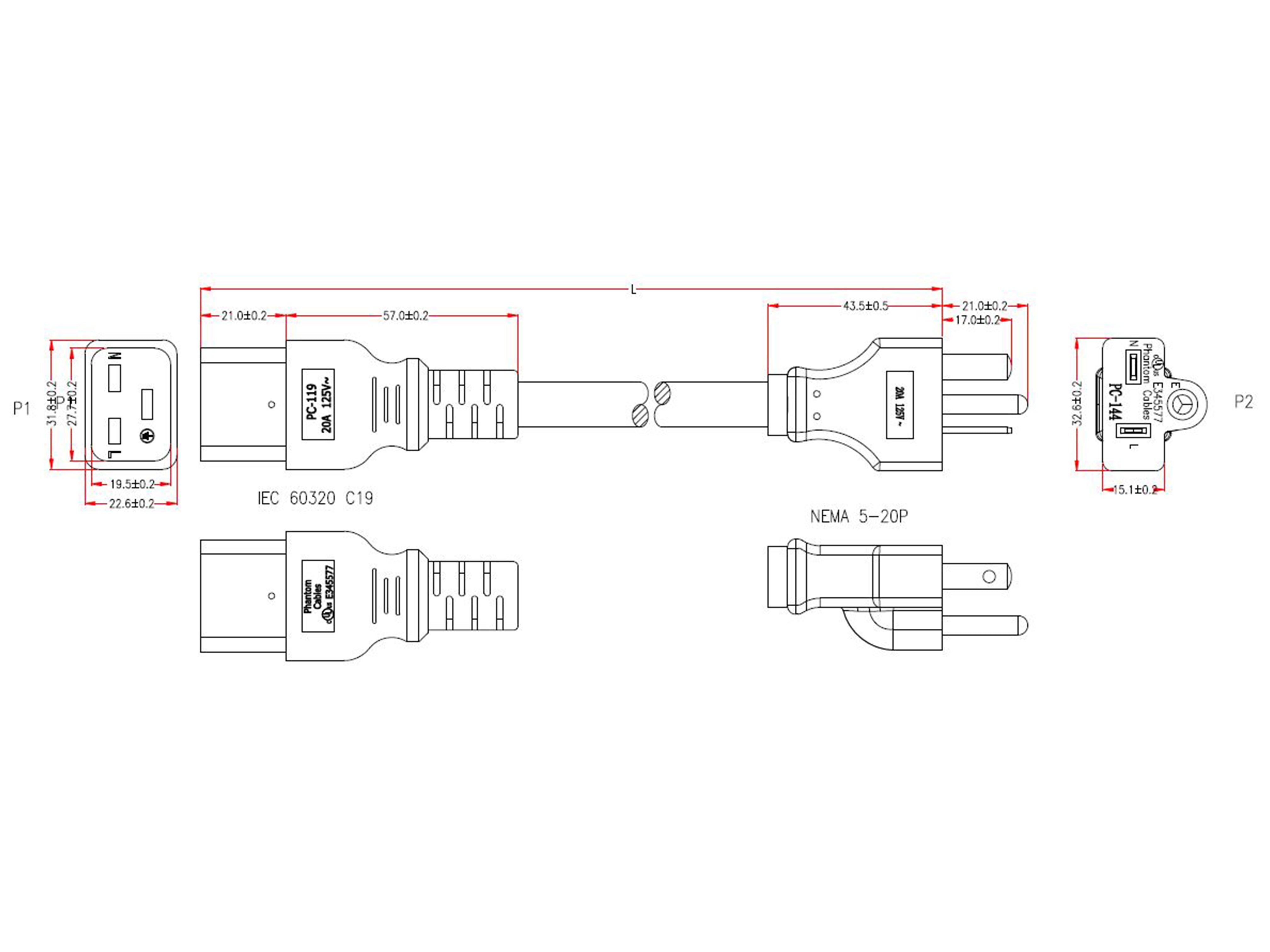

This power cord consists of a 5-20P male on one end and a C19 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. Premium quality connectors are used to ensure a secure fit. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Specifications
NEMA 5-20P to IEC C19 Power Cable - 12AWG (20A 125V) - SJT Jacket
This power cord consists of a 5-20P male on one end and a C19 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
Color: Black
Number of Conductors: 3 Conductor
Wire Gauge: 12 AWG
Jacket: Heavy duty SJT
Jacket Material: 100% Virgin PVC - Polyvinyl Chloride
| Product | NEMA 5-20P to IEC C19 Power Cable - 12AWG (20A 125V) - SJT Jacket |
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 12 AWG |
| Jacket | Heavy duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Conductor Material | 100% bare copper |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector A | NEMA 5-20P |
| Connector B | IEC 60320 C19 |
| Power Rating | 20 Amp / 125 Volt |
| 5-20P | c(UL)us |
| C19 | c(UL)us |
| Cable | c(UL)us |
