NEMA 1-15P Down Angle to IEC C7 Non-Polarized Right Angle Po
Click the image to zoom

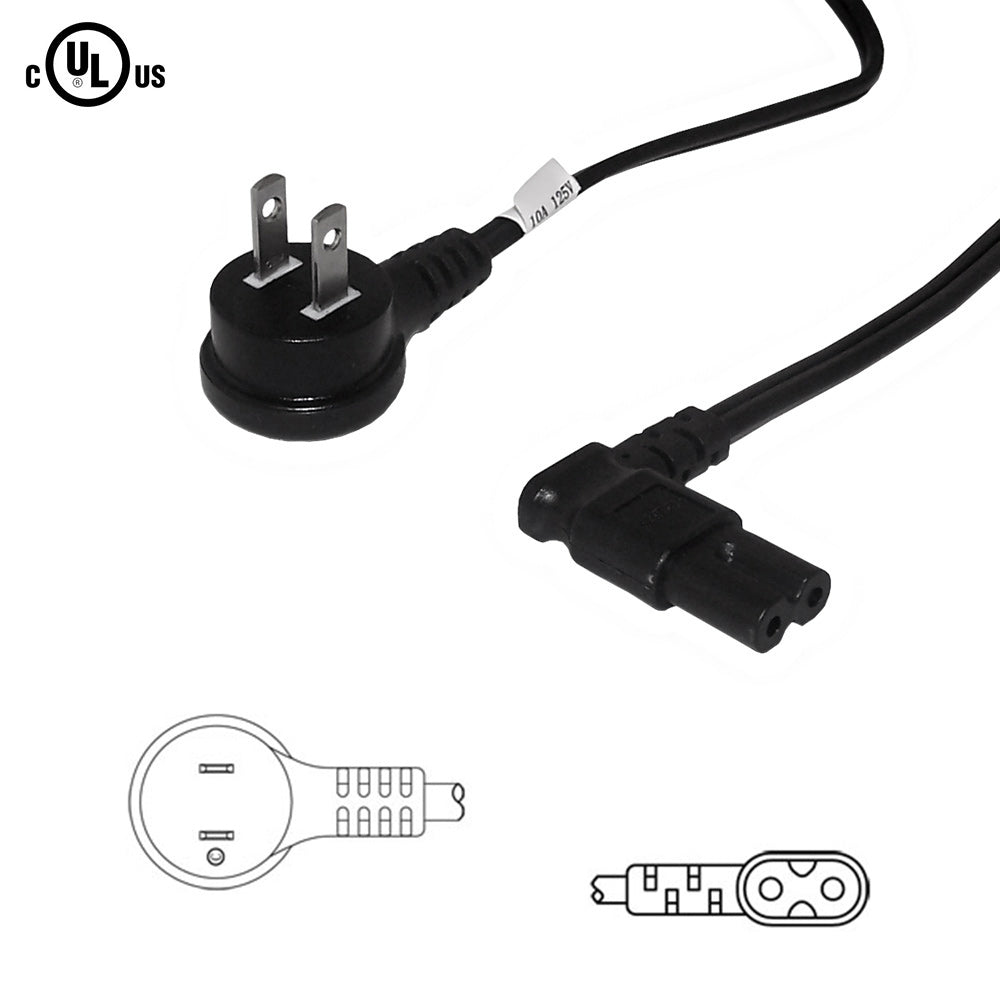

NEMA 1-15P Down Angle to IEC C7 Non-Polarized Right Angle Power Cable - 18AWG - SPT-2
$3.19
In stock
— ships in 1 business day
Description
This power cord consists of a 1-15P down angle male on one end and a C7 right angle female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. Premium quality connectors are used to ensure a secure fit. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Specifications
NEMA 1-15P Down Angle to IEC C7 Non-Polarized Right Angle Power Cable - 18AWG - SPT-2
This power cord consists of a 1-15P down angle male on one end and a C7 right angle female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
Color: Black
Number of Conductors: 2 Conductor
Wire Gauge: 18 AWG
Jacket: Heavy duty SJT
Jacket Material: 100% Virgin PVC - Polyvinyl Chloride
| Product | NEMA 1-15P Down Angle to IEC C7 Non-Polarized Right Angle Power Cable - 18AWG - SPT-2 |
| Color | Black |
| Number of Conductors | 2 Conductor |
| Wire Gauge | 18 AWG |
| Jacket | Heavy duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector A | NEMA 1-15P (2-prong) |
| Connector B | IEC 60320 C7 |
| Power Rating | 7 Amp / 125 Volt |
| 1-15P | c(UL)us |
| C7 | c(UL)us |
| Cable | c(UL)us, CSA |
| ISO | ISO 9001:2015, ISO 14000 |
