12ft IEC C19 Right Angle to IEC C20 Power Cable - 12AWG (20A
Click the image to zoom

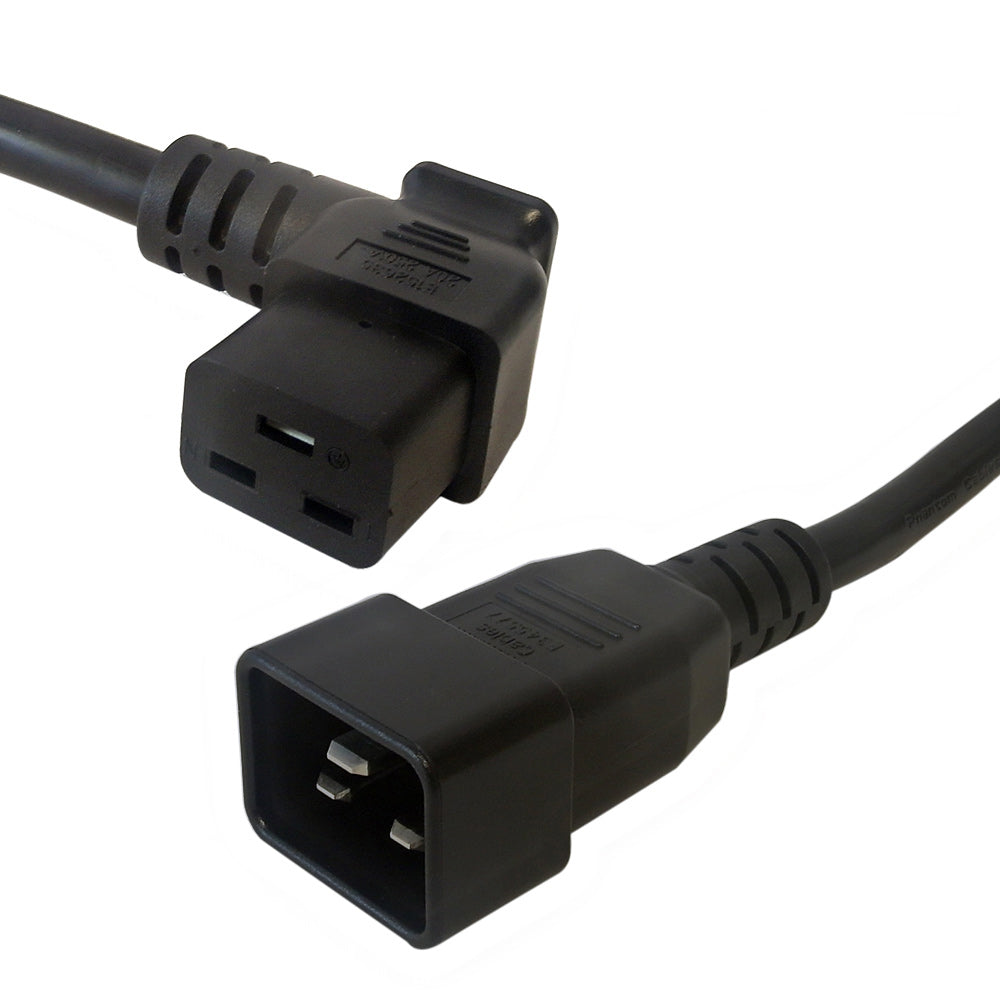

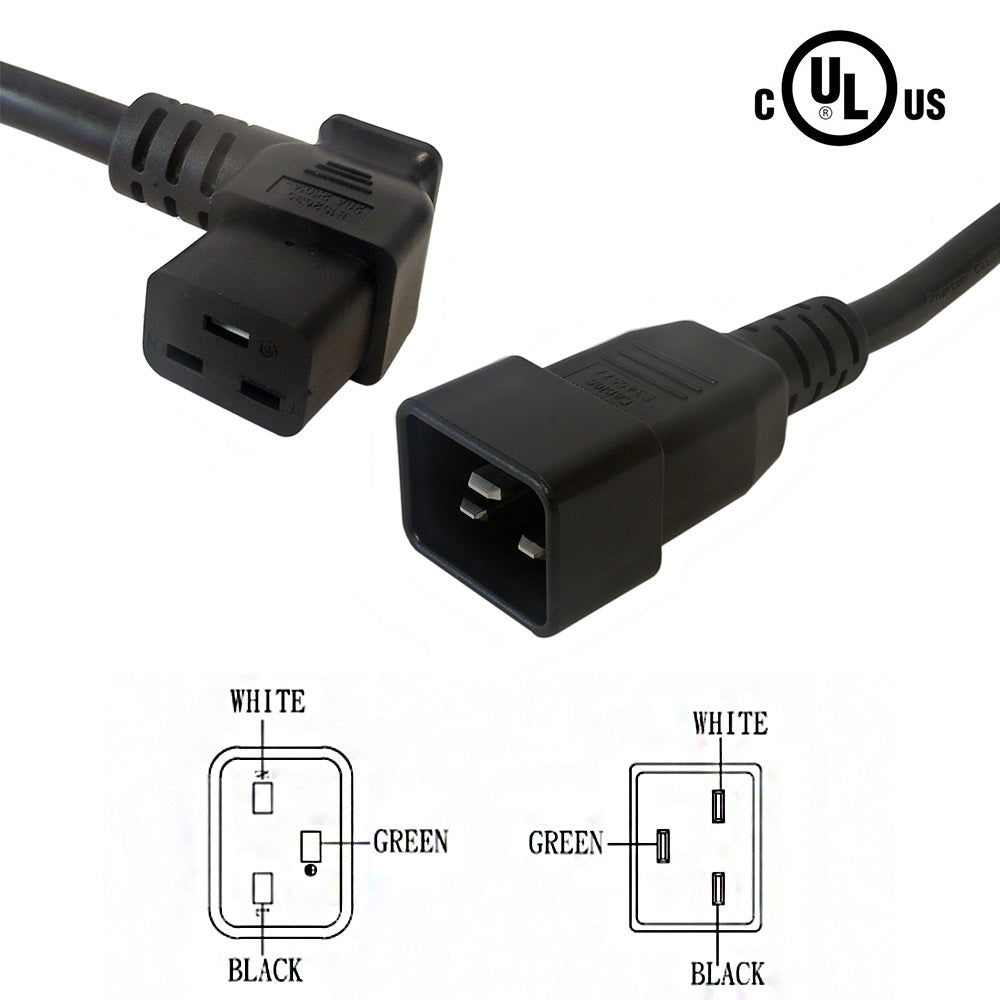

12ft IEC C19 Right Angle to IEC C20 Power Cable - 12AWG (20A 250V)
$32.31
In stock
— ships in 1 business day
Description
This power cord consists of a C20 male on one end and a C19 right angle female on the other end. It is typically used to connect a server to a PDU in a data center environment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. Premium quality connectors are used to ensure a secure fit. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Specifications
12ft IEC C19 Right Angle to IEC C20 Power Cable - 12AWG (20A 250V)
This power cord consists of a C20 male on one end and a C19 right angle female on the other end. It is typically used to connect a server to a PDU in a data center environment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
Cable Length: 12 foot [3.6m]
Color: Black
Number of Conductors: 3 Conductor
Wire Gauge: 12 AWG
Jacket: Heavy duty
| Product | 12ft IEC C19 Right Angle to IEC C20 Power Cable - 12AWG (20A 250V) |
| Cable Length | 12 foot [3.6m] |
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 12 AWG |
| Jacket | Heavy duty |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Conductor Material | 100% bare copper |
| Temperature Rating | -20℃ to 105℃ |
| Connector A | IEC 60320 C19 Right Angle |
| Connector B | IEC 60320 C20 |
| Power Rating | 20 Amp / 250 Volt |
| C19 | c(UL)us |
| C20 | c(UL)us |
