IEC C20 to 2x IEC C13 Power Splitter Cable - SJT
Click the image to zoom
IEC C20 to 2x IEC C13 Power Splitter Cable - SJT
$13.19
In stock
— ships in 1 business day
Description

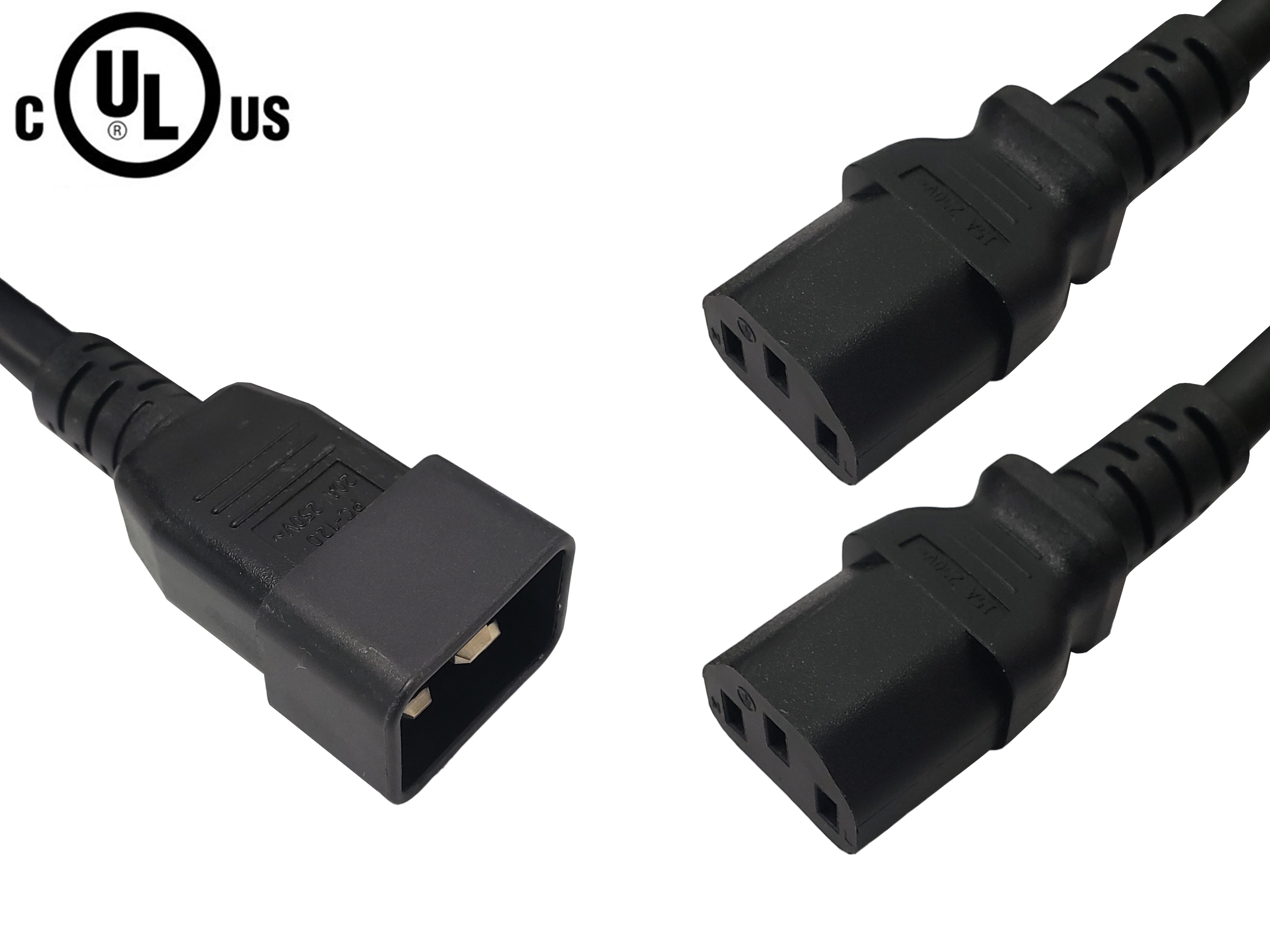

This power cord consists of a C20 male on one end and two C13 females on the other end. It is typically used on devices with multiple power supplies sharing one receptacle. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Specifications
IEC C20 to 2x IEC C13 Power Splitter Cable - SJT
This power cord consists of a C20 male on one end and two C13 females on the other end. It is typically used on devices with multiple power supplies sharing one receptacle. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds.
Color: Black
Number of Conductors: 3 Conductor
Wire Gauge: 12AWG/14AWG
Jacket: Heavy Duty SJT
Jacket Material: 100% Virgin PVC - Polyvinyl Chloride
| Product | IEC C20 to 2x IEC C13 Power Splitter Cable - SJT |
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 12AWG/14AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Conductor Material | 100% bare copper |
| Temperature Rating | -20 deg C to 105 deg C |
| Split Length | 610mm [2ft] |
| Connector A | IEC 60320 C20 |
| Connector B | IEC 60320 C13 |
| Power Rating | 20 Amp / 250 Volt (12AWG)15 Amp / 250 Volt (14AWG) |
| C13 | c(UL)us |
| C20 | c(UL)us |
