NEMA L6-30P to 2x NEMA L6-20R Splitter - SJT
Click the image to zoom
NEMA L6-30P to 2x NEMA L6-20R Splitter - SJT
$34.06
In stock
— ships in 1 business day
Description

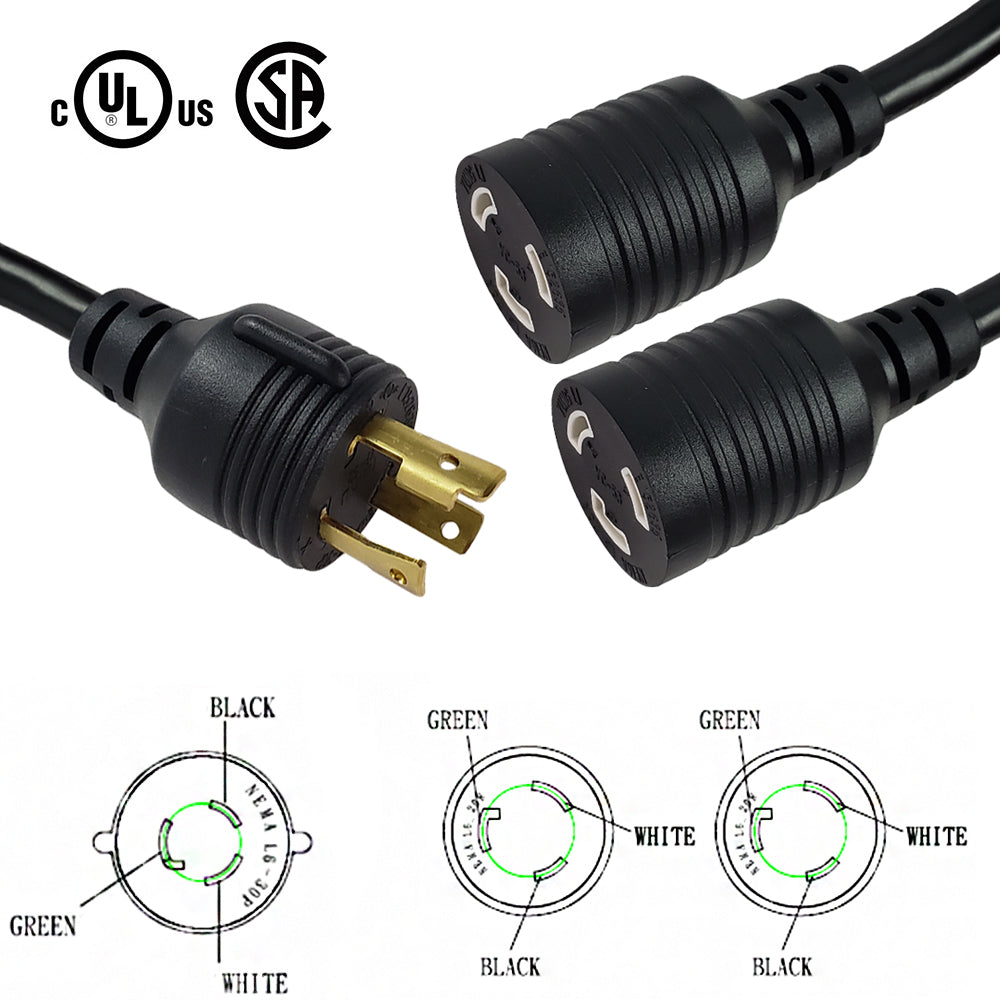

This power cord consists of a L6-30P male on one end and two L6-20R females on the other end. It is typically used on devices with multiple power supplies sharing one receptacle. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Specifications
NEMA L6-30P to 2x NEMA L6-20R Splitter - SJT
This power cord consists of a L6-30P male on one end and two L6-20R females on the other end. It is typically used on devices with multiple power supplies sharing one receptacle. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds.
Cable Length: 2 foot [0.6m]
Color: Black
Number of Conductors: 3 Conductor
Wire Gauge: 10AWG (L6-30P) / 12AWG (L6-20R)
Jacket: Heavy Duty SJT
| Product | NEMA L6-30P to 2x NEMA L6-20R Splitter - SJT |
| Cable Length | 2 foot [0.6m] |
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 10AWG (L6-30P) / 12AWG (L6-20R) |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -20℃ to 105℃ |
| Connector A | NEMA L6-30P |
| Connector B | NEMA L6-20R |
| Power Rating | 20 Amp / 250 Volt |
| L6-30P | c(UL)us, CSA |
| L6-30R | c(UL)us, CSA |
| Cable | c(UL)us, CSA |
