Relay Rack 29U (56 inch) - Knock Down Style
Click the image to zoom
Relay Rack 29U (56 inch) - Knock Down Style
$144.25
In stock
— ships in 1 business day
Description

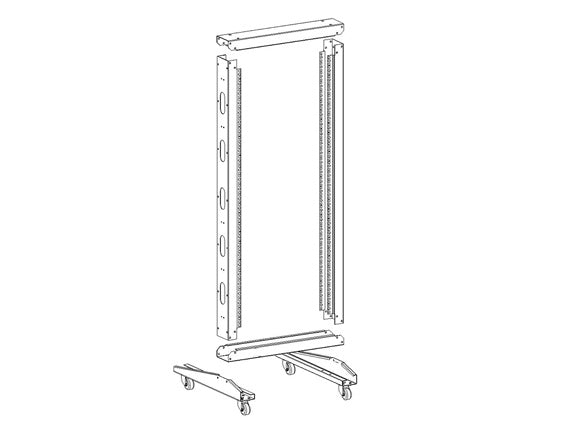

This 2-post relay rack is 19 inches wide, and 29U in height. It is typically used to mount networking and audio/video rack mountable equipment. Shipped knockdown in a flat-pack for easy handling and shipping.
Specifications
Relay Rack 29U (56 inch) - Knock Down Style
This 2-post relay rack is 19 inches wide, and 29U in height. It is typically used to mount networking and audio/video rack mountable equipment. Shipped knockdown in a flat-pack for easy handling and shipping.
Color: Black - Powder Coated
Material: SPCC Cold Rolled Steel
Loading Capacity: Maximum 300kg
Mounting Rails: 2 x 19"-Mounting Rail Posts (square hole knockouts on both sides)
Mounting Rail Thickness: 1.9mm
| Product | Relay Rack 29U (56 inch) - Knock Down Style |
| Color | Black - Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Loading Capacity | Maximum 300kg |
| Mounting Rails | 2 x 19"-Mounting Rail Posts (square hole knockouts on both sides) |
| Mounting Rail Thickness | 1.9mm |
| Product Dimensions | 23"W 23"D 56"H [58W 58D 142H cm] |
| Compatible Vertical Cable Managers | RM-450-29U - Vertical Cable Manager for Relay Rack - 29URM-455-26U - 26U Vertical Cable Manager - Front Facing |
| ANSI/EIA | Compliant |
| RS-310-D | Compliant |
| IEC60297-2 | Compliant |
| DIN41494 | Compliant |
| PART1 | Compliant |
| PART7 | Compliant |
| RoHS | Compliant |
| Reach | Compliant |
