Four Post Relay Rack - 19 inch 26U, Square hole, Depth 24-36
Click the image to zoom
Four Post Relay Rack - 19 inch 26U, Square hole, Depth 24-36 inch
$352.31
In stock
— ships in 1 business day
Description
This 4-post relay rack is 19 inches wide, 26U in height and can be adjusted from 23 to 36 inches in depth. It is typically used to mount networking and audio/video rack mountable equipment.
Specifications
Four Post Relay Rack - 19 inch 26U, Square hole, Depth 24-36 inch
This 4-post relay rack is 19 inches wide, 26U in height and can be adjusted from 23 to 36 inches in depth. It is typically used to mount networking and audio/video rack mountable equipment.
Color: Black - Powder Coated
Material: SPCC Cold Rolled Steel
Loading Capacity: Maximum 800kg

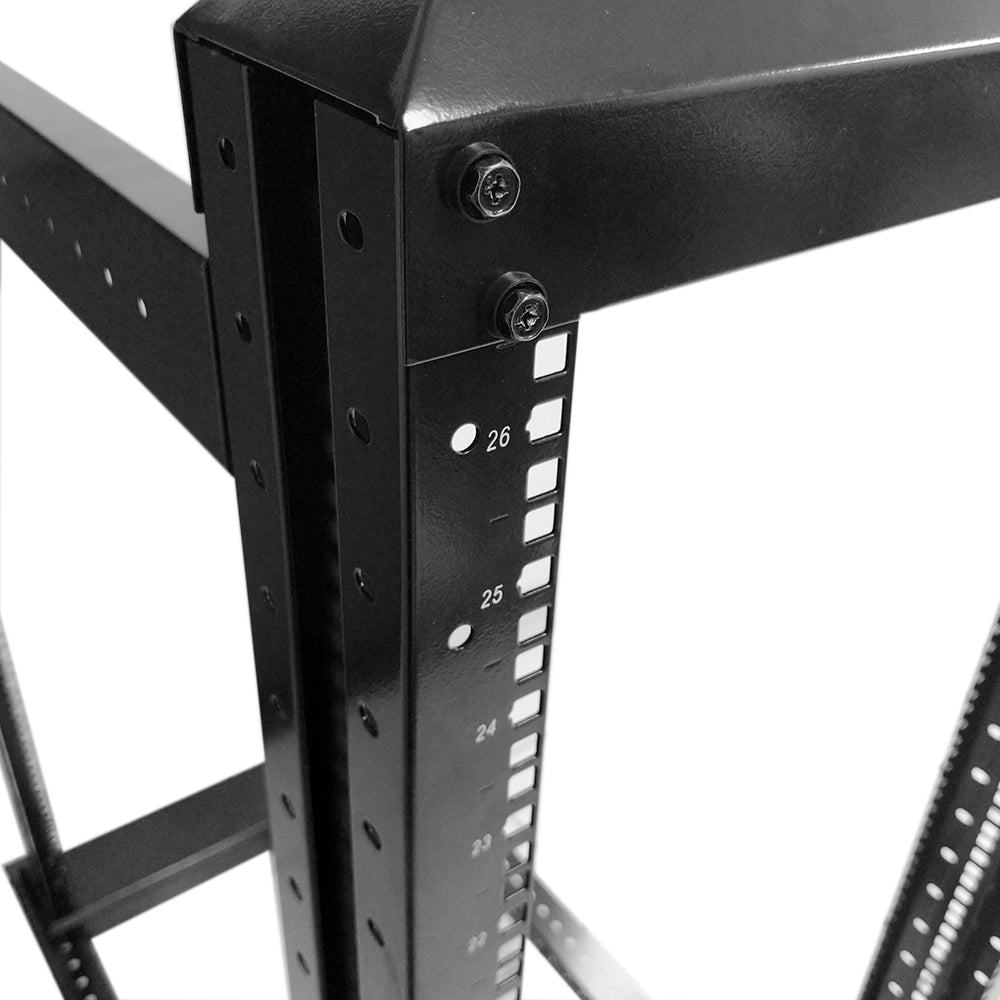

Mounting Rails: 2 Pairs of Square Hole Rails
Mounting Rail Thickness: 1.7mm
| Product | Four Post Relay Rack - 19 inch 26U, Square hole, Depth 24-36 inch |
| Color | Black - Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Loading Capacity | Maximum 800kg |
| Mounting Rails | 2 Pairs of Square Hole Rails |
| Mounting Rail Thickness | 1.7mm |

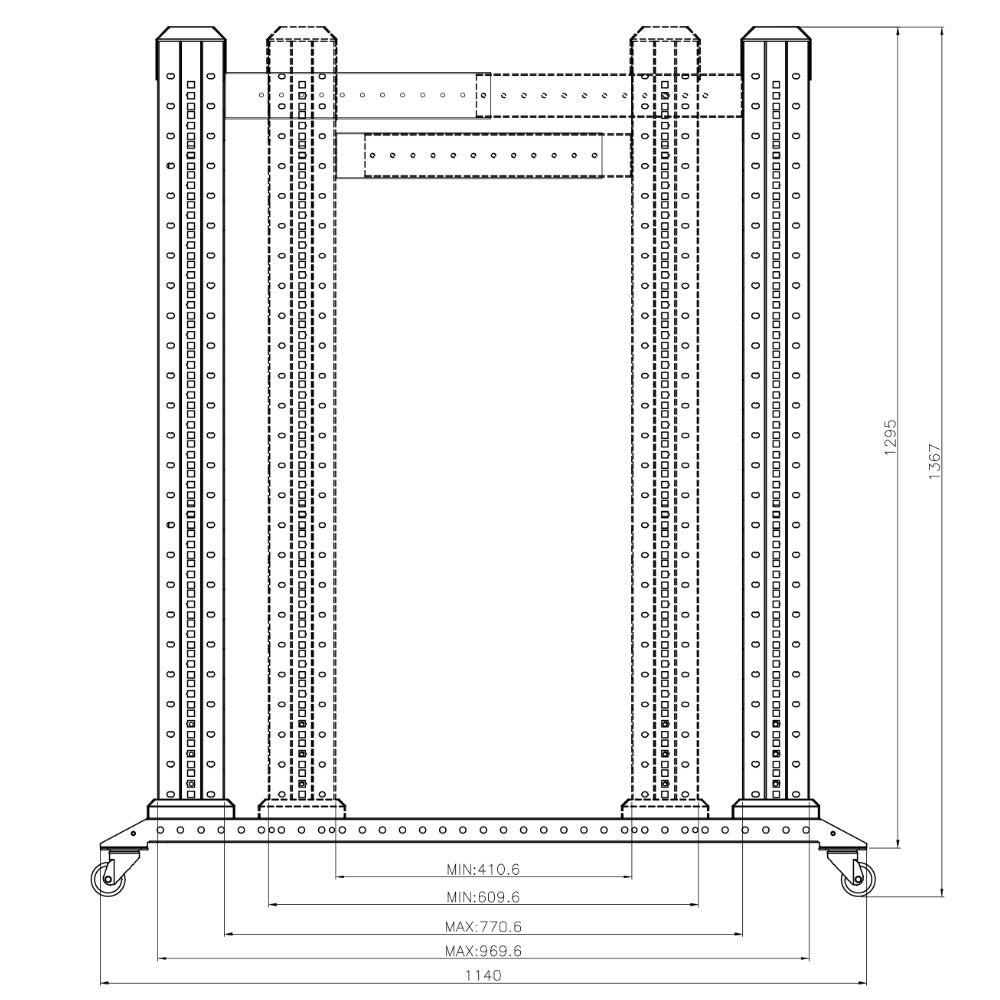

| Product Dimensions | 45.5 H, 23.6 W, Adjustable Depth from 24 to 36 inches [115 H, 60 W, 59 - 90 D cm] |
| Usable Mounting Dimensions | 26UH, 19" Wide, Adjustable Depth from 24 to 36 inches |
| Casters | Included - Optional Use |
| Compatible Vertical Cable Managers | RM-450-24U - Vertical Cable Manager for Relay Rack - 24URM-455-26U - 26U Vertical Cable Manager - Front Facing |
| ANSI/EIA | Compliant |
| RS-310-D | Compliant |
| IEC60297-2 | Compliant |
| DIN41494 | Compliant |
| PART1 | Compliant |
| PART7 | Compliant |
