Four Post Relay Rack - 19 inch 42U, Square hole, Depth 23-36
Click the image to zoom

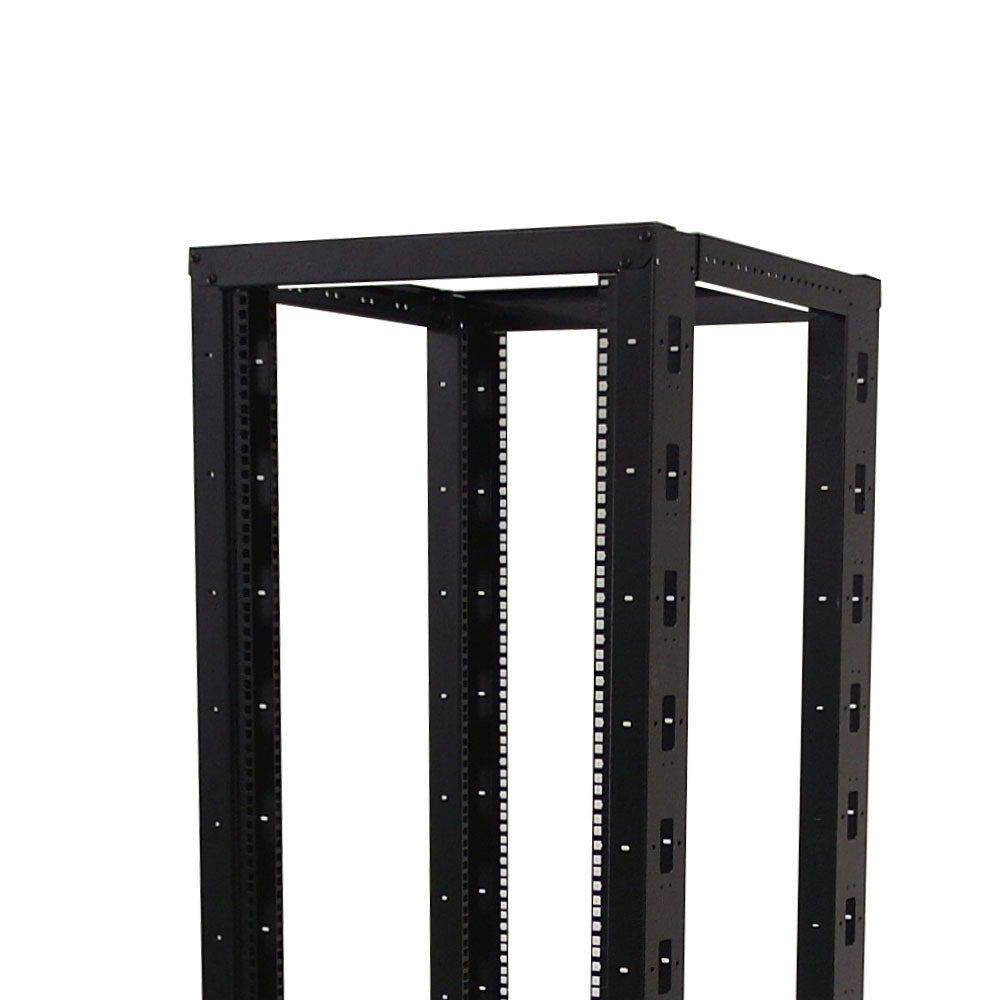

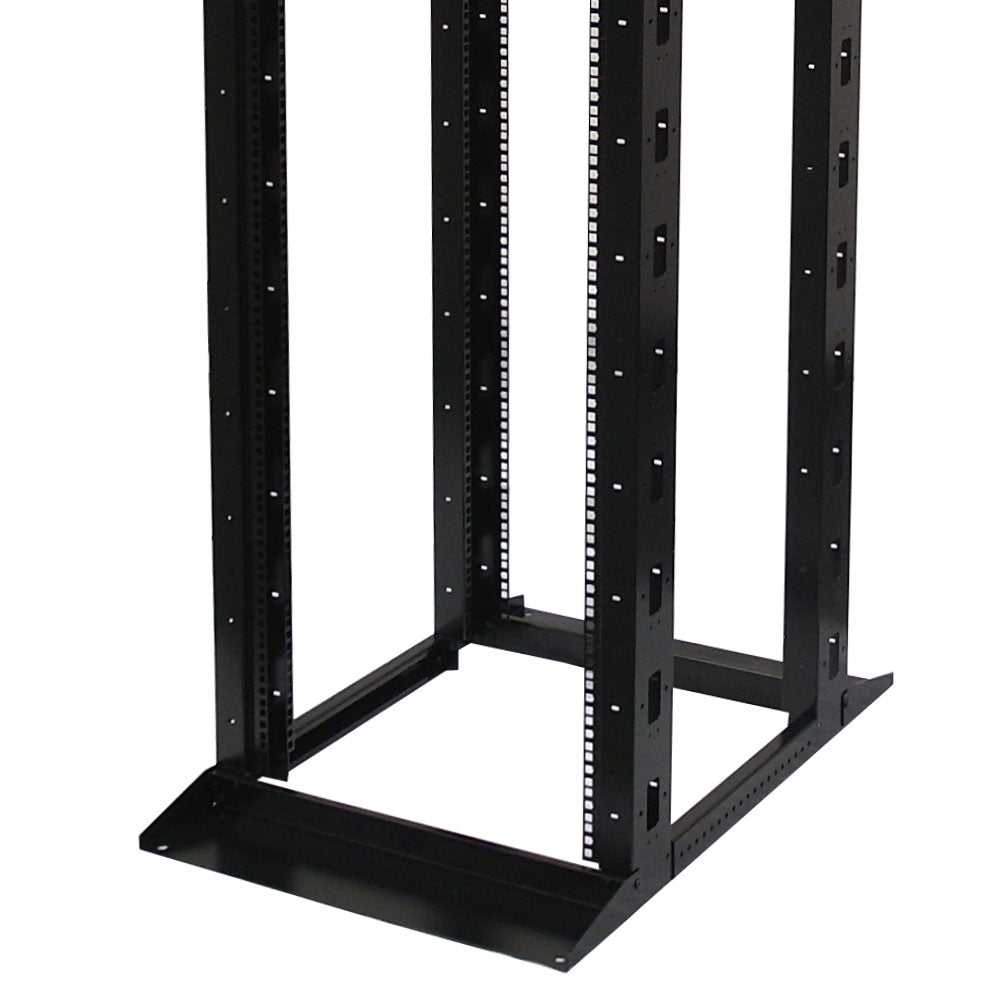

Four Post Relay Rack - 19 inch 42U, Square hole, Depth 23-36 inch
$394.63
In stock
— ships in 1 business day
Description
This 4-post relay rack is 19 inches wide, 42U in height and can be adjusted from 23 to 36 inches in depth. It is typically used to mount networking and audio/video rack mountable equipment.
Specifications
Four Post Relay Rack - 19 inch 42U, Square hole, Depth 23-36 inch
This 4-post relay rack is 19 inches wide, 42U in height and can be adjusted from 23 to 36 inches in depth. It is typically used to mount networking and audio/video rack mountable equipment.
Color: Black - Powder Coated
Material: SPCC Cold Rolled Steel
Loading Capacity: Maximum 800kg
Mounting Rails: 2 Pairs of Square Hole Rails
Mounting Rail Thickness: 1.9mm
| Product | Four Post Relay Rack - 19 inch 42U, Square hole, Depth 23-36 inch |
| Color | Black - Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Loading Capacity | Maximum 800kg |
| Mounting Rails | 2 Pairs of Square Hole Rails |
| Mounting Rail Thickness | 1.9mm |
| Product Dimensions | 78.6H, 23.6 W, Adjustable Depth from 23 to 36 inches [200 H, 60 W, 59 - 90 D cm] |
| Usable Mounting Dimensions | 42UH, 19" Wide, Adjustable Depth from 23 to 36 inches |
| Compatible Vertical Cable Managers | RM-450-42U - Vertical Cable Manager for Relay Rack - 42URM-455-42U - 42U Vertical Cable Manager - Front Facing |
| ANSI/EIA | Compliant |
| RS-310-D | Compliant |
| IEC60297-2 | Compliant |
| DIN41494 | Compliant |
| PART1 | Compliant |
| PART7 | Compliant |
| RoHS | Compliant |
