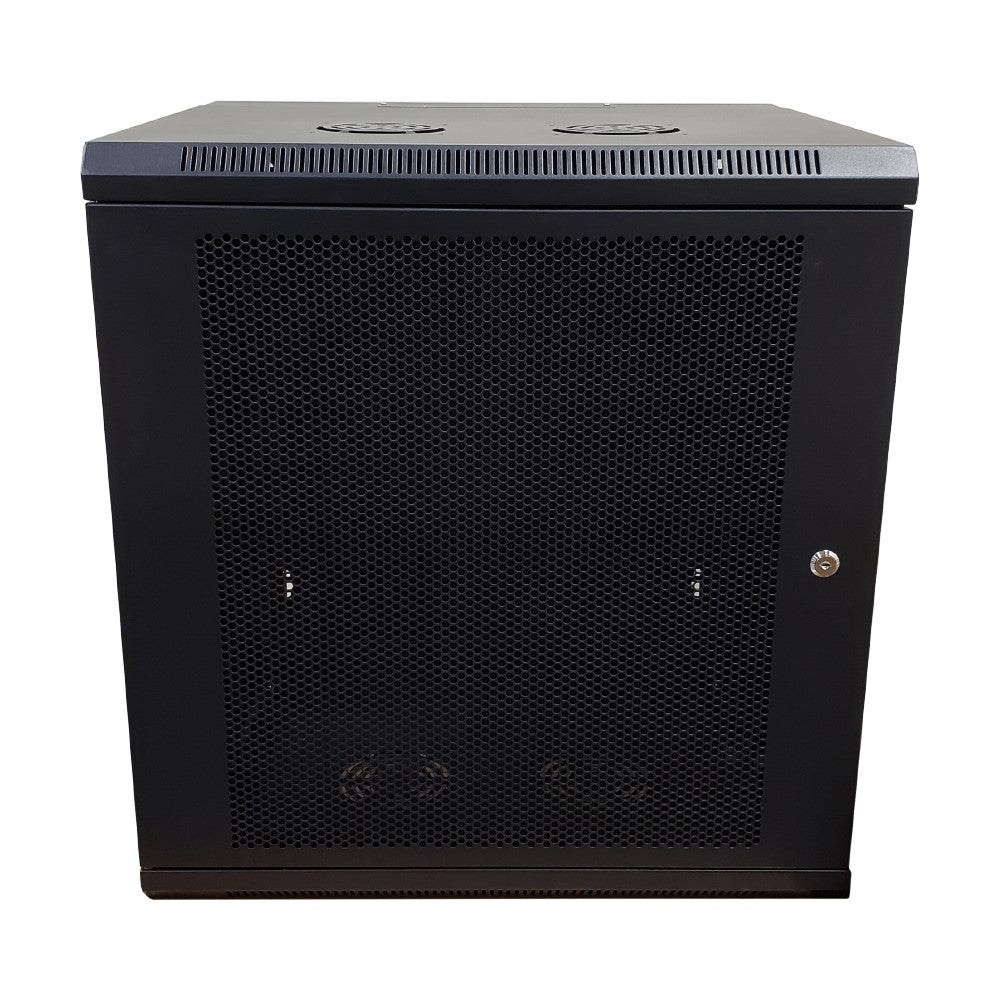

Wall Mount Swing Cabinet 12U x 18.5" Usable Depth - Perforated Doors - Black
$326.19
In stock
— ships in 1 business day
Description

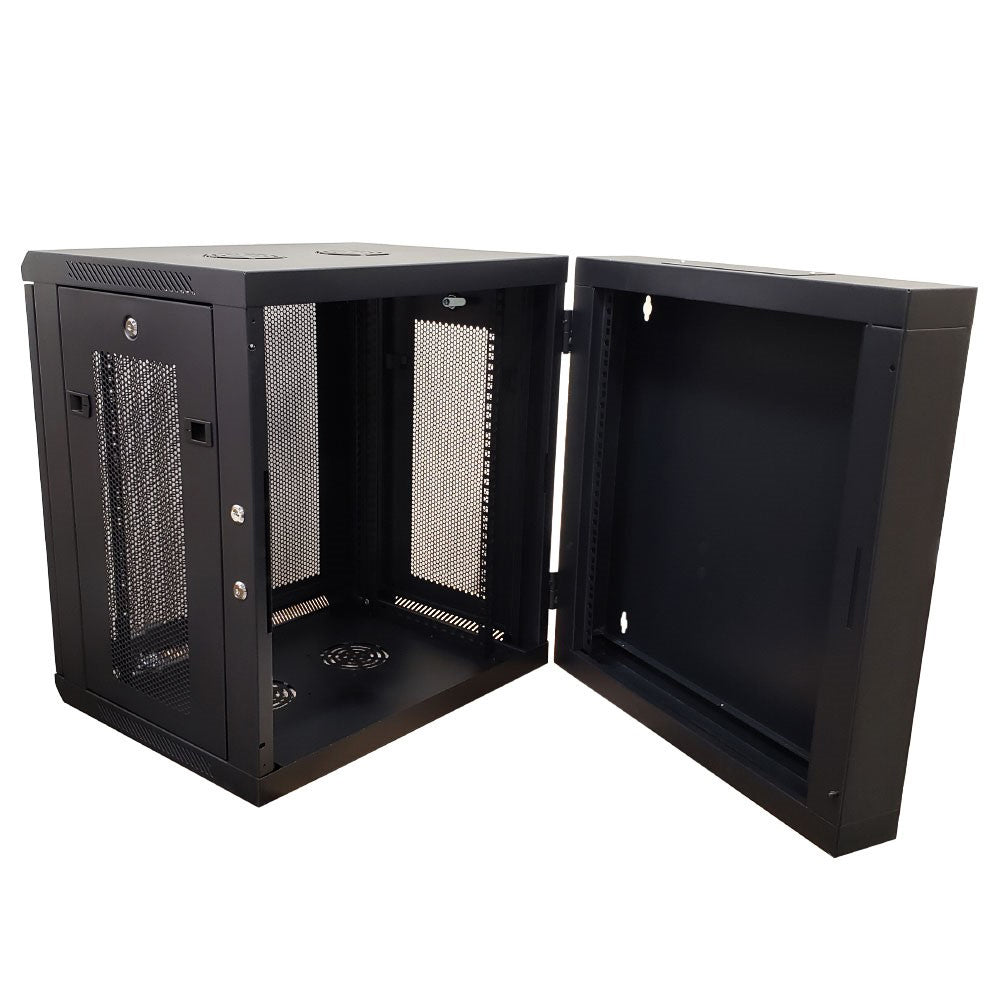

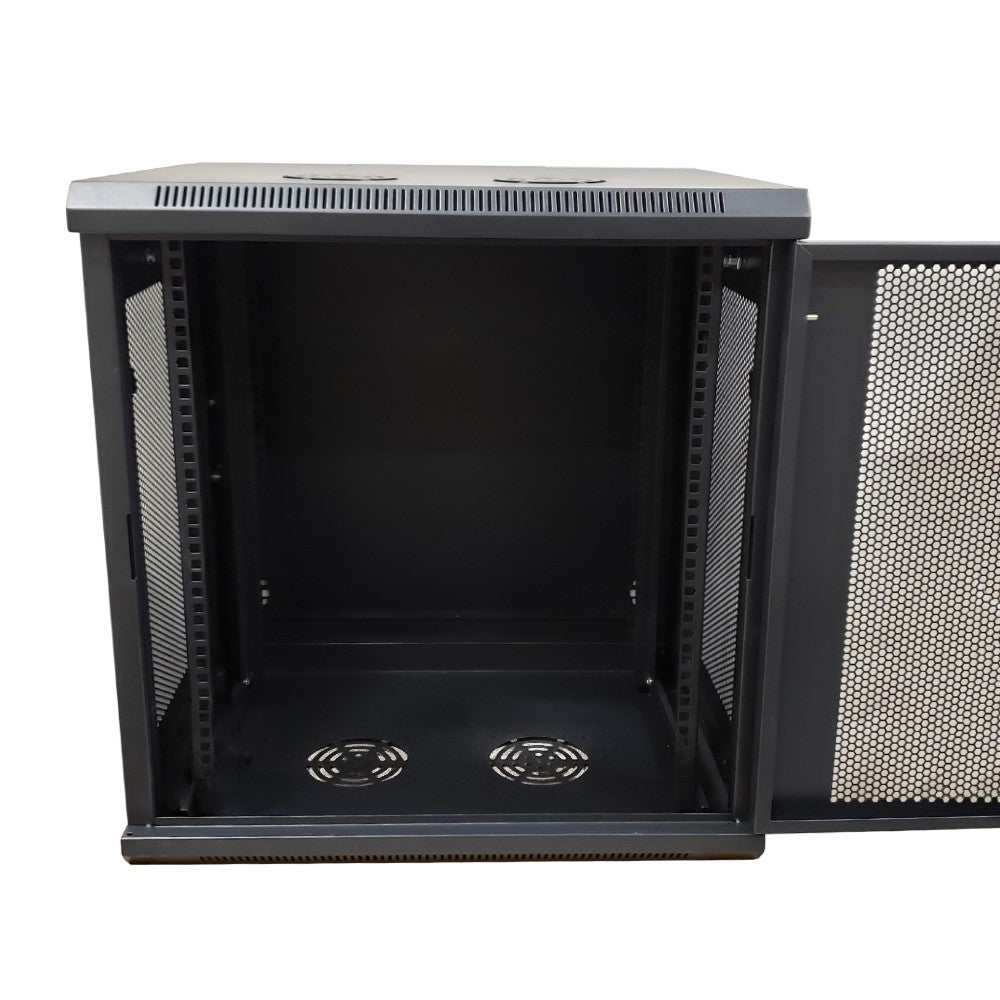

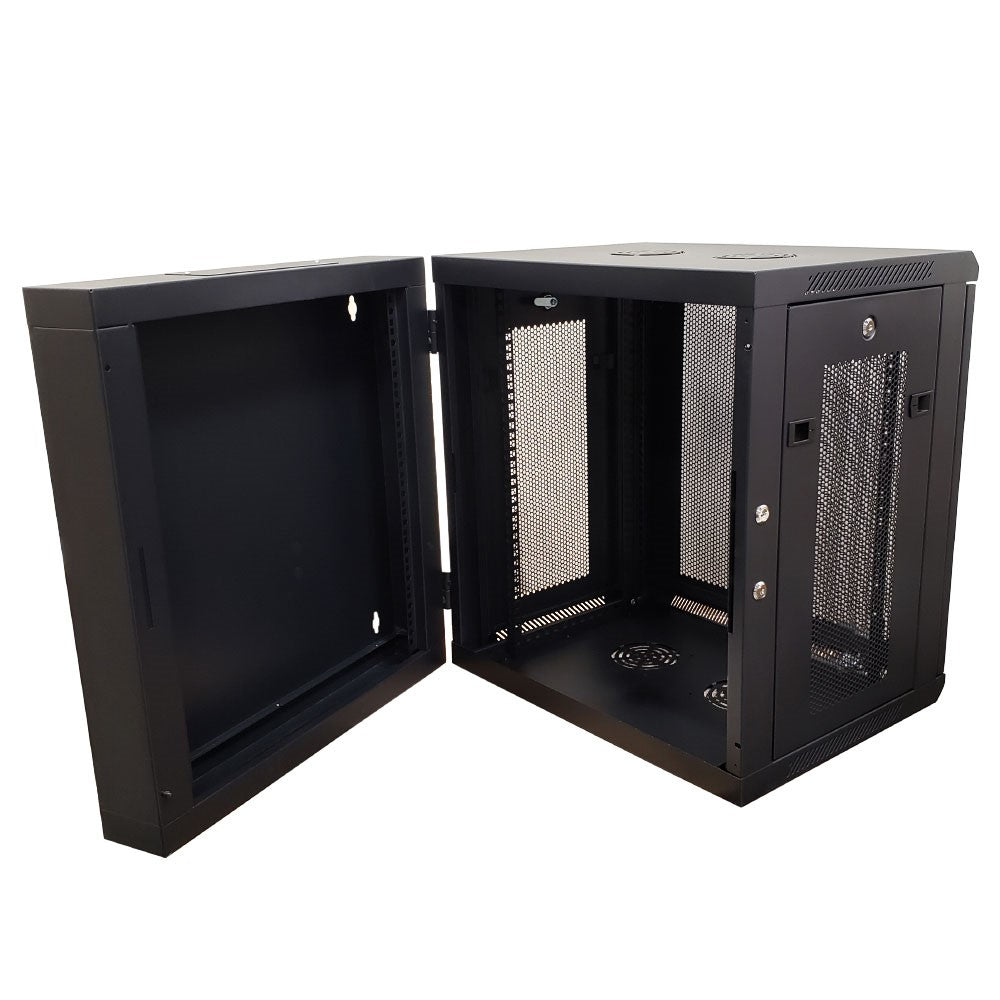

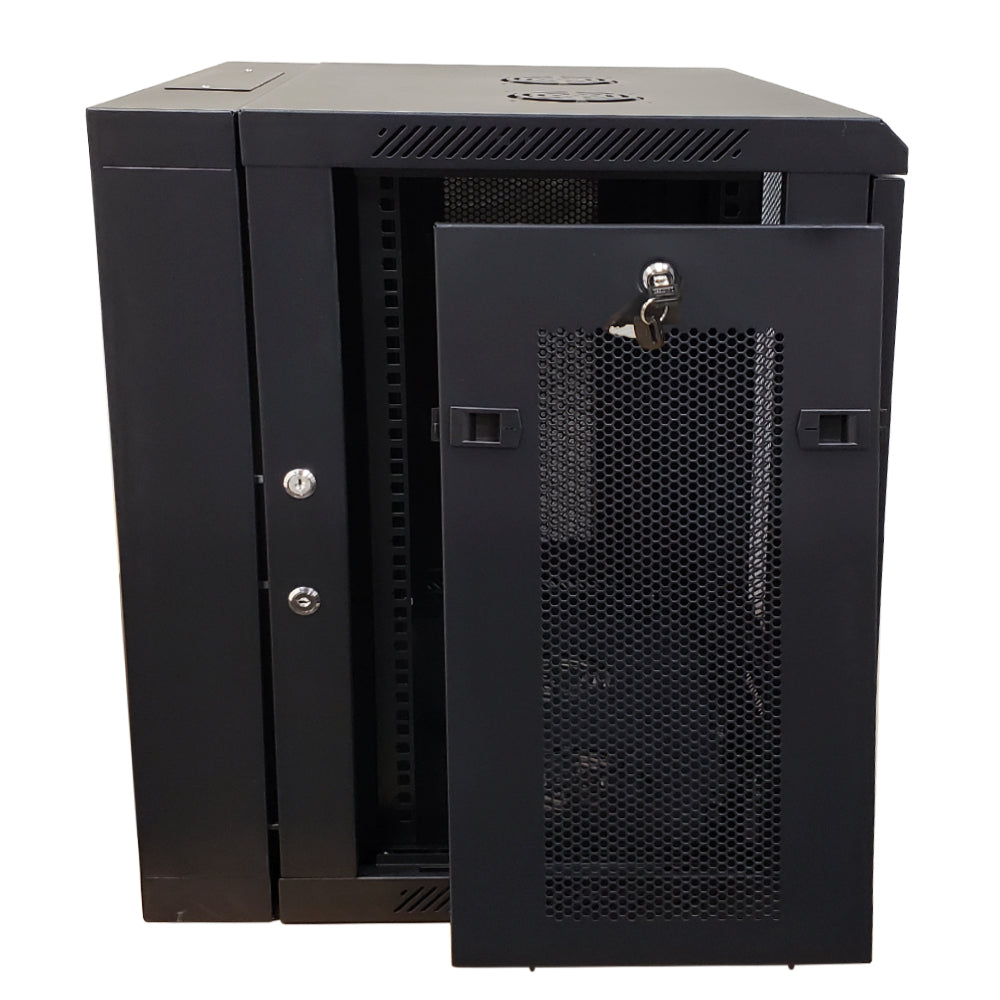

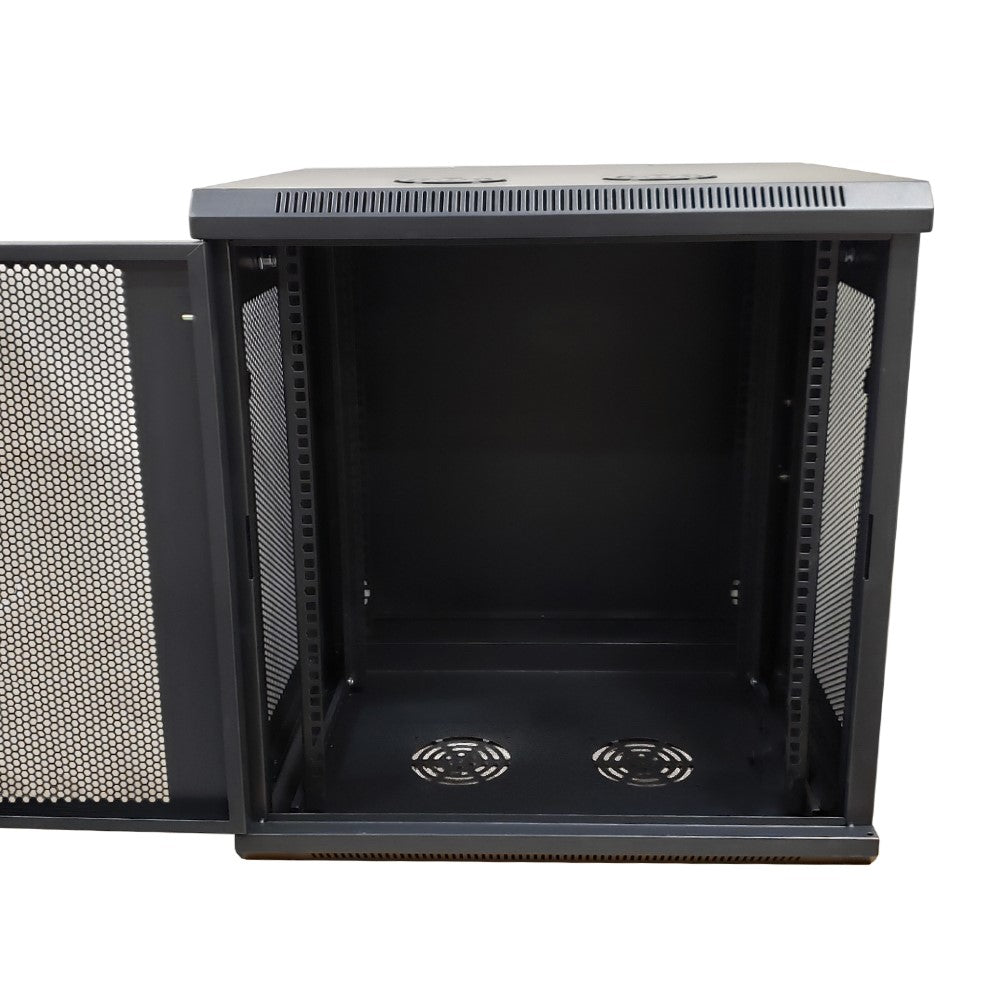

This 12U wall mount swing-out cabinet comes with a lockable front door, lockable swing out back and removable/lockable side panels. The cabinet can be mounted so that the swing-out function can open left or right. The front door can be installed to swing open left or right as well. The front door and side doors are vented for increased airflow as well. Fans holes are located top and bottom to add the airflow. It is typically used for housing network and DVR equipment used in small offices and homes. (Fans sold separately. Click here for fan kit).
Specifications
Wall Mount Swing Cabinet 12U x 18.5" Usable Depth - Perforated Doors - Black
This 12U wall mount swing-out cabinet comes with a lockable front door, lockable swing out back and removable/lockable side panels. The cabinet can be mounted so that the swing-out function can open left or right. The front door can be installed to swing open left or right as well.
Color: Black - Powder Coated
Material: SPCC Cold Rolled Steel
Material Thickness: Rails:1.35mm, Others:1.0 mm
Front Door: Removable Perforated Front Door, Opening Angle is Over 180 Degrees, LockableCan be Mounted to Swing Open Left or Right
Swing Out Back: Opening Angle is Over 90 Degrees, Lockable - Requires Two Keys to OpenCan be Mounted to Swing Open Left or Right
| Product | Wall Mount Swing Cabinet 12U x 18.5" Usable Depth - Perforated Doors - Black |
| Color | Black - Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Material Thickness | Rails:1.35mm, Others:1.0 mm |
| Front Door | Removable Perforated Front Door, Opening Angle is Over 180 Degrees, LockableCan be Mounted to Swing Open Left or Right |
| Swing Out Back | Opening Angle is Over 90 Degrees, Lockable - Requires Two Keys to OpenCan be Mounted to Swing Open Left or Right |
| Lockable Side Panels | Compliant - Perforated - Can be flipped so lock faces up |
| Removable Side Panels | Compliant - Perforated - Can be flipped so lock faces up |
| Adjustable Mounting Profile Installation | Compliant |
| Assembly Required | No |
| Loading Capacity | Maximum 110 lbs [50 kg] |
| Cable Entries | Cable Entry on Top and Bottom Panels |
| Width | 19 inches |
| Capacity | 12U |
| Product Dimensions | 24.8 H, 23.6 W, 21.6 D inches [63 H, 60 W, 55 D cm] |
| Mounting Rails | 2 pairs of square hole railsAdjustable depth 75mm, 85mm, 95mm 105mm, 115mm (Measured from the Glass to the Rail) |
