19 inch Wall Mount Bracket - 12U, Adjustable Depth, 12-18 In
Click the image to zoom

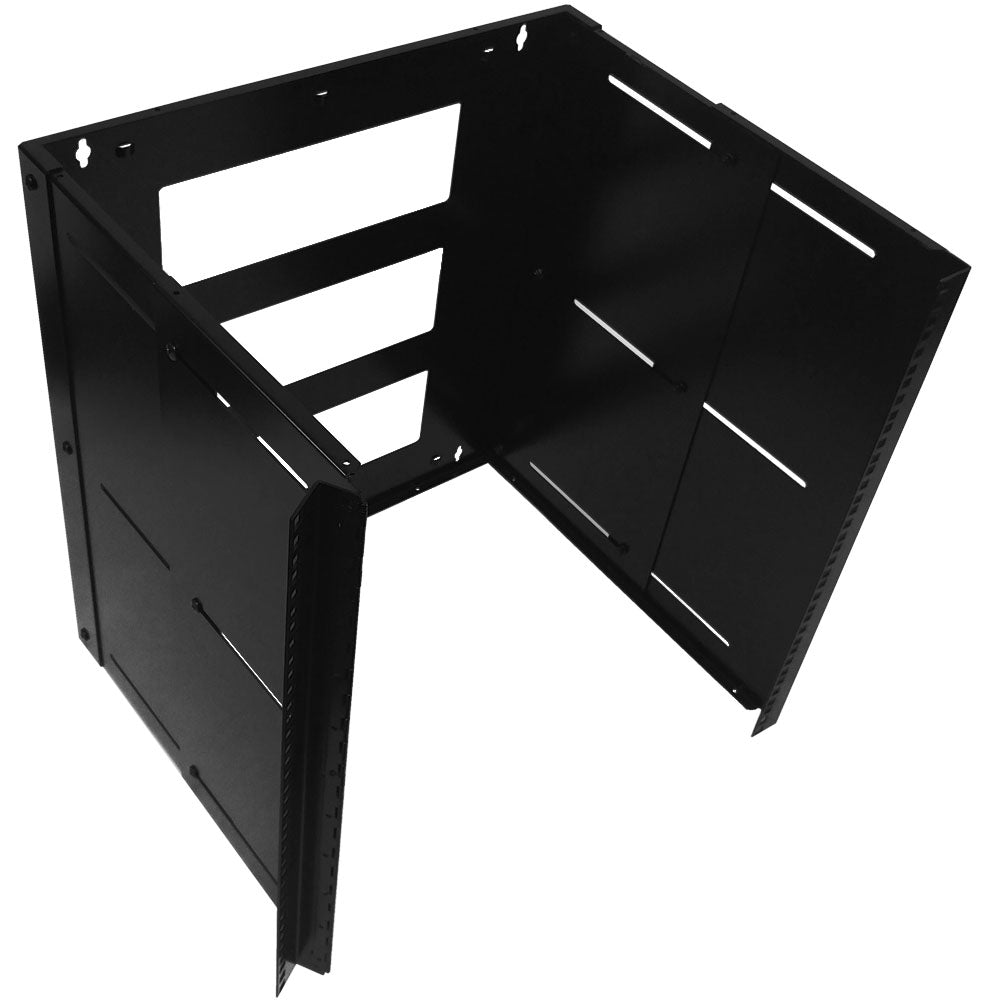

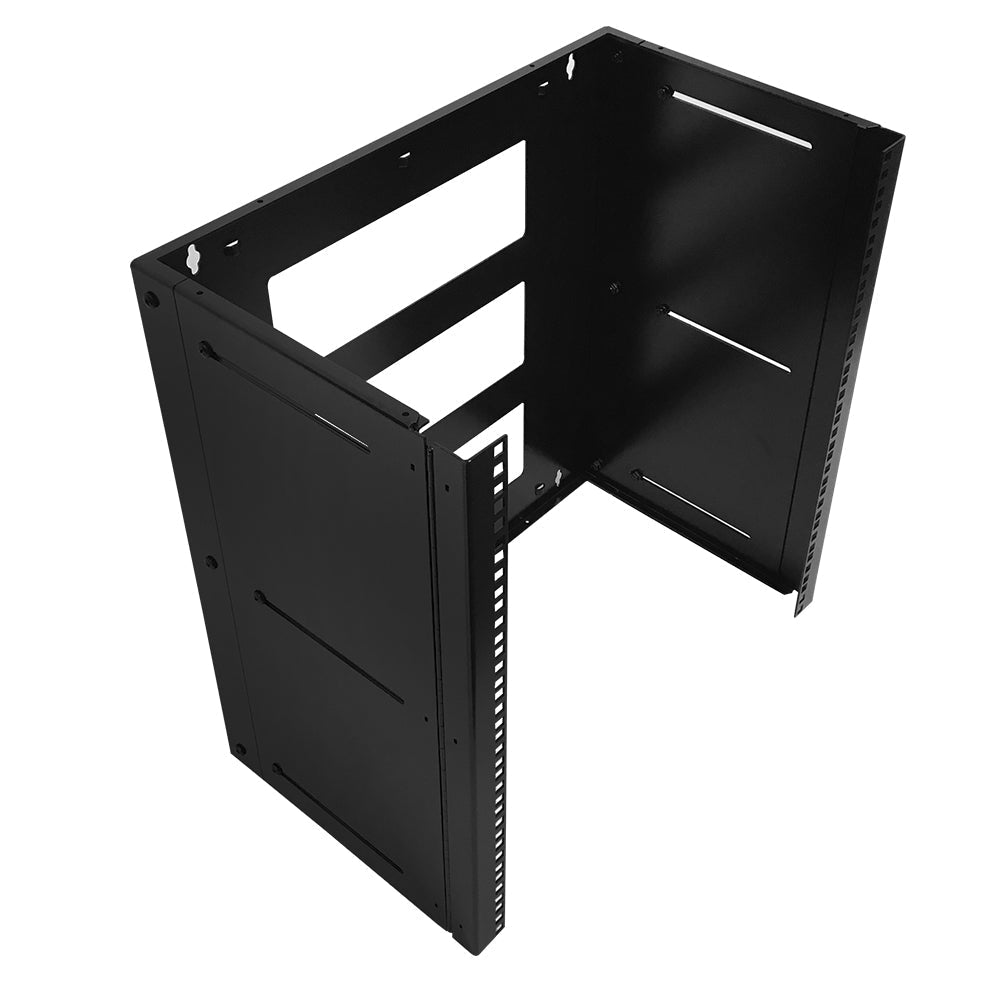

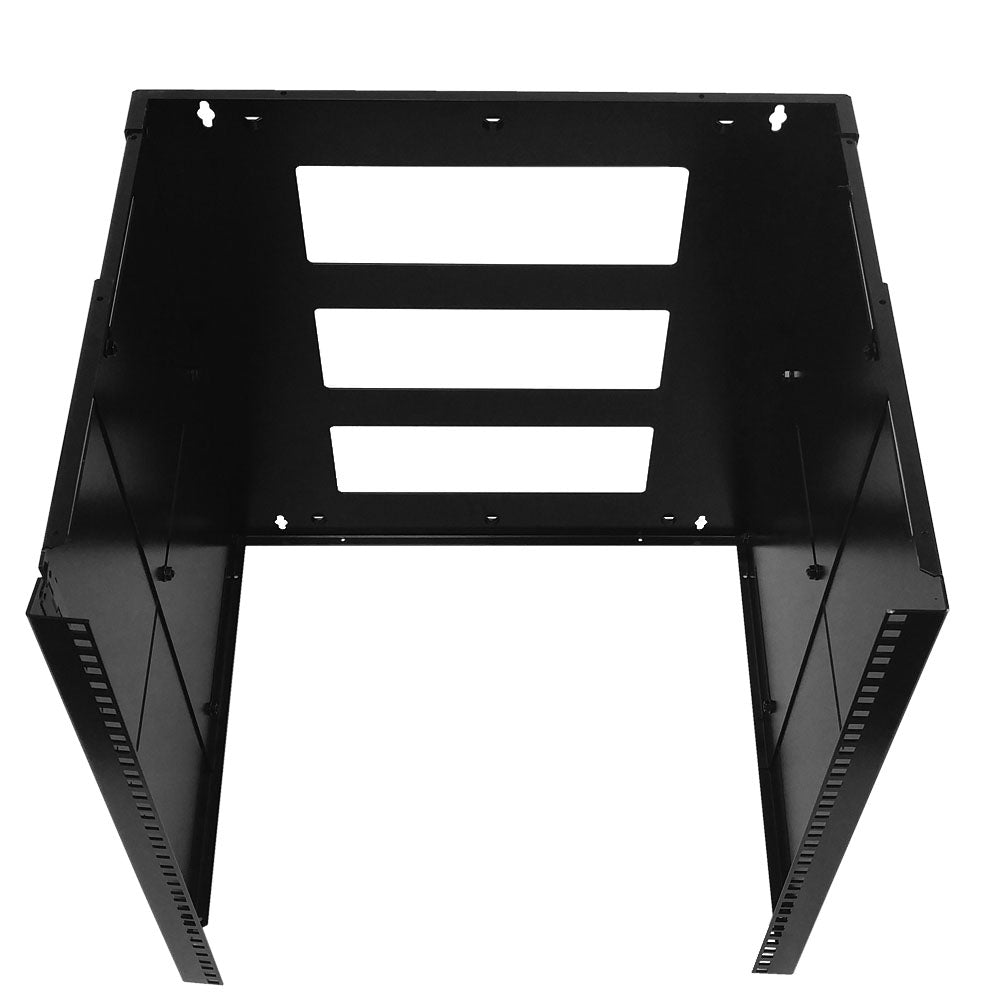

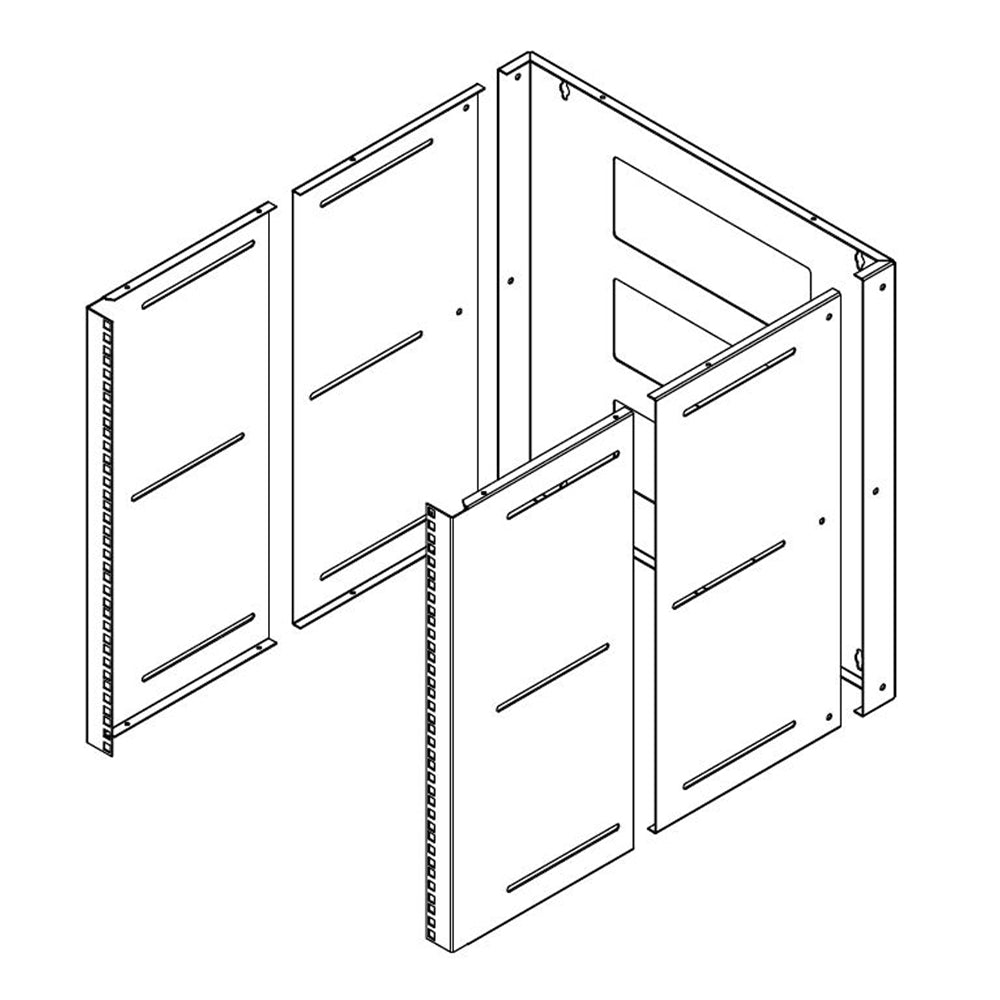

19 inch Wall Mount Bracket - 12U, Adjustable Depth, 12-18 Inches, Hinged
$143.44
In stock
— ships in 1 business day
Description
This wall mount bracket is 12U in height and adjustable from 12 to 18 inches in depth. It is used for mounting 19" wide networking equipment.
Specifications
19 inch Wall Mount Bracket - 12U, Adjustable Depth, 12-18 Inches, Hinged
This wall mount bracket is 12U in height and adjustable from 12 to 18 inches in depth. It is used for mounting 19" wide networking equipment.
Color: Black
Finish: Powder Painted
Material: 2.0mm SPCC Cold Rolled Steel
Height in units: 12U
Height in inches: 21.26 inches [53.2cm]
| Product | 19 inch Wall Mount Bracket - 12U, Adjustable Depth, 12-18 Inches, Hinged |
| Color | Black |
| Finish | Powder Painted |
| Material | 2.0mm SPCC Cold Rolled Steel |
| Height in units | 12U |
| Height in inches | 21.26 inches [53.2cm] |
| Rail Mounting Style | Square Hole Punched Rails |
| Rail Thickness | 2.15mm |
| Overall Dimensions | 21.26H x 20.5W x 18D Inches |
| Rear Wire Access Hole | 3 (11.8 x 3.9 inches) |
| Mounting Depth | 12 inches ~ 18 inches (Adjustable) |
| Load Capacity | 70 lbs (32kg) |
| Cable Management | Tie Point Notches |
| Wall Mounting Hardware | Not Included |
| Equipment Mounting Hardware | Included |
| ANSI/EIA | Compliant |
