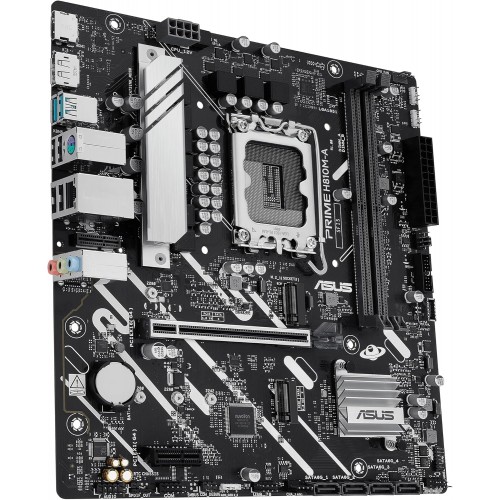

Asus Prime H810M-E-CSM LGA1851 DDR5 Motherboard, New
$206.24
In stock
— ships in 1 business day
Description
LGA1851 Socket for Intel Core Ultra Series 2 CPUs; Intel H810 Chipset; 2x DDR5 slots up to 96GB, dual channel; 1x PCIe 4.0 x16, 1x PCIe 4.0 x1; 4x SATA 6Gb/s; 2x M.2 slots; supports Intel XMP
Specifications
ASUS PRIME H810M-E/CSM Micro ATX LGA1851 DDR5 Motherboard
Model: PRIME H810M-E/CSM (90MB1KK0-M0AAYC)
Condition: Brand New
Platform: Intel LGA1851
| Brand | ASUS |
| Series | PRIME Series (CSM) |
| Model | PRIME H810M-E/CSM |
| Part Number | 90MB1KK0-M0AAYC |
| Form Factor | Micro ATX |
| Chipset | Intel H810 |
| Socket | LGA1851 |
| Supported CPUs | Intel Core Ultra Processors (Series 2) |
| Memory Slots | 2× DDR5 DIMM (288‑pin) |
| Memory Support | DDR5 4400–6400 MHz, Dual Channel, XMP & AEMP II Supported |
| Maximum Memory | 96GB |
| PCIe Slots | 1× PCIe 4.0 ×16 (CPU) 1× PCIe 4.0 ×1 (Chipset) |
| Storage | 4× SATA 6Gb/s M.2_1: PCIe 4.0 ×4 (2280) M.2_2: PCIe 4.0 ×2 (2242/2260/2280) |
| Audio | Realtek 7.1 Surround HD Audio 24‑bit / 192 kHz playback Audio shielding & premium capacitors |
| LAN | Intel 1Gb Ethernet |
| Rear I/O Ports | 2× USB 10Gbps (Type‑A) 4× USB 2.0 1× DisplayPort 1× HDMI 1× Wi‑Fi Module 1× RJ45 LAN 3× Audio Jacks 1× PS/2 Combo Port |
| Internal I/O | 1× USB Type‑C (5Gbps) 1× USB 5Gbps header (2 ports) 1× USB 2.0 header (2 ports) 1× CPU Fan 2× Chassis Fan 3× Addressable Gen2 RGB headers 1× Clear CMOS 1× COM Port 1× Front Audio 1× S/PDIF Out 1× TPM 2.0 Header Front Panel System Header |
| BIOS | 256Mb UEFI AMI BIOS, ASUS EZ Flash, CrashFree BIOS 3 |
| Software | Armoury Crate (Aura Sync, Fan Xpert 2+, Power Saving) ASUS DriverHub Norton 360 (60‑day trial) WinRAR (40‑day trial) |
| OS Support | Windows 11 (22H2+), Windows 10 64‑bit (21H2+) |
| Dimensions | 9.6" × 8.75" |
| Power Connectors | 24‑pin ATX 8‑pin CPU Power |
| Features | ASUS 5X Protection III (SafeSlot Core+, LANGuard, Overvoltage Protection) Q‑Design (Q‑DIMM, Q‑LED Core, Q‑Slot) VRM Heatsink Design Aura Sync RGB (Gen2 Headers) |

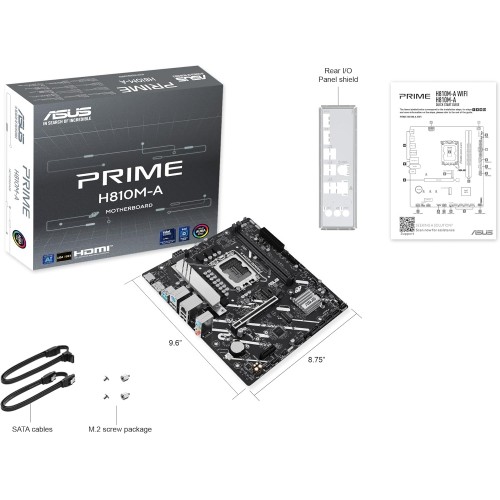

| Package Contents | 2× SATA 6Gb/s Cables ASUS Wi‑Fi Moving Antenna I/O Shield M.2 Screw Package Quick Start Guide |
