Click the image to zoom

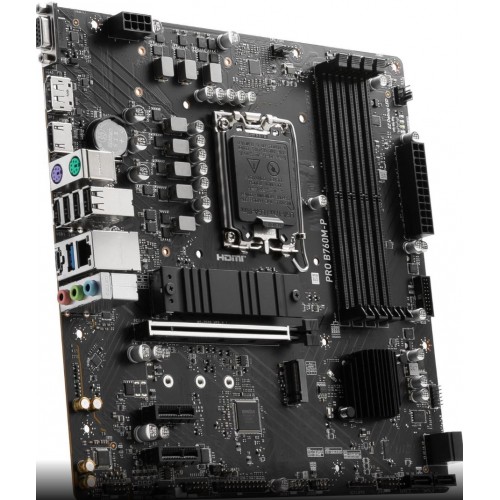

MSI B760MPD5 LGA1700 (DDR5) Motherboard, New
$207.49
In stock
— ships in 1 business day
Description
LGA1700 Socket for 12th/13th/14th Gen Intel processors; B760 Chipset; 4x DDR5 slots up to 256GB, dual channel, OC to 6800+MHz; 1x PCIe 4.0 x16, 2x PCIe 4.0 x1
Specifications
MSI PRO B760M-P Micro ATX LGA1700 DDR5 Motherboard
Model: PRO B760M-P
Condition: Brand New
Platform: Intel LGA1700
| Brand | MSI |
| Series | PRO Series |
| Model | PRO B760M-P |
| Form Factor | Micro ATX |
| Chipset | Intel B760 |
| Socket | LGA1700 |
| Supported CPUs | Intel 12th, 13th, and 14th Gen Core / Pentium / Celeron |
| Memory Slots | 4× DDR5 DIMM (288‑pin) |
| Memory Support | DDR5 4800–6800+ MHz (OC), Dual Channel |
| Maximum Memory | 256GB |
| PCIe Slots | 1× PCIe 4.0 ×16, 2× PCIe 4.0 ×1 |
| M.2 Slots | M.2_1: PCIe 4.0 ×4 (CPU) — 2280/2260/2242 M.2_2: PCIe 4.0 ×4 / SATA (Chipset) — 2280/2260/2242 |
| SATA | *SATA5 disabled when M.2 SATA SSD installed in M2_2 |
| Audio | Realtek ALC897, 7.1‑Channel HD Audio |
| LAN | Realtek RTL8111H Gigabit LAN |
| Rear I/O Ports | 1× DisplayPort, 1× HDMI, 1× VGA, 1× RJ45 LAN, 1× USB 3.2 Gen1 Type‑A, 1× USB 3.2 Gen2 Type‑C, 4× USB 2.0, 3× Audio Jacks, 1× PS/2 |
| Video Output Support | Requires CPU with Integrated Graphics DP 1.4: 4K @ 60Hz HDMI 1.4: 4K @ 30Hz VGA: up to 2048×1536 @ 50Hz |
| Internal I/O | 2× USB 3.1, 4× USB 2.0, ATX_PWR, CPU_PWR, CPU Fan, 2× System Fan, Front Panel, Chassis Intrusion, Front Audio, Printer Port, COM Port, RGB Header, TPM 2.0 Header |
| Features | DDR5 Support, PCIe 4.0, Dual M.2, Gigabit LAN, 7.1 Audio, TPM 2.0 Header |
