HDMI Extender Over One CAT5E/6/6A UTP Cable – Maximum Distance 120M
$211.25
In stock
— ships in 1 business day
Description

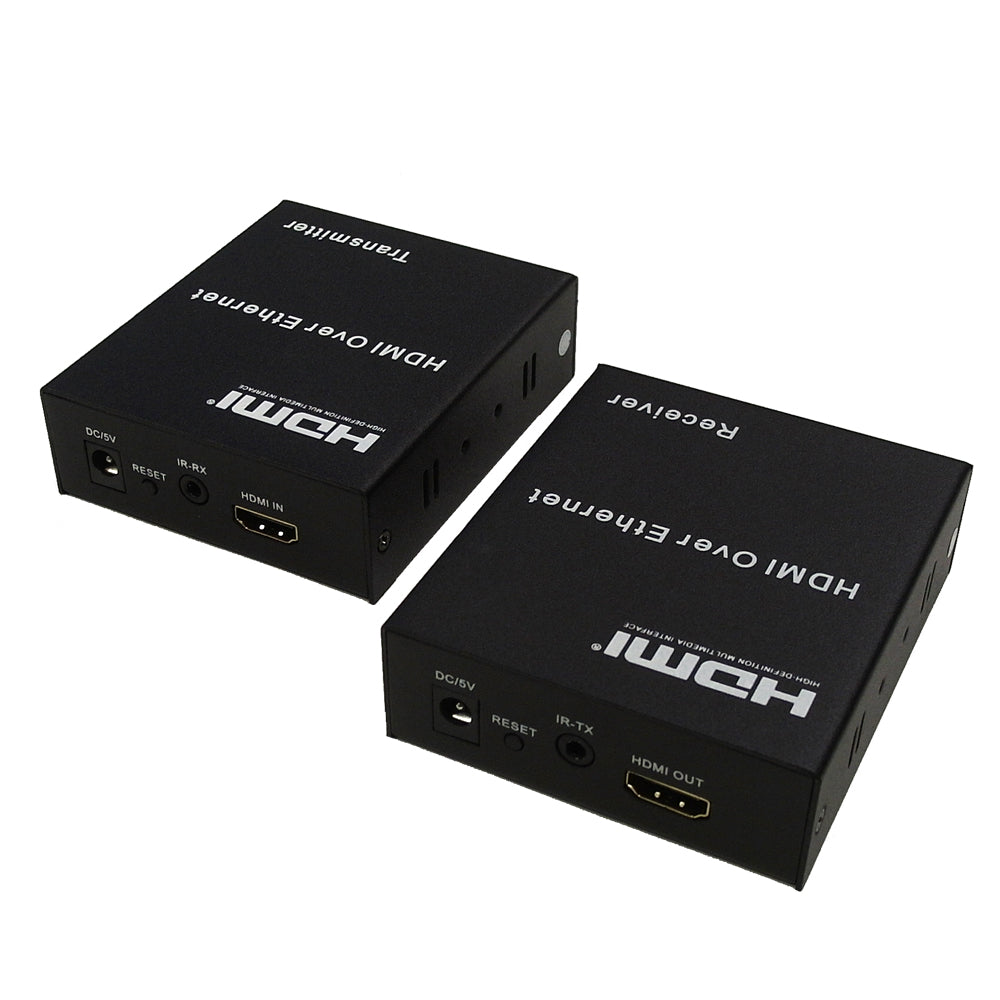

This video extender allows you to extend your 3D or HD display up to 393ft (120 meters) away from your source device over a single Cat5e, Cat6 or Cat6A cable at a resolution of 1080p/60Hz. Built-in IR extender function allows IR remote control of source devices from remote viewing location by sending IR commands received in the area of the display back to the source devices. Receivers can be purchased separately under part number VE-HDMI-007C-R.
Specifications
HDMI Extender Over One CAT5E/6/6A UTP Cable – Maximum Distance 120M
This video extender allows you to extend your 3D or HD display up to 393ft (120 meters) away from your source device over a single Cat5e, Cat6 or Cat6A cable at a resolution of 1080p/60Hz. Built-in IR extender function allows IR remote control of source devices from remote viewing location by sending IR commands received in the area of the display back to the source devices.
Color: Black
Housing: Metal Enclosure
Operating Temperature: 0 ~ 70℃
Dimensions: 92 x 79 x 20mm

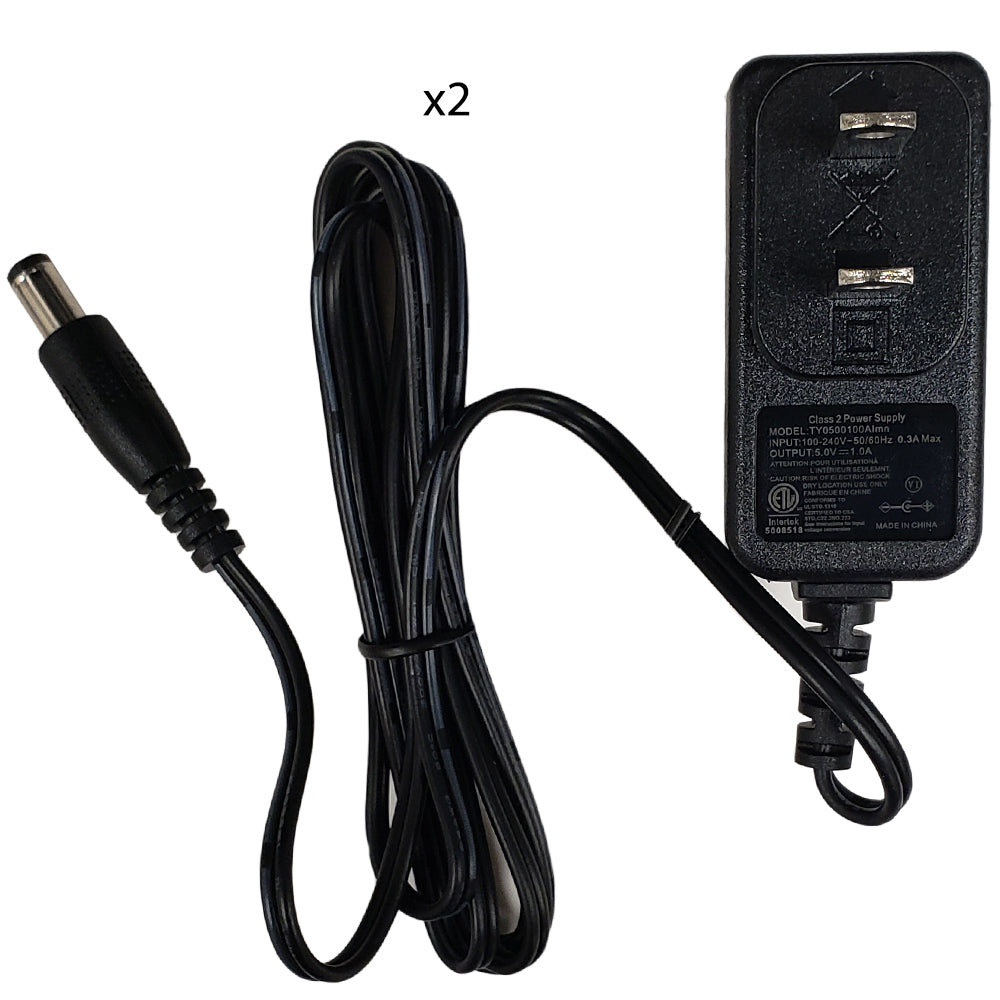

Power Adapter: 100V-240V(50-60Hz)Output: 5V/1A
| Product | HDMI Extender Over One CAT5E/6/6A UTP Cable – Maximum Distance 120M |
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0 ~ 70℃ |
| Dimensions | 92 x 79 x 20mm |
| Power Adapter | 100V-240V(50-60Hz)Output: 5V/1A |
| Power Consumption | HDMI Sender: 3WHDMI Receiver: 3W |
| PC to Monitor | Compliant |
| PC to TV | Compliant |
| DVD to Monitor | Compliant |
| DVD to TV | Compliant |
| Transmitter | HDMI Female, RJ45 Female, 3.5mm Female |
| Receiver | HDMI Female, RJ45 Female, 3.5mm Female |
| Video | 480i/ 480p/ 720p/ 1080i/ 1080p@60Hz |
| IR Frequency Range | 38khZ; NEC |
| Transmission Range | Up to 120m (393ft) |
