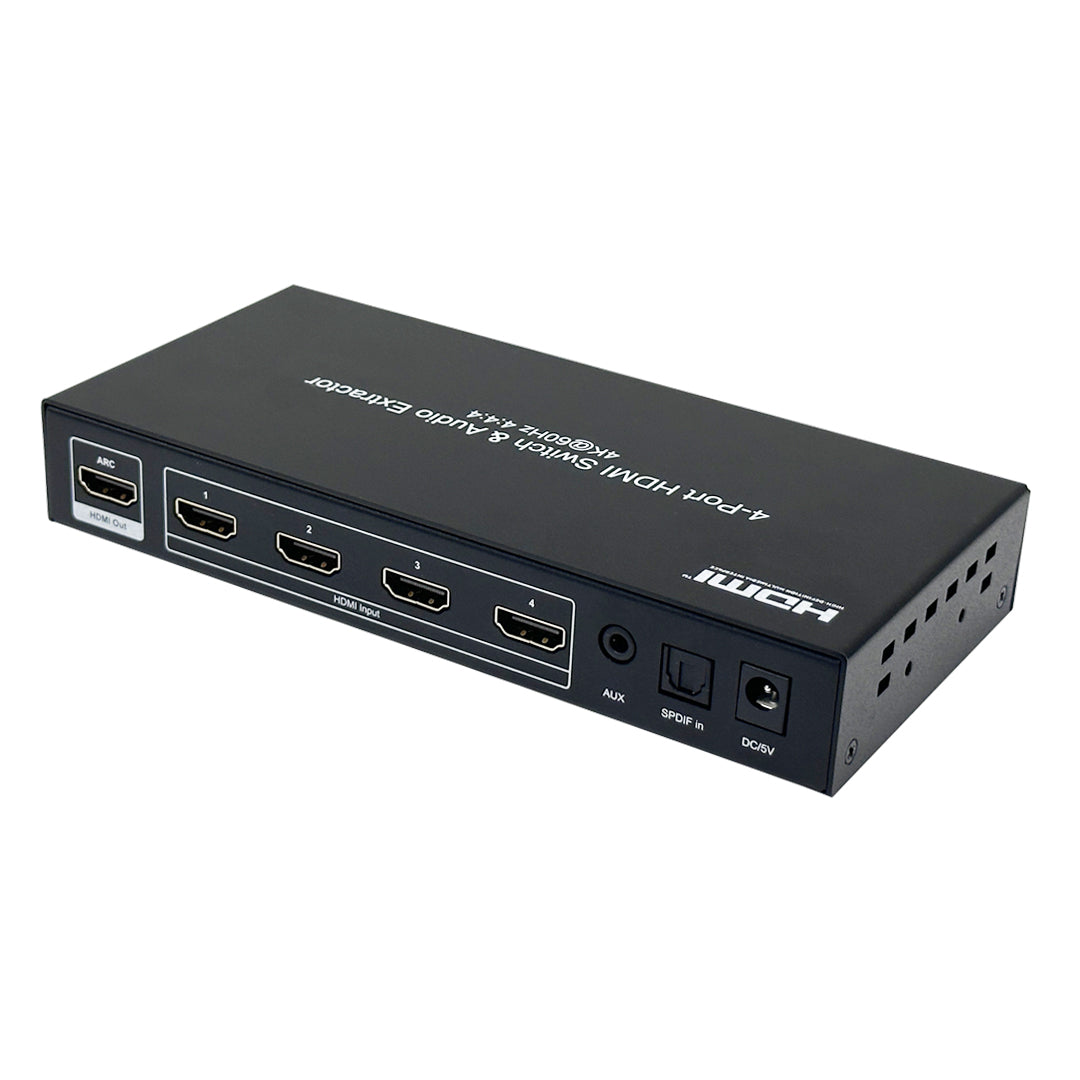

4-Port HDMI Switch 4Kx2K@60Hz - HDMI 2.0 -YUV4:4:4 -ARC CEC
Click the image to zoom

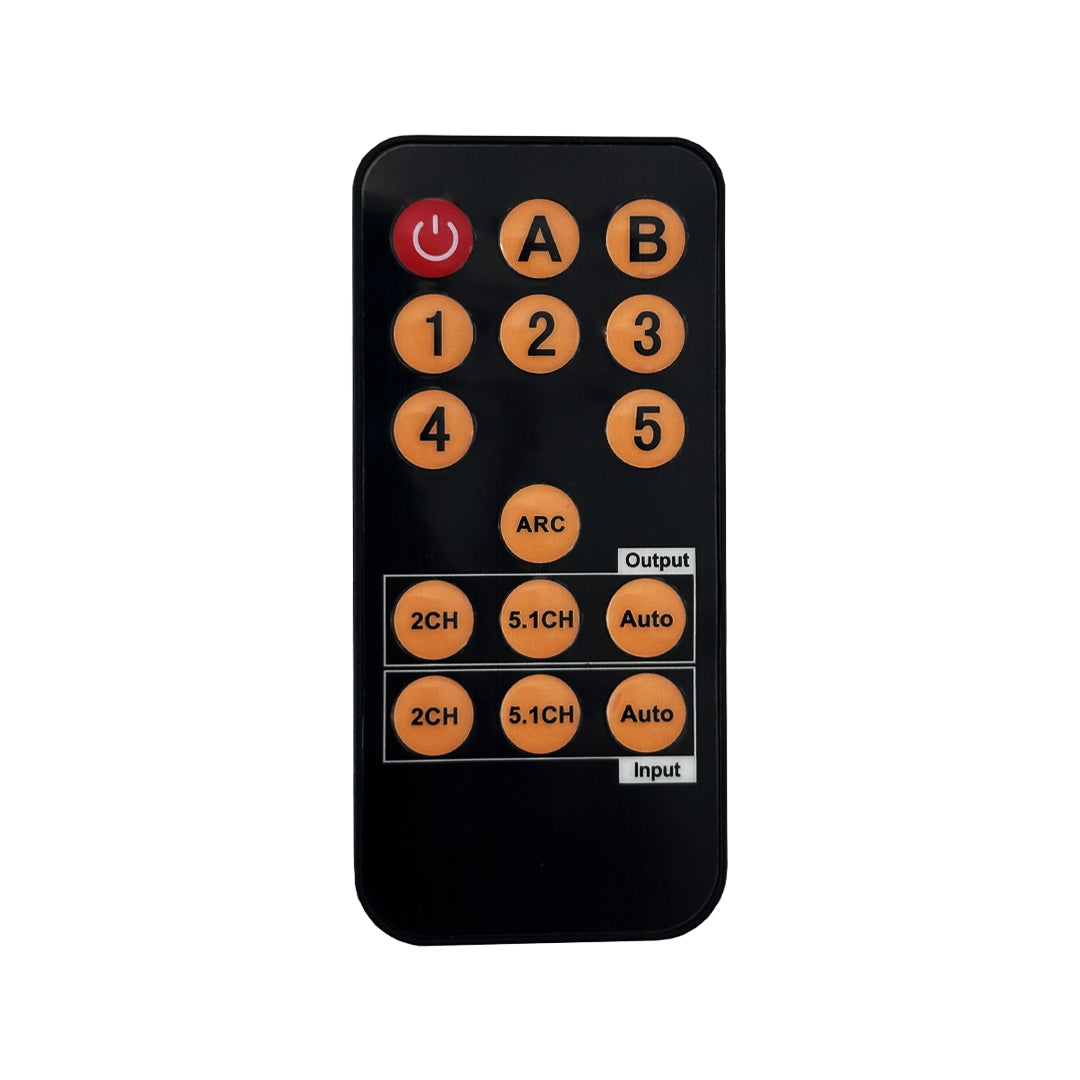

4-Port HDMI Switch 4Kx2K@60Hz - HDMI 2.0 -YUV4:4:4 -ARC CEC HDR - IR Control
$47.88
In stock
— ships in 1 business day
Description
This HDMI switch enables you to connect up to four HDMI sources to a HDMI display. It is typically allows four HDMI sources to be routed to one display with ARC & Audio extraction & Audio Mixing.
Key Feature:
Specifications
4-Port HDMI Switch 4Kx2K@60Hz - HDMI 2.0 -YUV4:4:4 -ARC CEC HDR - IR Control
This HDMI switch enables you to connect up to four HDMI sources to a HDMI display. It is typically allows four HDMI sources to be routed to one display with ARC & Audio extraction & Audio Mixing. Key Feature:
Color: Black

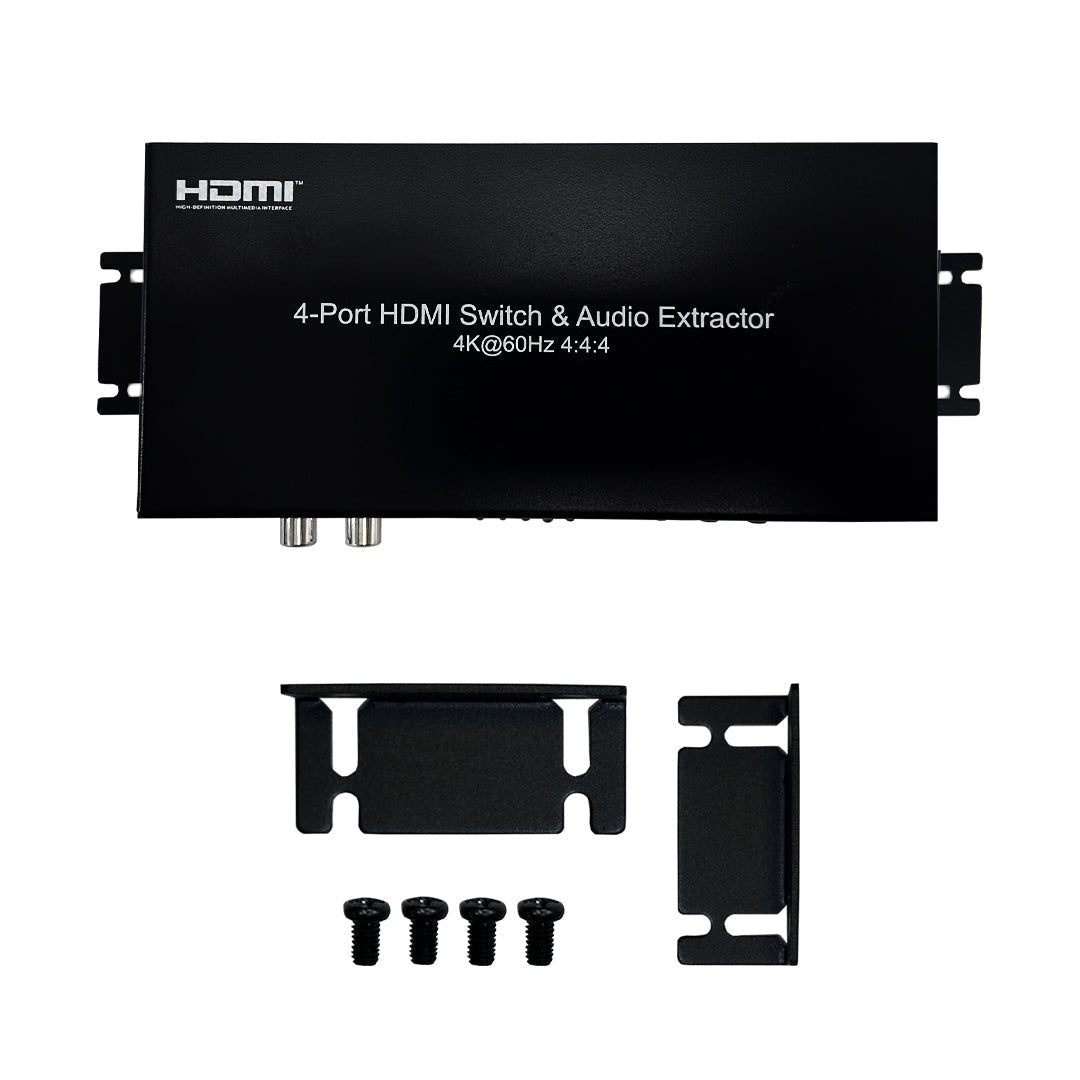

Housing: Metal Enclosure
Operating Temperature: -5℃ ~ +40℃
Operating Humidity Range: 5 to 90%RH (No Condensation)

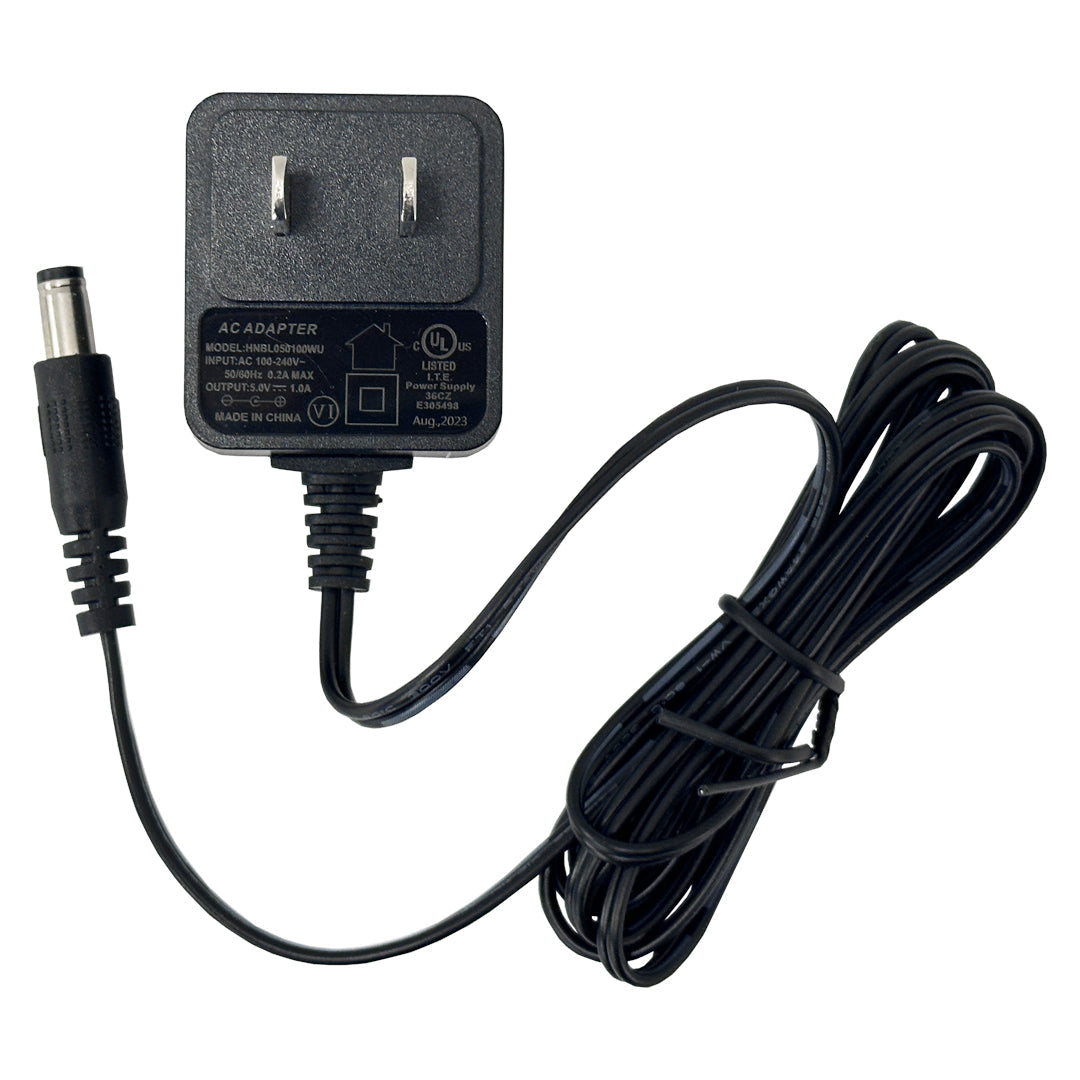

Power supply: 100-240VAC 50/60Hz input to 5VDC 1amp output
| Product | 4-Port HDMI Switch 4Kx2K@60Hz - HDMI 2.0 -YUV4:4:4 -ARC CEC HDR - IR Control |
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | -5℃ ~ +40℃ |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
| Power supply | 100-240VAC 50/60Hz input to 5VDC 1amp output |
| Barrel size | 5.5mm x 2.1mm |
| Minimum power(work under 480p60hz) | 256mA |
| Maximum power(work under 4K2K/60hz) | 383mA |

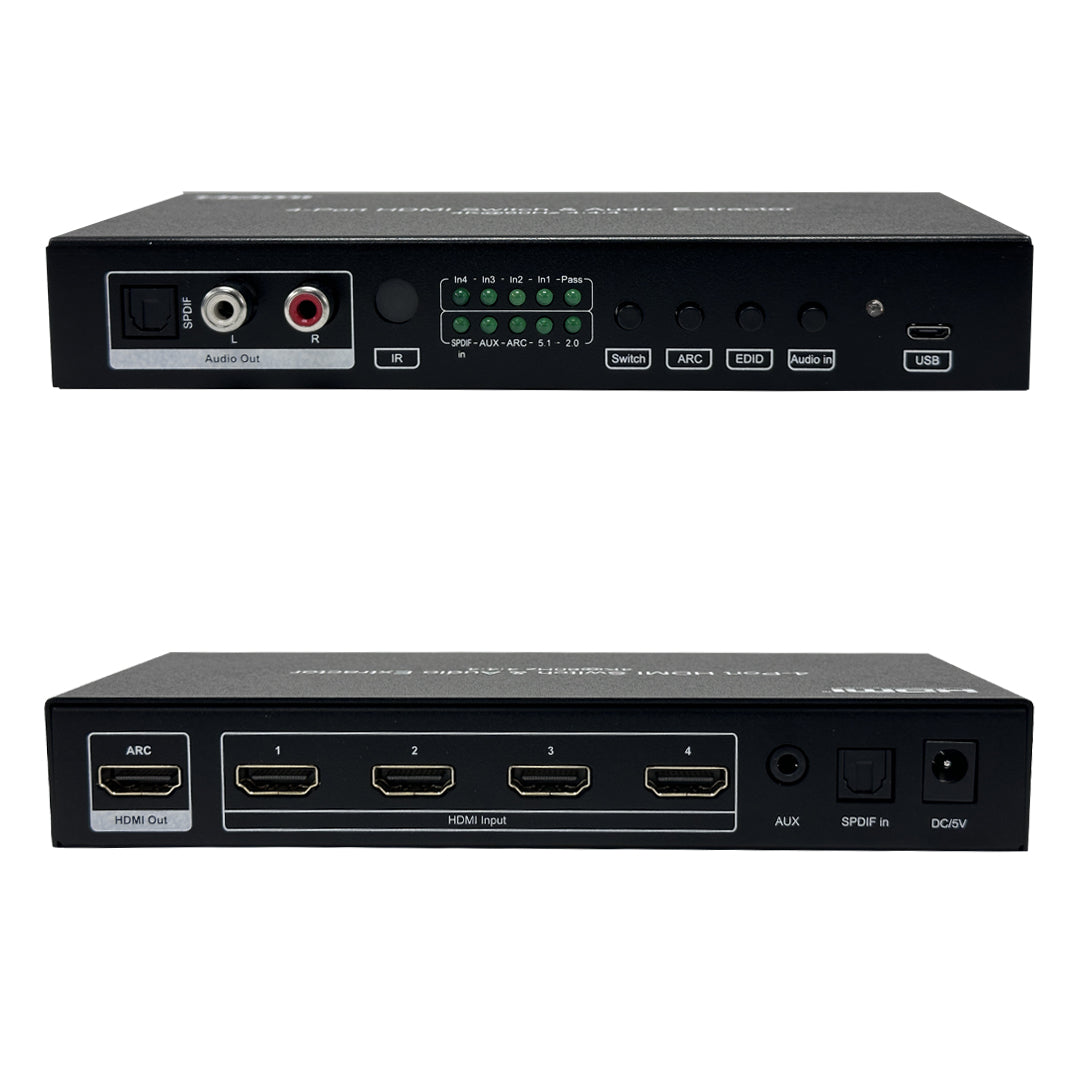

| Input | 4 x HDMI Female |
| Output | 1 x HDMI ARC Female |
| Max Resolution | 4k@60hz YUV4:4:4 |
| Function | ARC HDR10 and CEC(only input) |
| HDMI Version | HDMI 2.0 |
| Bandwidth | 18Gbps |
| HDCP version | HDCP2.2 HDCP1.4(Auto choose depend TV version) |
