4-Port DVI Video Splitter - 4096 x 2160 @ 30Hz
Click the image to zoom

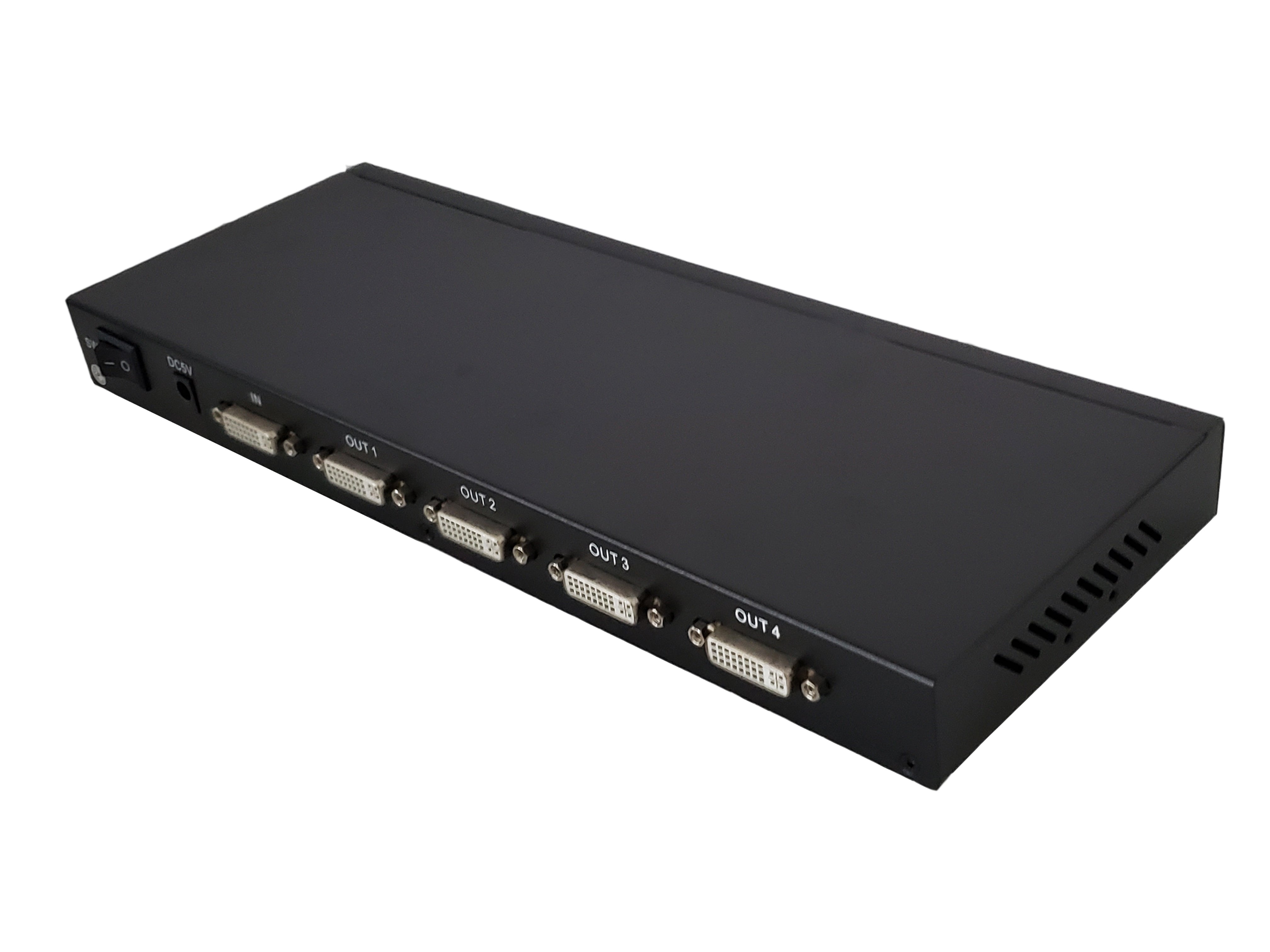

4-Port DVI Video Splitter - 4096 x 2160 @ 30Hz
$109.38
In stock
— ships in 1 business day
Description
This 1x4 DVI splitter enables you to display one DVI source to four DVI displays simultaneously. It is typically used to connect DVI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to DVI displays such as HDTVs, HD projectors or DVI monitors.
Specifications
4-Port DVI Video Splitter - 4096 x 2160 @ 30Hz
This 1x4 DVI splitter enables you to display one DVI source to four DVI displays simultaneously. It is typically used to connect DVI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to DVI displays such as HDTVs, HD projectors or DVI monitors.
Color: Black
Housing: Metal Enclosure
Dimensions: 317L x 120W x 30H mm [12.48L x 4.72W x 1.18H inches]
Operating Temperature: -5 to +45℃
Storage Temperature: -15 to +55℃
| Product | 4-Port DVI Video Splitter - 4096 x 2160 @ 30Hz |
| Color | Black |
| Housing | Metal Enclosure |
| Dimensions | 317L x 120W x 30H mm [12.48L x 4.72W x 1.18H inches] |
| Operating Temperature | -5 to +45℃ |
| Storage Temperature | -15 to +55℃ |
| Operating Humidity | 10 to 90% RH (No Condensation) |
| Storage Humidity | 5 to 95% RH (No Condensation) |
| Video Input Connector | 1 - DVI Female |
| Video Output Connector | 4 - DVI Female |
| Power Adapter | AC 100V ~ 240V 50Hz/60HzDC5V/2A |
| DVI Resolution | Up to 4096 x 2160 @ 30Hz |
| Max Signal Bandwidth | 340MHz |
| Max Baud Rate | 3.4Gbps Serial Link |
| Input/Output TMDS Signal | 0.5~1.5Volts p-p(TTL) |
| Input/Output DDC Signal | 5Volts p-p(TTL) |
