4x2 HDMI 4K Matrix - 4K*2K@60Hz - HDMI 2.0v - YUV 4:4:4 - IR
Click the image to zoom
4x2 HDMI 4K Matrix - 4K*2K@60Hz - HDMI 2.0v - YUV 4:4:4 - IR Control
$176.81
In stock
— ships in 1 business day
Description

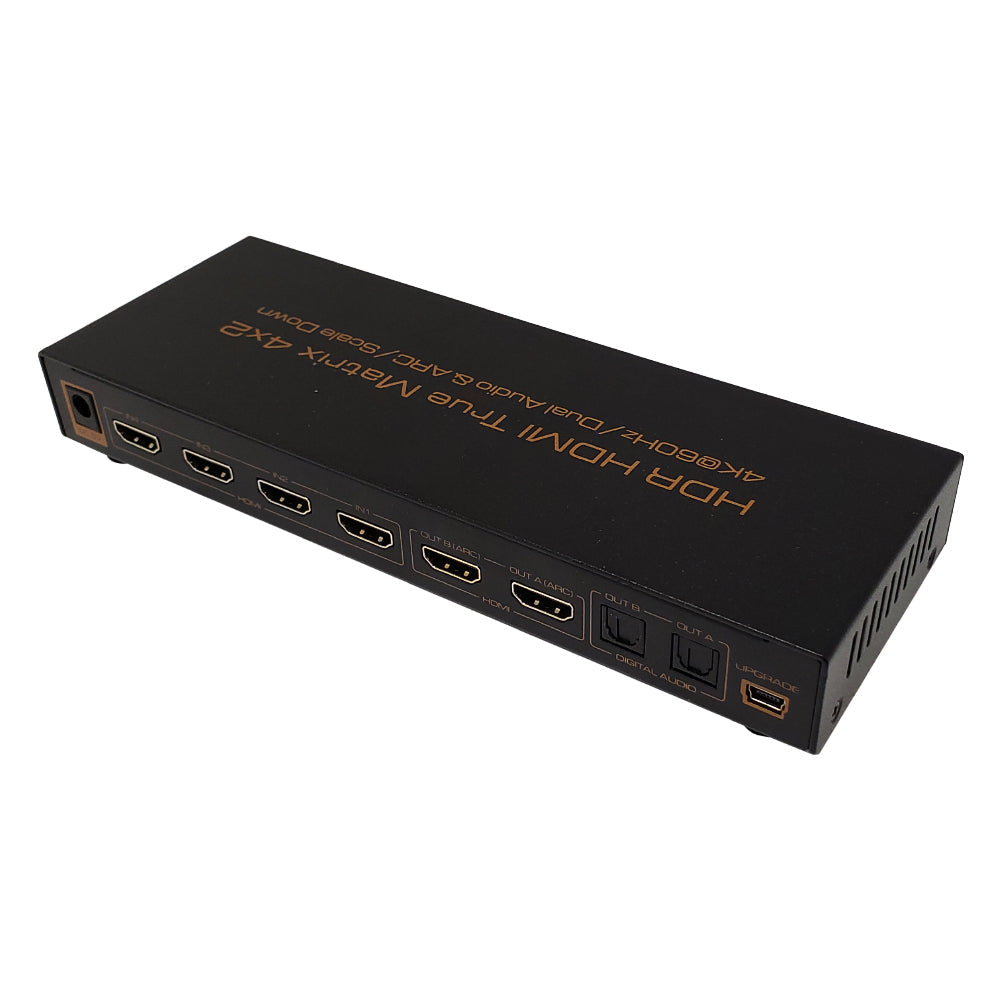

This 4x2 HDMI matrix switch enables you to connect up to four HDMI sources to up to two HDMI displays. Any one of the four inputs can be displayed on any one of the two outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
Specifications
4x2 HDMI 4K Matrix - 4K*2K@60Hz - HDMI 2.0v - YUV 4:4:4 - IR Control
This 4x2 HDMI matrix switch enables you to connect up to four HDMI sources to up to two HDMI displays. Any one of the four inputs can be displayed on any one of the two outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
Color: Black
Housing: Metal Enclosure
Dimensions: 205 x 75 x 30mm
Operating Temperature: -5° ~ 40°C
Operating Humidity Range: 5 to 85% RH (No condensation)
| Product | 4x2 HDMI 4K Matrix - 4K*2K@60Hz - HDMI 2.0v - YUV 4:4:4 - IR Control |
| Color | Black |
| Housing | Metal Enclosure |
| Dimensions | 205 x 75 x 30mm |
| Operating Temperature | -5° ~ 40°C |
| Operating Humidity Range | 5 to 85% RH (No condensation) |
| Storage Temperature | -15° ~ 55°C |
| Storage Humidity | 5 ~ 95% RH (No condensation) |

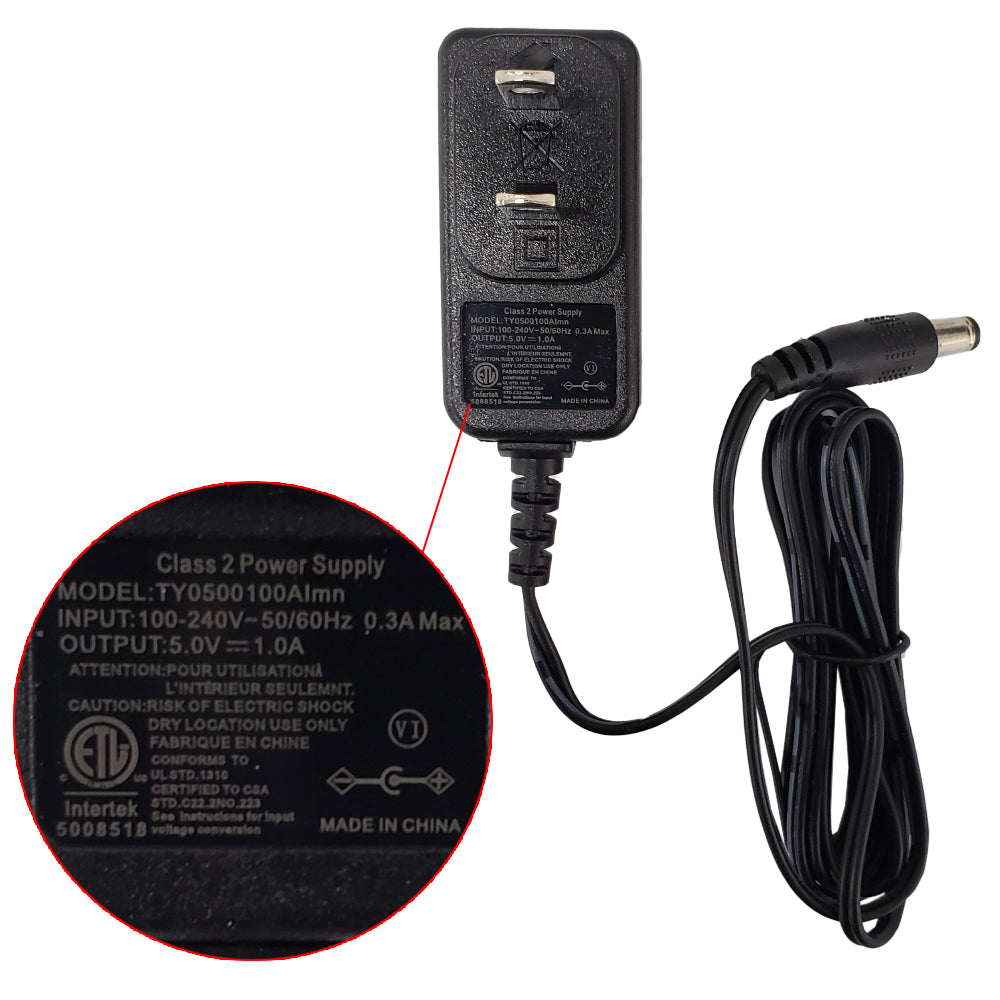

| Power Adapter | Input: AC 100~240VOutput: DC 5V/1A |
| Max Working Current | 500mA |
| Input | 4 x HDMI Female |
| Output | 2 x HDMI Female, 2 x Optical, x 2 AUX |
| Video | 480i / 480p / 576i / 720p / 1080i / 1080p / 2160p (Supports HDR/Dolby Vision) |
| Deep Color | 8/10/12Bit @ 480p / 720p / 1080p8Bit @ 2160p |
| Audio | Dolby HD / DTS HD / Dolby Atoms / Dolby AC3 / DTS / LPCM |
| Transmission | Bandwidth 25~600MHz |
