1x8 HDMI Splitter Extender - 60m (4K 60Hz 4:4:4) with Loop o
Click the image to zoom

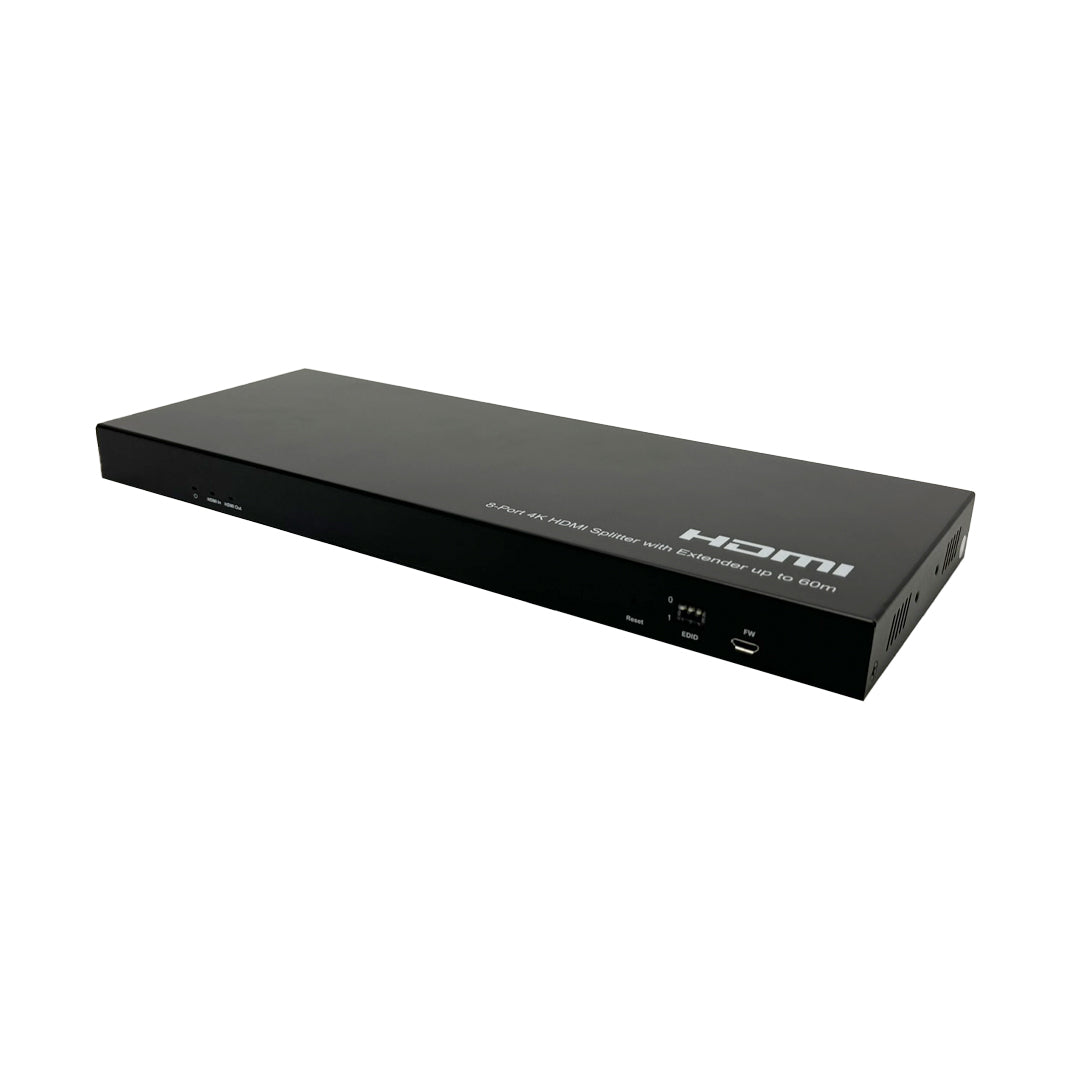

1x8 HDMI Splitter Extender - 60m (4K 60Hz 4:4:4) with Loop out & Receivers
$892.50
In stock
— ships in 1 business day
Description
This 1x8 uncompressed HDMI PoC extender/splitter allows you to extend four displays up to 60m away from your source device over CAT6/6a/7 cables at a resolution of 4K@60Hz or 60m/200ft at a resolution of 1080P@60Hz.
Features
Specifications
1x8 HDMI Splitter Extender - 60m (4K 60Hz 4:4:4) with Loop out & Receivers
This 1x8 uncompressed HDMI PoC extender/splitter allows you to extend four displays up to 60m away from your source device over CAT6/6a/7 cables at a resolution of 4K@60Hz or 60m/200ft at a resolution of 1080P@60Hz. Features
Color: Black
Housing: Metal Enclosure
Operating Temperature: -5℃ ~ 40℃
Operating Humidity: 5 to 90%RH (No Condensation)
Dimensions (L x W x H): TX: 316.5 x 123.4 x 24 mmRX: 110.2 x 68.3 x 18 mm
| Product | 1x8 HDMI Splitter Extender - 60m (4K 60Hz 4:4:4) with Loop out & Receivers |
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | -5℃ ~ 40℃ |
| Operating Humidity | 5 to 90%RH (No Condensation) |
| Dimensions (L x W x H) | TX: 316.5 x 123.4 x 24 mmRX: 110.2 x 68.3 x 18 mm |
| Power Supply | 12V/3A DC Power Adapter |
| Power Consumption | 30W Max. |

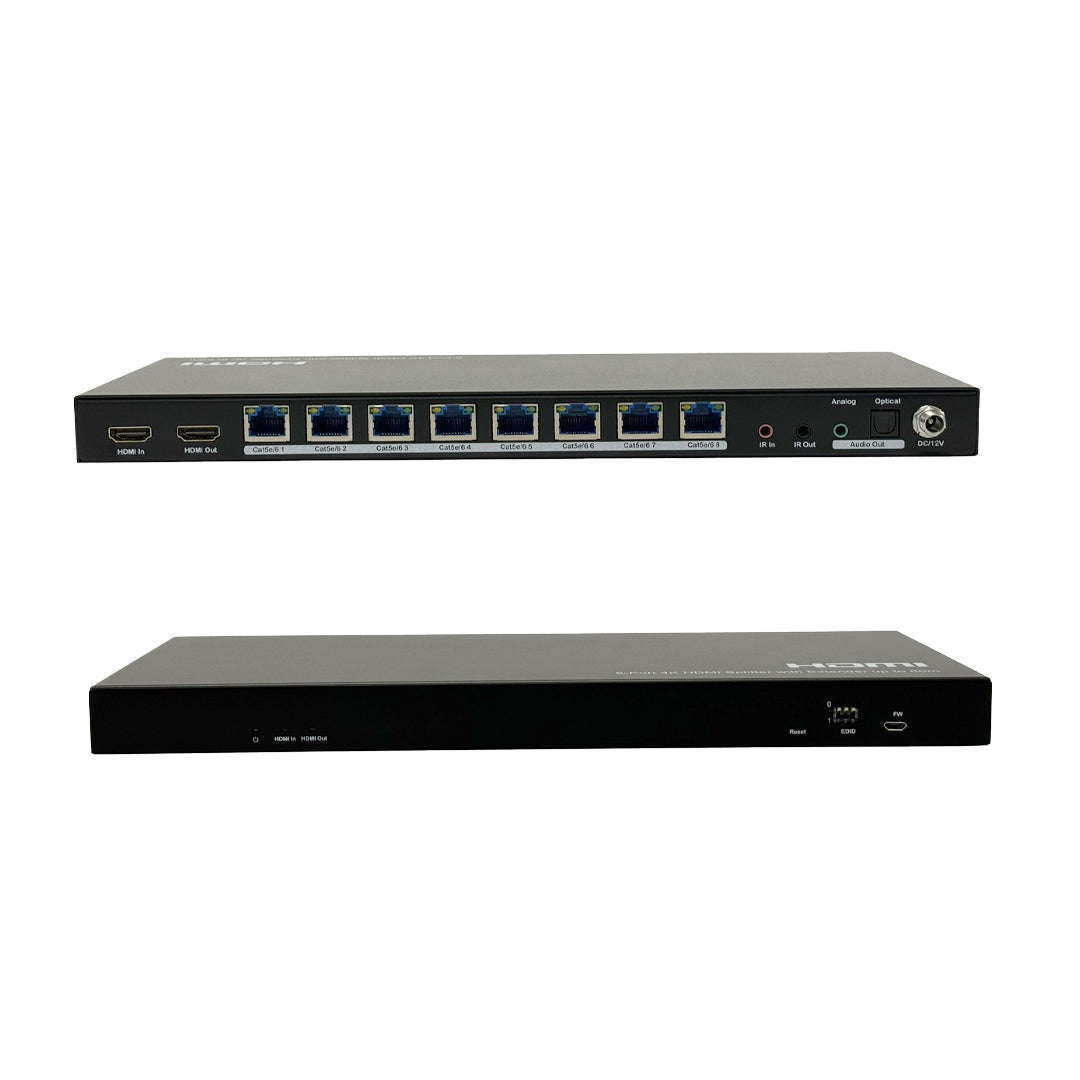

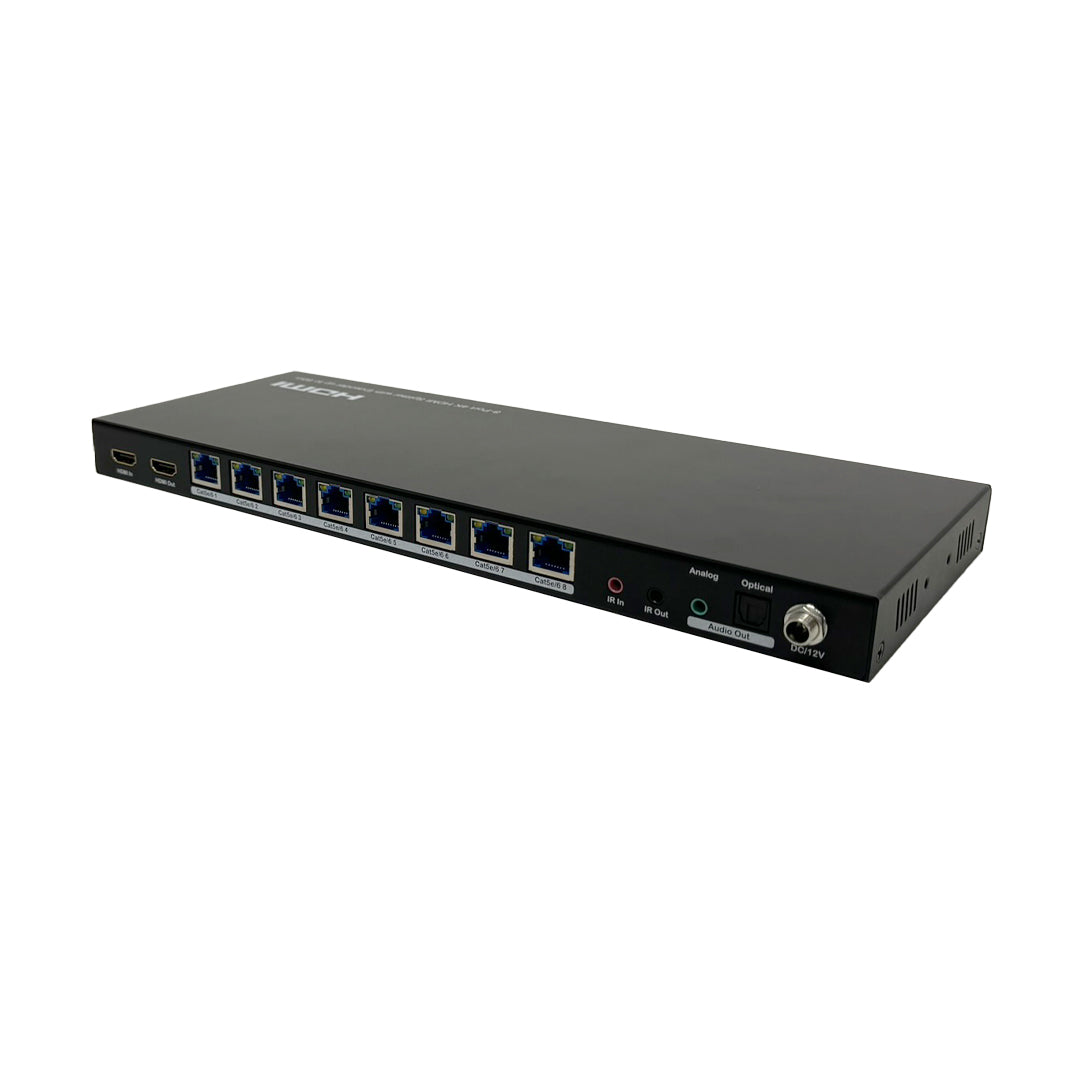

| Transmitter | HDMI Input Female, HDMI Output Female, 8 x RJ45 Female |

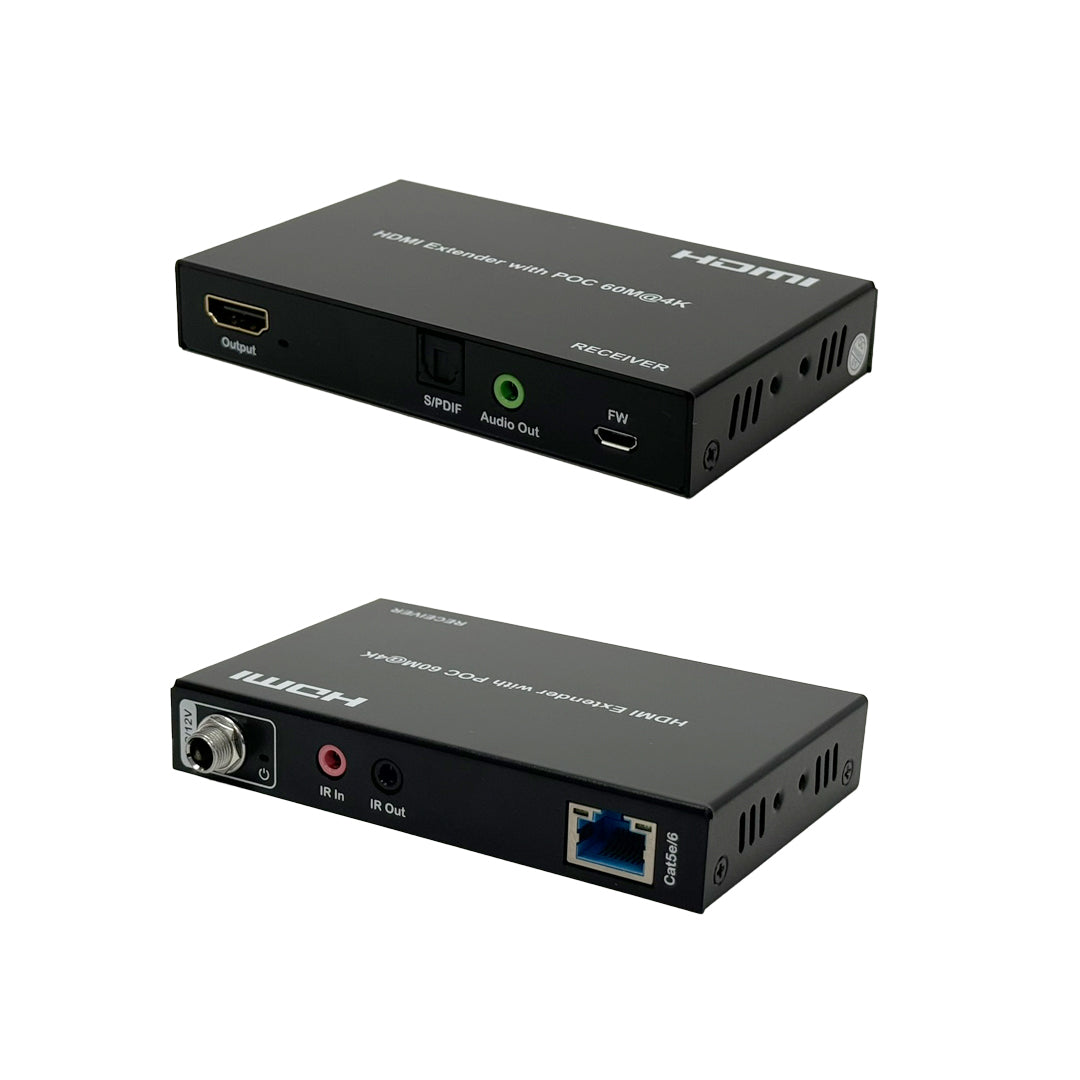

| Receiver | HDMI Output Female, RJ45 Female |
| Input Video Format | 720P/ 1080P/ 4K@60Hz |
| Output Video Format | DTV/HDTV: 480i/ 576i/ 480P/ 576P/ 720P/ 1080P/ 4KVESA Resolution |
| Data transfer Speed | 18 Gbps Max. |
| Transmission Distance | 60m at 4K@60Hz & 90m at 1080p@60Hz |
| HDMI Signal | HDMI 2.0, HDCP 2.2/1.4 Compliant |
| Power Adapter | c(UL)us |
