HDMI 8-port Extender Over One Cat6 Cable - 4K@30Hz YUV 4:4:4
Click the image to zoom
HDMI 8-port Extender Over One Cat6 Cable - 4K@30Hz YUV 4:4:4 - 40m
$781.25
In stock
— ships in 1 business day
Description
This 8 port HDMI video extender allows you to extend a maximum of eight 3D/HD displays up to 131ft (40 meters) away from your source device over Cat6 cables at a resolution of 4Kx2K@30Hz. It also has a single HDMI output for a local monitor. *Please note that the transmitter must be placed in a well ventilated area to avoid overheating.
Specifications
HDMI 8-port Extender Over One Cat6 Cable - 4K@30Hz YUV 4:4:4 - 40m
This 8 port HDMI video extender allows you to extend a maximum of eight 3D/HD displays up to 131ft (40 meters) away from your source device over Cat6 cables at a resolution of 4Kx2K@30Hz. It also has a single HDMI output for a local monitor. *Please note that the transmitter must be placed in a well ventilated area to avoid overheating.
Color: Black
Housing: Metal Enclosure
Dimensions: Transmitter: 295 x 82 x 18mm (W x D x H)Receiver: 79.5 x 69 x 16.5mm (W x D x H)
Operating Temperature: 0C to +40C (+32F to +104F)
Storage Temperature: -20C to +60C (+-4F to +140F)
| Product | HDMI 8-port Extender Over One Cat6 Cable - 4K@30Hz YUV 4:4:4 - 40m |
| Color | Black |
| Housing | Metal Enclosure |
| Dimensions | Transmitter: 295 x 82 x 18mm (W x D x H)Receiver: 79.5 x 69 x 16.5mm (W x D x H) |
| Operating Temperature | 0C to +40C (+32F to +104F) |
| Storage Temperature | -20C to +60C (+-4F to +140F) |
| Relative Humidity | 20~90% RH (non-condensing) |

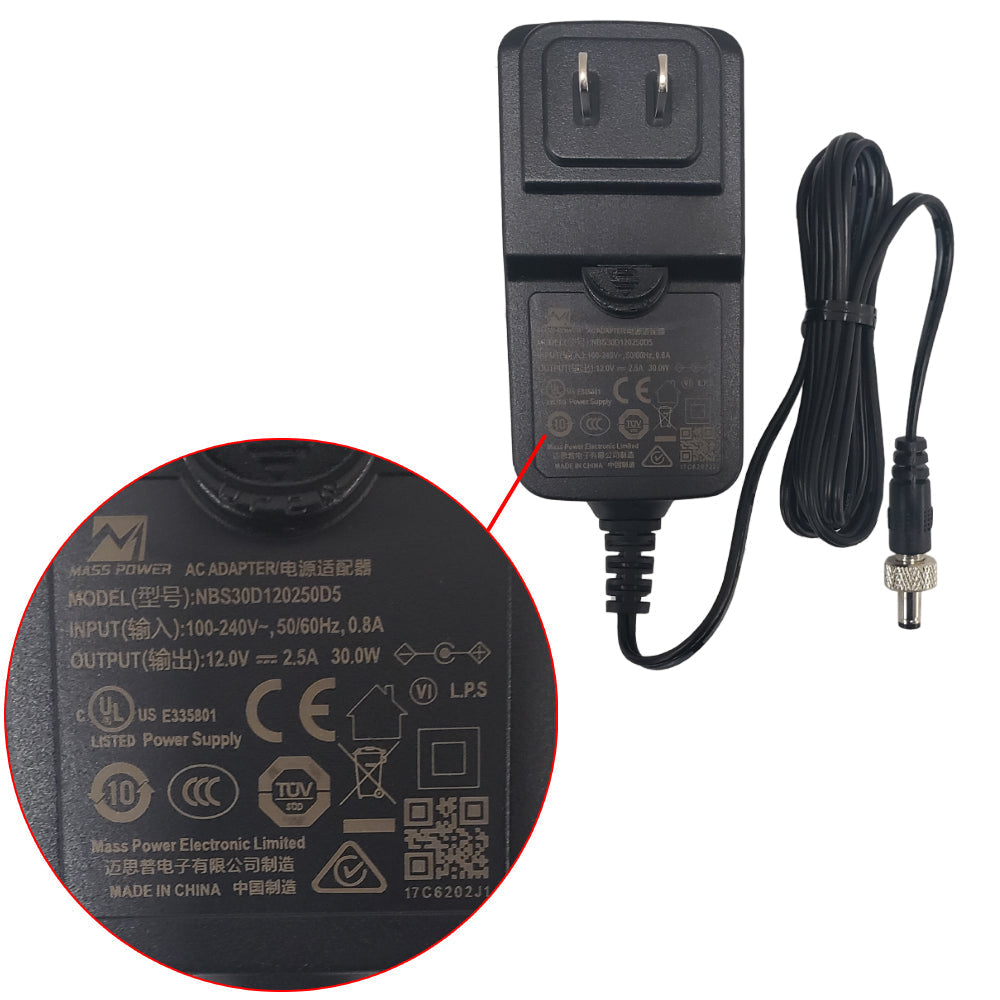

| Power Supply | 12V/2.5A DC Power (US/EU Standards, CE/FCC/RoHS Certified) |
| Power Consumption | 19.2W |

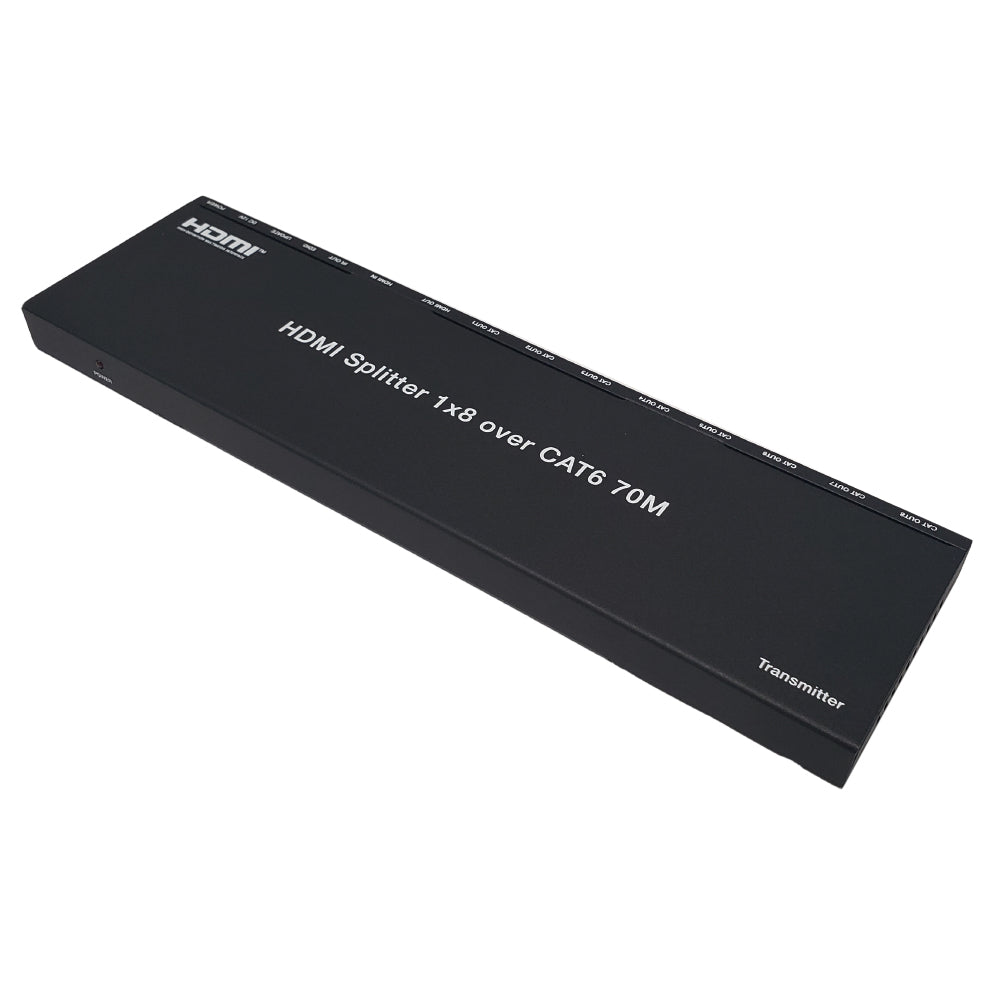

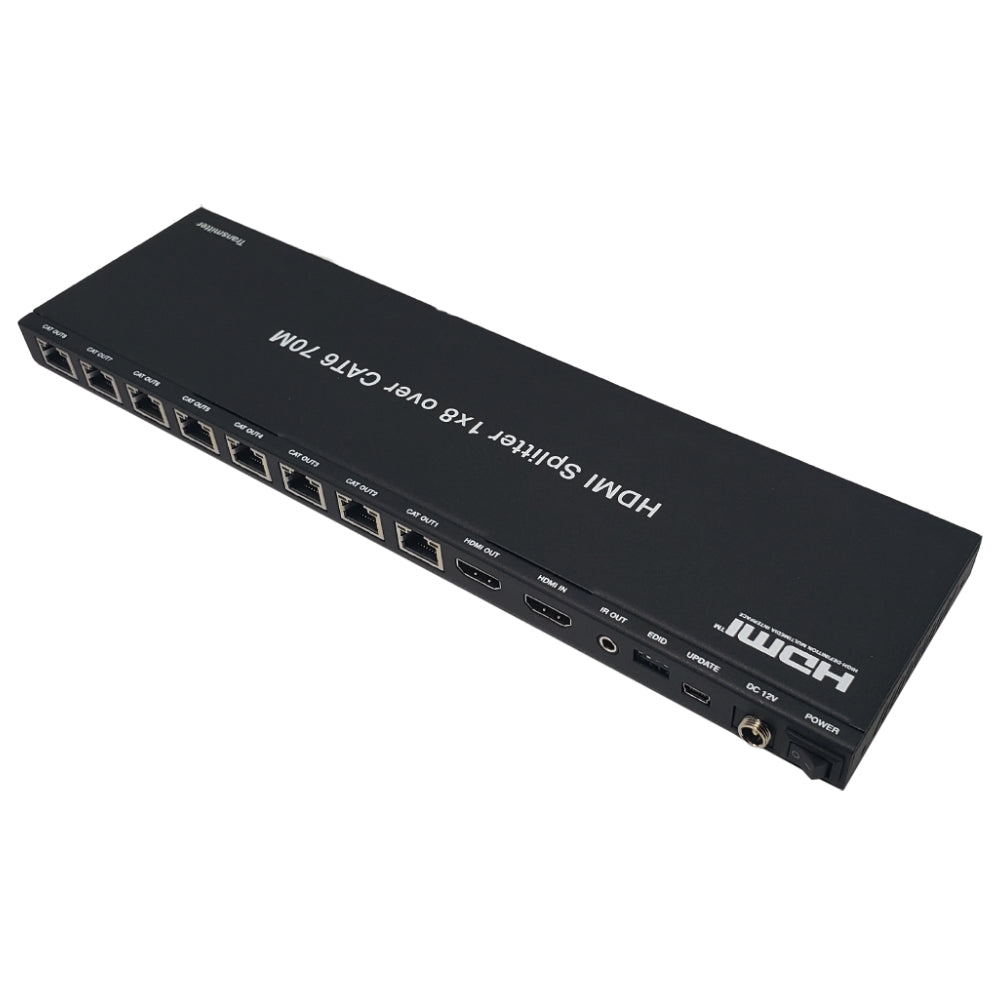

| Transmitter x 1 | 1 - HDMI Female Input1 - HDMI Female Output8 -RJ45 Female Output1 - IR Output1 - EDID Dip Switch1 - Micro USB Update Port |

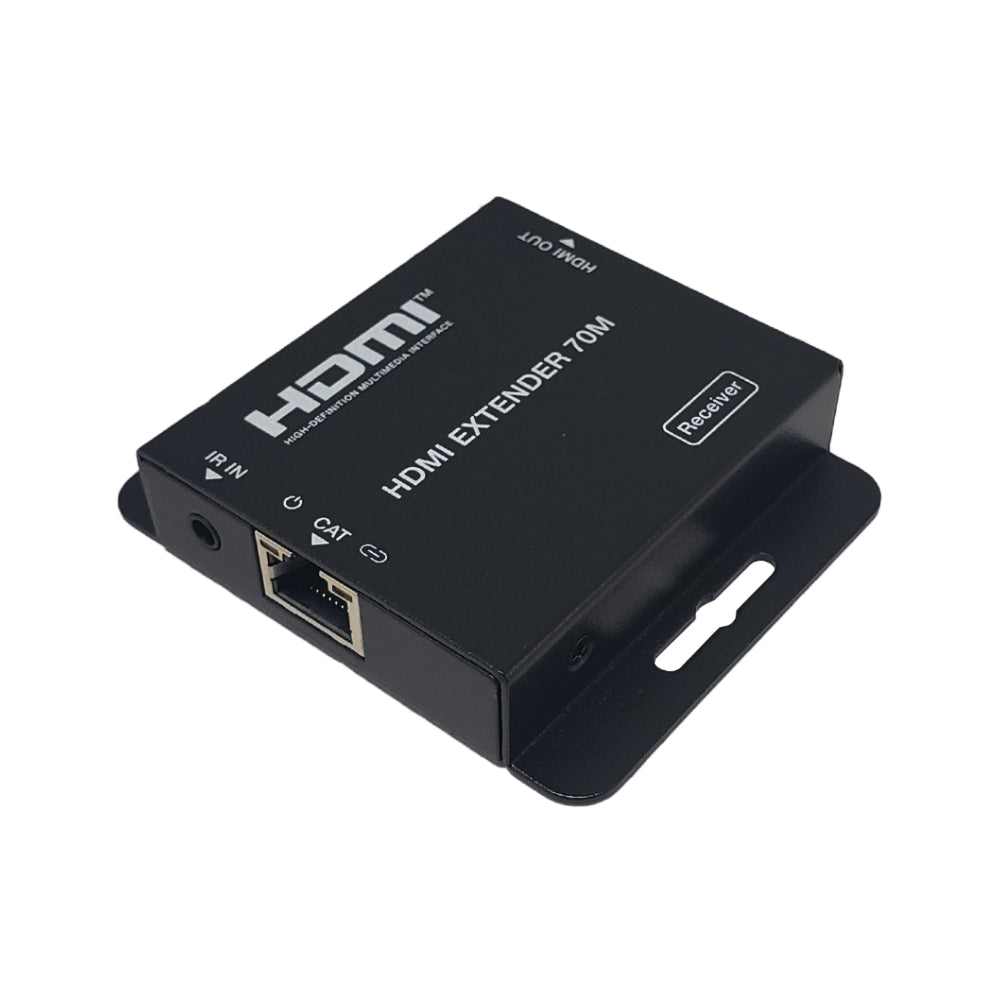

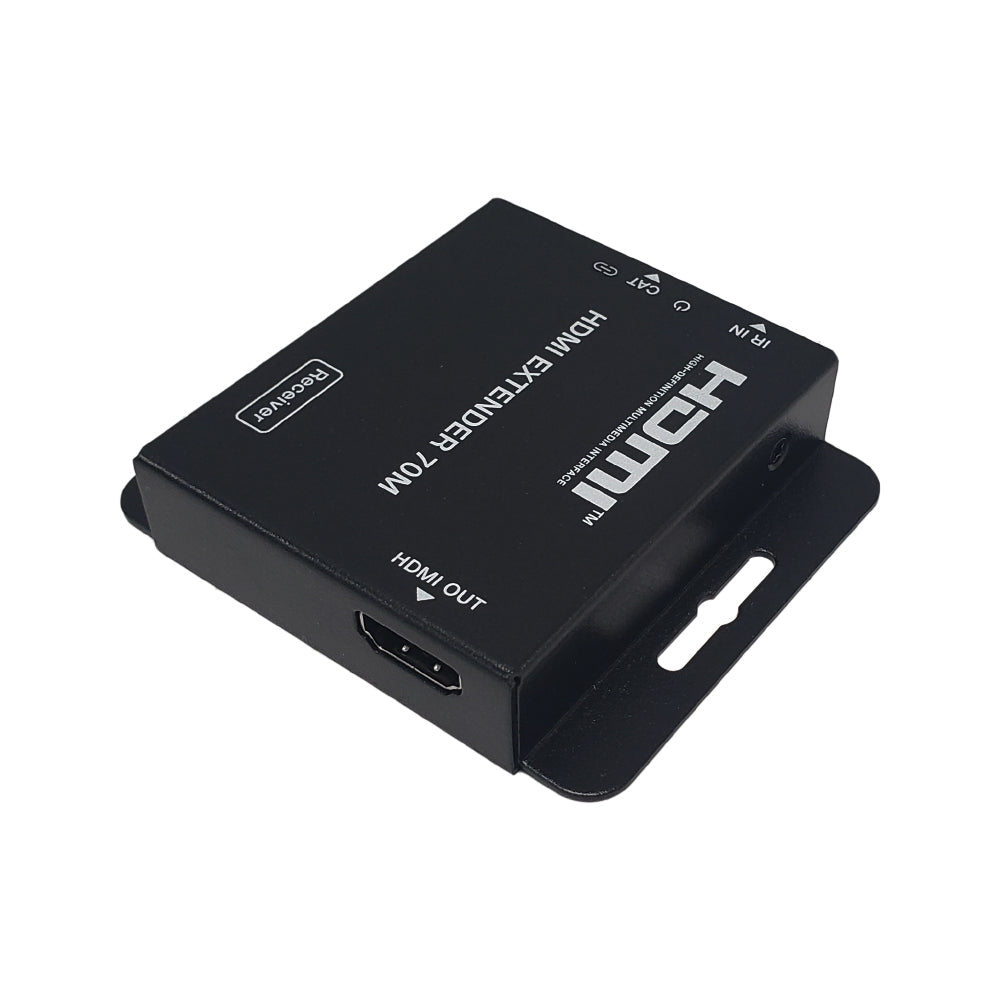

| Receiver x 8 | 1 - HDMI Female Output 1 - RJ45 Female Input |
| Video Bandwidth | 297MHz/10.2Gbps |
| Video Resolution | 480i ~1080p50/60Hz, 4Kx2K@30Hz (4:4:4) |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K@30Hz) |
| Color Space | RGB, YCbCr 4:4:4/4:2:2. YUV 4:2:0 |
| Audio Formats | LCPM 7.1CH, Dolby True HD and DTS-HD Master Audio |
