HDMI Extender, 70m 4K@60Hz 4:4:4 w/ HDMI Loop out, IR, ARC a
Click the image to zoom

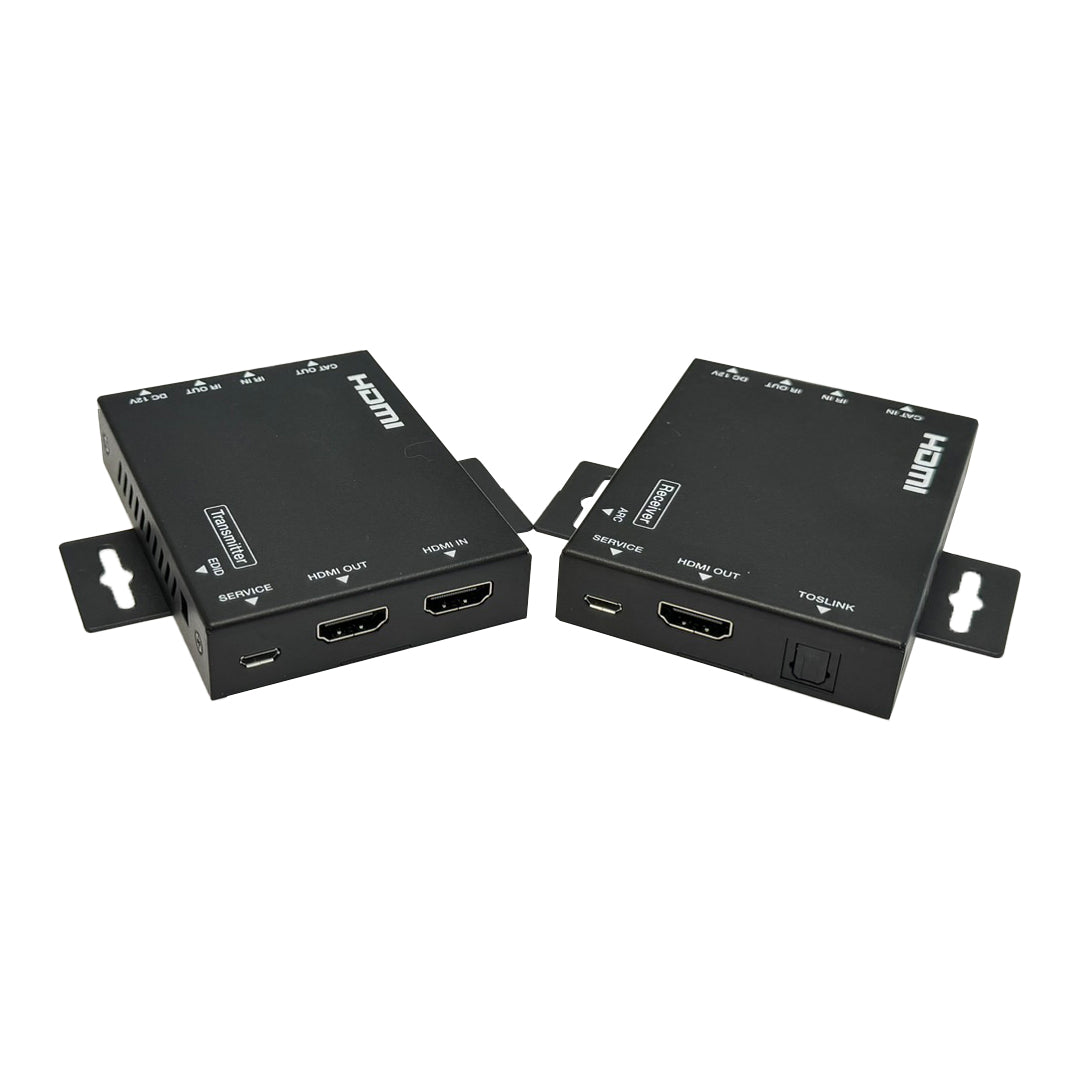

HDMI Extender, 70m 4K@60Hz 4:4:4 w/ HDMI Loop out, IR, ARC and Audio Extraction
$243.75
In stock
— ships in 1 business day
Description
This HDMI extender allows you to extend your display up to 70m away from your source device over Cat6/6A cables at a resolution of4K@60Hz with audio extraction and HDMI loop out.
Features:
Specifications
HDMI Extender, 70m 4K@60Hz 4:4:4 w/ HDMI Loop out, IR, ARC and Audio Extraction
This HDMI extender allows you to extend your display up to 70m away from your source device over Cat6/6A cables at a resolution of4K@60Hz with audio extraction and HDMI loop out. Features:
Color: Black
Housing: Metal Enclosure
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -20℃ ~ 60℃
Relative Humidity: 20 ~ 90% RH (non-condensing)
| Product | HDMI Extender, 70m 4K@60Hz 4:4:4 w/ HDMI Loop out, IR, ARC and Audio Extraction |
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0℃ ~ 40℃ |
| Storage Temperature | -20℃ ~ 60℃ |
| Relative Humidity | 20 ~ 90% RH (non-condensing) |
| Dimensions | Tx/Rx : 90mm x 68mm x 18mm |
| Power Consumption | 3.36 W Max. |
| Power Supply | DC 12 Volt, 1Amp; Support bi-directional POC function |
| Transmitter | Input: 1 x HDMI IN (Type A, 19-pin female)Output: 1 x HDMI OUT (RJ45) 1 x CAT OUT (RJ45)Control: 1 x Service (Micro-USB Jack) 1 x IR IN (3.5mm Stereo Mini-Jack) 1 x IR OUT (3.5mm Stereo Mini-Jack) |
| Receiver | Input: 1 x CAT IN (RJ45)Output: 1 x HDMI OUT (Type A, 19-pin female) 1 x TOSLINKControl: 1 x Service (Micro-USB Jack) 1 x IR IN (3.5mm Stereo Mini-Jack) 1 x IR OUT (3.5mm Stereo Mini-Jack) |
| HDMI Compliant | HDMI 2.0b |
| HDCP Compliant | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4KsK@60Hz RGB/YCBCR 4:4:4 |
| IR Level | 5Vp-p |
