3GHz 90dB Digital Splitters 8-Way
Click the image to zoom
3GHz 90dB Digital Splitters 8-Way
$14.13
In stock
— ships in 1 business day
Description

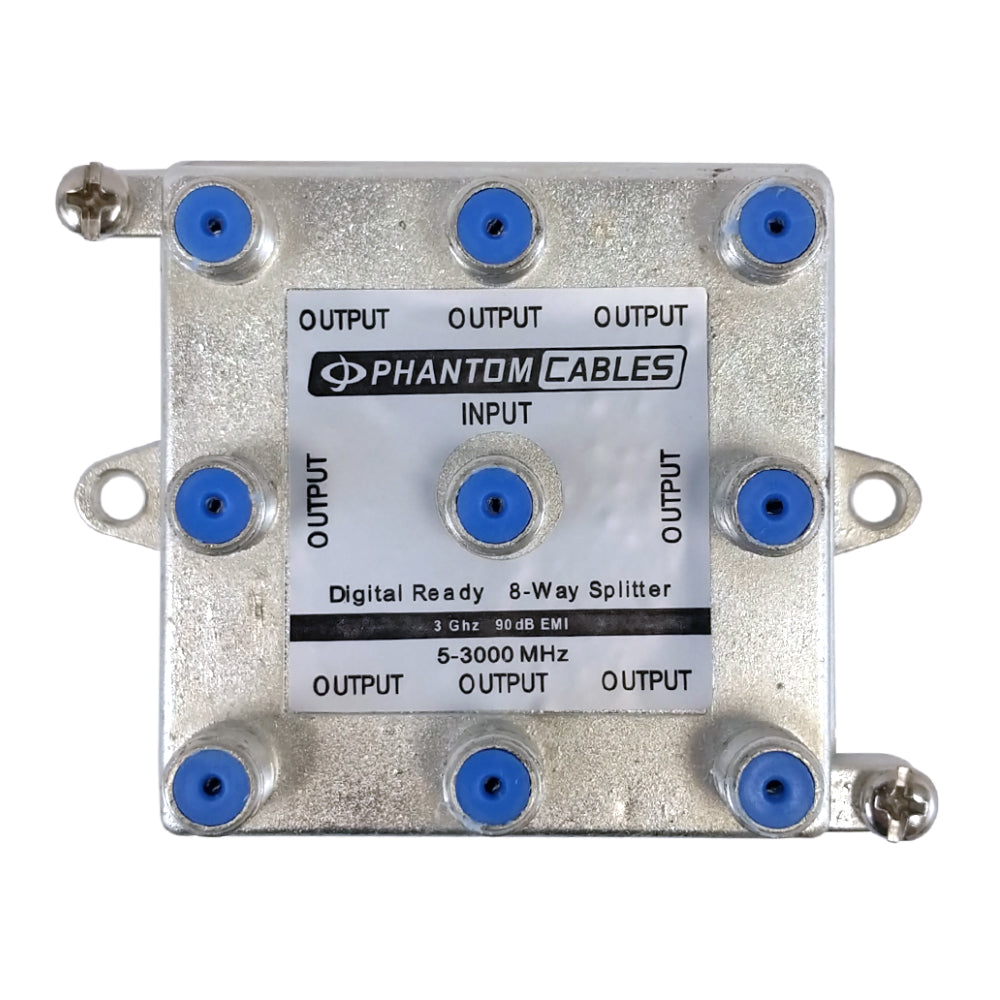

This digital splitter has a F-Type female input on one side and eight F-Type female outputs on the other side. It is typically used to split broadband or CATV 5-3000MHz 75Ω Ohm sources such as hybrid distribution networks, HDTV, voice, data, modem and digital converter applications to dual outputs.
Specifications
3GHz 90dB Digital Splitters 8-Way
This digital splitter has a F-Type female input on one side and eight F-Type female outputs on the other side. It is typically used to split broadband or CATV 5-3000MHz 75Ω Ohm sources such as hybrid distribution networks, HDTV, voice, data, modem and digital converter applications to dual outputs.
Color: Silver
Contacts: Gold-Plated Beryllium-Copper Two-Prong
Housing: Metal Enclosure
Shielding: EMI-RFI
Circuitry: High-Performance Printed Board
| Product | 3GHz 90dB Digital Splitters 8-Way |
| Color | Silver |
| Contacts | Gold-Plated Beryllium-Copper Two-Prong |
| Housing | Metal Enclosure |
| Shielding | EMI-RFI |
| Circuitry | High-Performance Printed Board |
| Frequency | 3GHz |
| Impedance | 75Ω |
| Amplitude | 90dB (min) |
| Loss at 1GHz | 12.8dB |
| Loss at 3GHz | 18.5dB |
| Mounting Holes | 2 |
| Frequency (Type (dB)) | 5-40MHz ≥ 1840-1000MHz ≥ 201000-2150MHz ≥ 202150-2500MHz ≥ 192150-3000MHz ≥ 16 |
| Input | 1 x F-Type Female input |
| Output | 8 x F-Type Female output |
| RoHS | Compliant |
