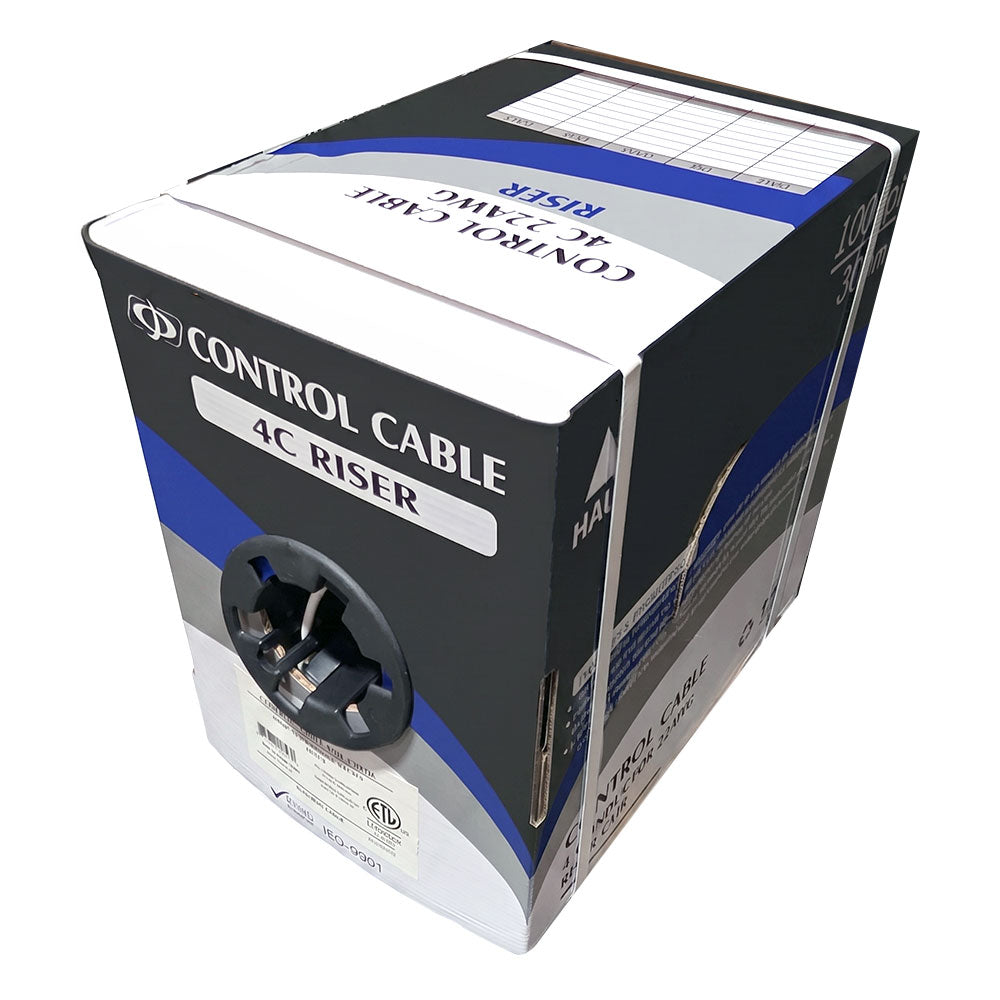

1000ft 4C 22AWG Stranded Control Cable - CMR Riser - White
$166.25
In stock
— ships in 1 business day
Description
This 4 conductor 22AWG stranded control cable ensures reliable performance in automation and control systems. It is the ideal choice for industrial control panels, automation infrastructure, and commercial systems. Packaged in a 1000ft easy-pull box, this cable is engineered for seamless installation, featuring a durable PVC jacket and a built-in ripcord for efficient stripping.
Features
Specifications
1000ft 4C 22AWG Stranded Control Cable - CMR Riser - White
This 4 conductor 22AWG stranded control cable ensures reliable performance in automation and control systems. It is the ideal choice for industrial control panels, automation infrastructure, and commercial systems.
Cable Length: 1000 foot [305m] Pull Box
Jacket Color: White
Number of Conductors: 4 Conductors (Black, Red, White, Green)
Jacket Material: PVC - Polyvinyl Chloride
Stranding: 7*0.254mm
| Product | 1000ft 4C 22AWG Stranded Control Cable - CMR Riser - White |
| Cable Length | 1000 foot [305m] Pull Box |
| Jacket Color | White |
| Number of Conductors | 4 Conductors (Black, Red, White, Green) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Stranding | 7*0.254mm |
| Nominal Jacket thickness | 0.45mm |
| Nominal Overall Diameter | 4.5mm |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nominal Insulation Thickness | 0.38mm |
| Nominal Insulation Diameter | 2.2 mm |
| Wire Gauge | 22 AWG |
| Maximum Voltage | 300V |
| Material (conductors) | Stranded Copper |
| Ripcord | Yes |
| Shielding | Unshielded |
