1000ft 4C 22AWG Stranded Shielded Control Cable - CMR Riser
Click the image to zoom

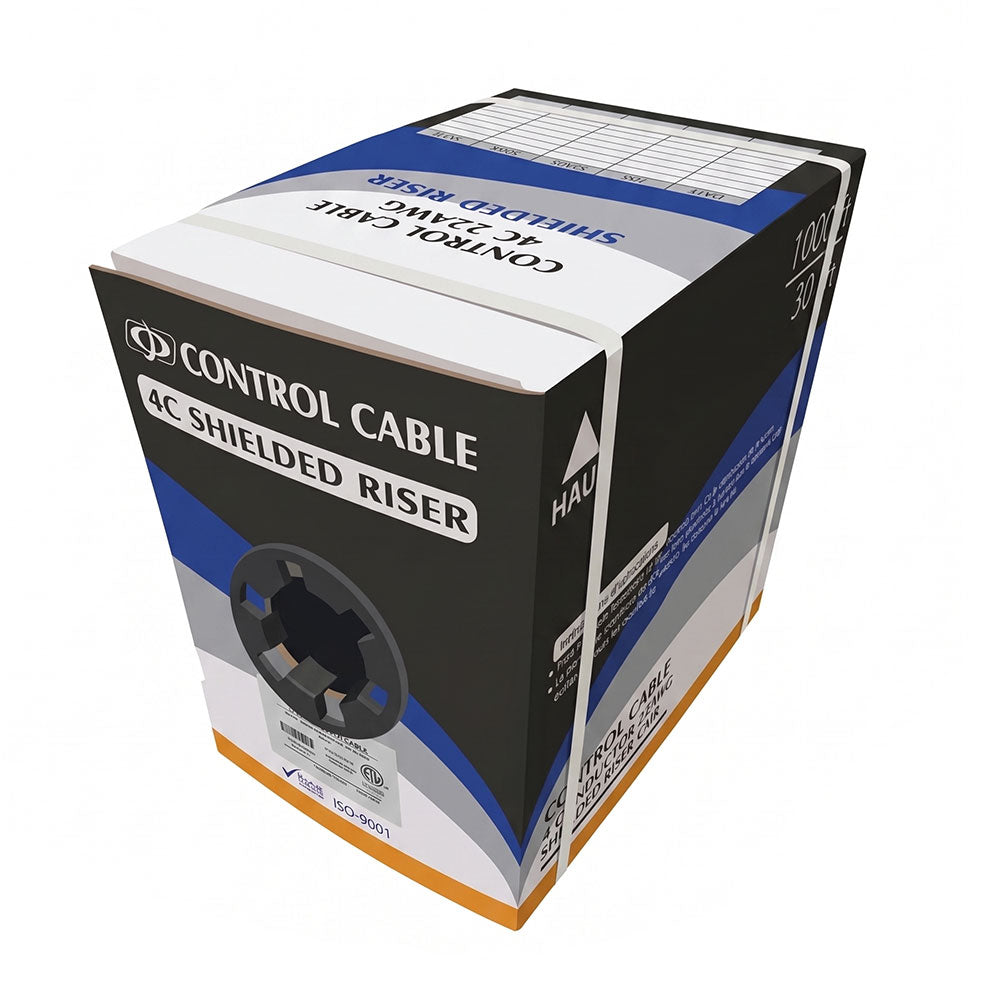

1000ft 4C 22AWG Stranded Shielded Control Cable - CMR Riser - White
$197.50
In stock
— ships in 1 business day
Description
This 4 conductor 22AWG stranded shielded control cable ensures reliable performance in automation and control systems. It provides superior protection against signal interference, making it the ideal choice for industrial control panels, automation infrastructure, and commercial systems. Packaged in a 1000ft easy-pull box, this cable is engineered for seamless installation, featuring a durable PVC jacket and a built-in ripcord for efficient stripping.
Features
Specifications
1000ft 4C 22AWG Stranded Shielded Control Cable - CMR Riser - White
This 4 conductor 22AWG stranded shielded control cable ensures reliable performance in automation and control systems. It provides superior protection against signal interference, making it the ideal choice for industrial control panels, automation infrastructure, and commercial systems.
Cable Length: 1000 foot [305m] Pull Box
Jacket Color: White
Number of Conductors: 4 Conductors (Black, Red, White, Green)
Jacket Material: PVC - Polyvinyl Chloride
Stranding: 7*0.254mm
| Product | 1000ft 4C 22AWG Stranded Shielded Control Cable - CMR Riser - White |
| Cable Length | 1000 foot [305m] Pull Box |
| Jacket Color | White |
| Number of Conductors | 4 Conductors (Black, Red, White, Green) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Stranding | 7*0.254mm |
| Nominal Jacket thickness | 0.45mm |
| Nominal Overall Diameter | 4.7mm |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nominal Insulation Thickness | 0.38mm |
| Nominal Insulation Diameter | 2.2 mm |
| Wire Gauge | 22 AWG |
| Maximum Voltage | 300V |
| Material (conductors) | Stranded Copper |
| Ripcord | Yes |
| Shielding | Overall Foil Shielded 110% |
