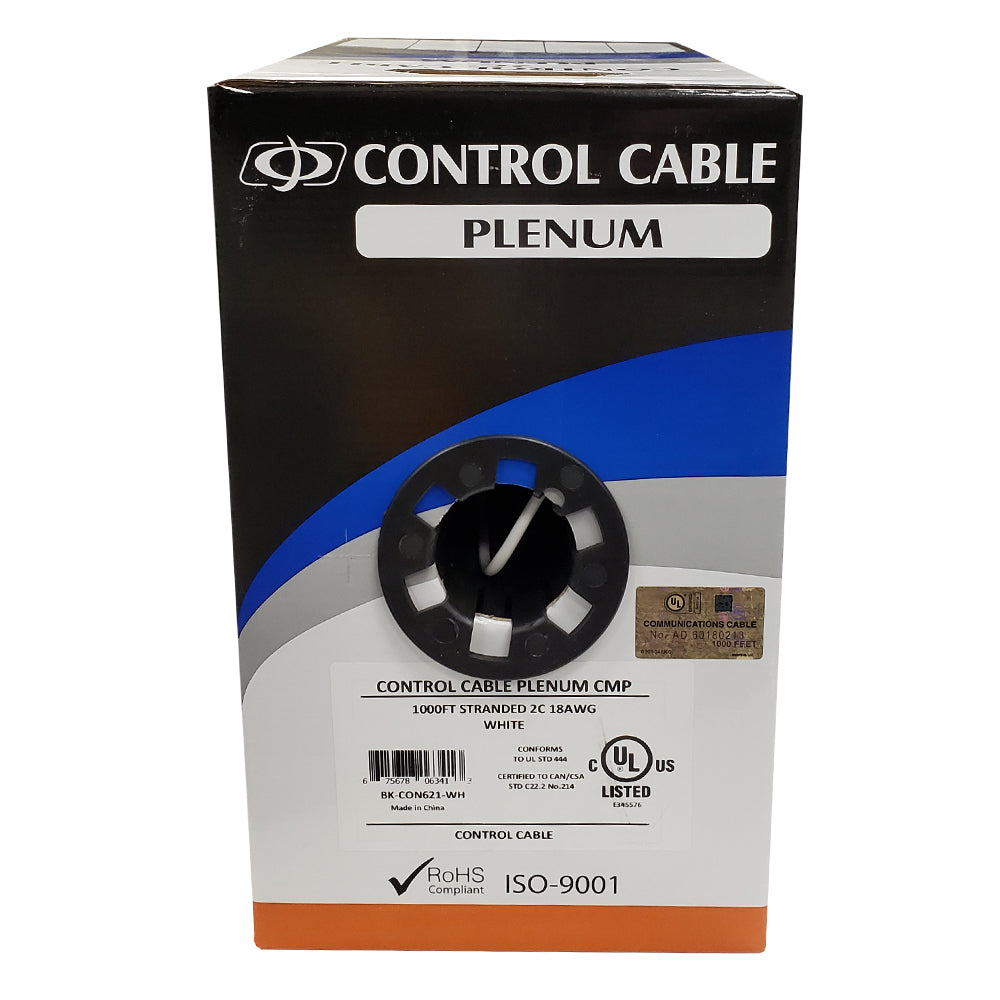

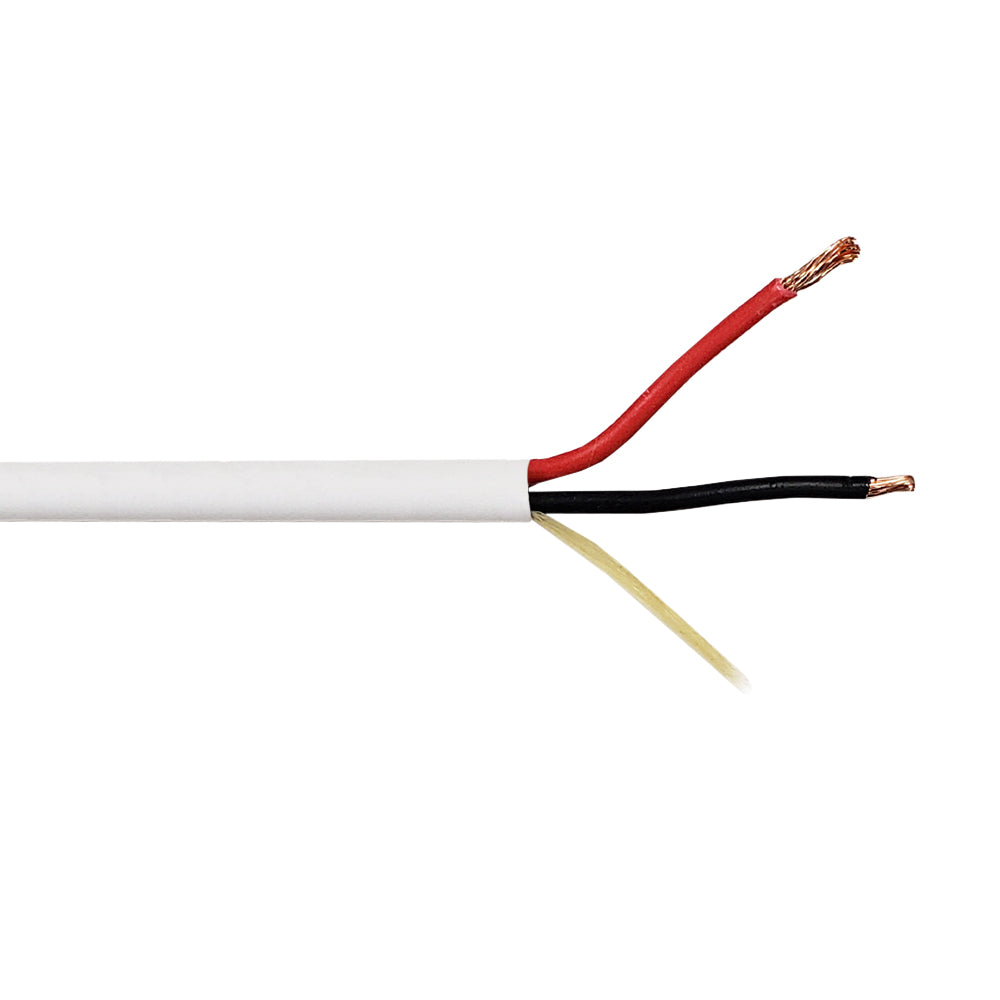

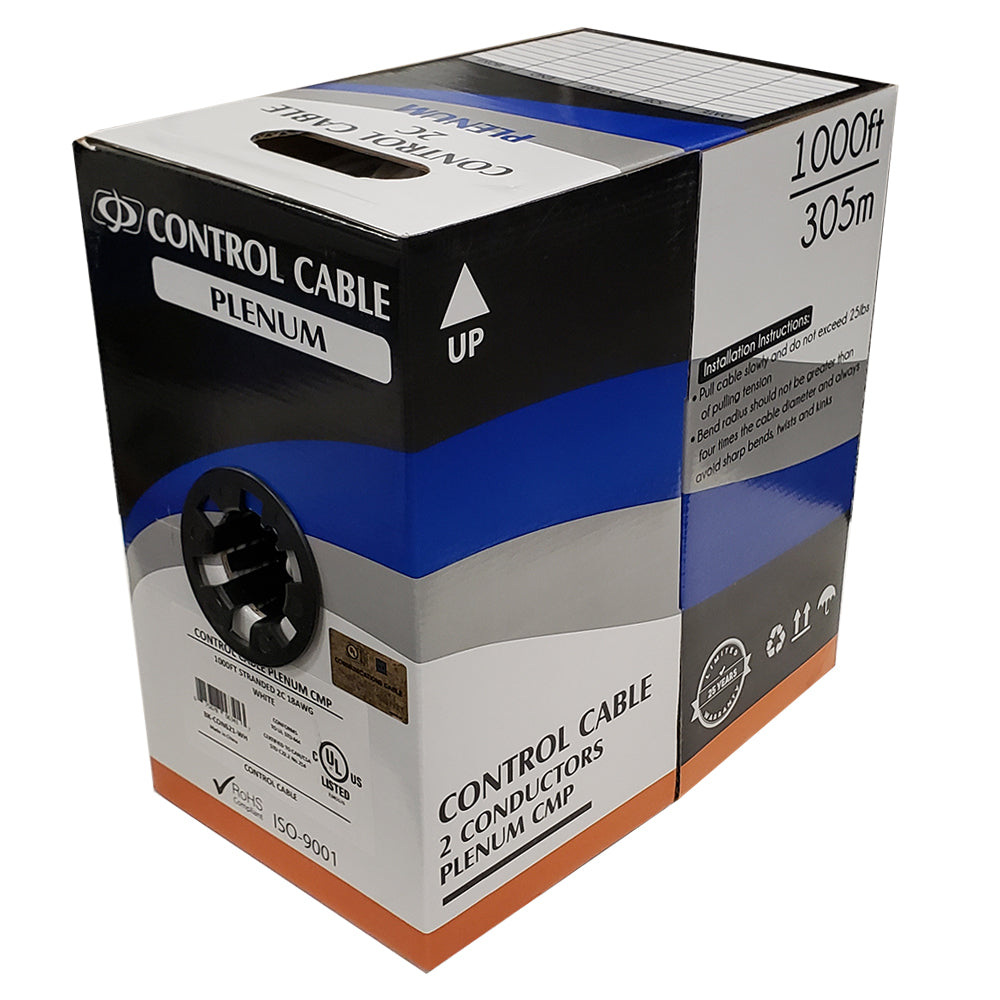

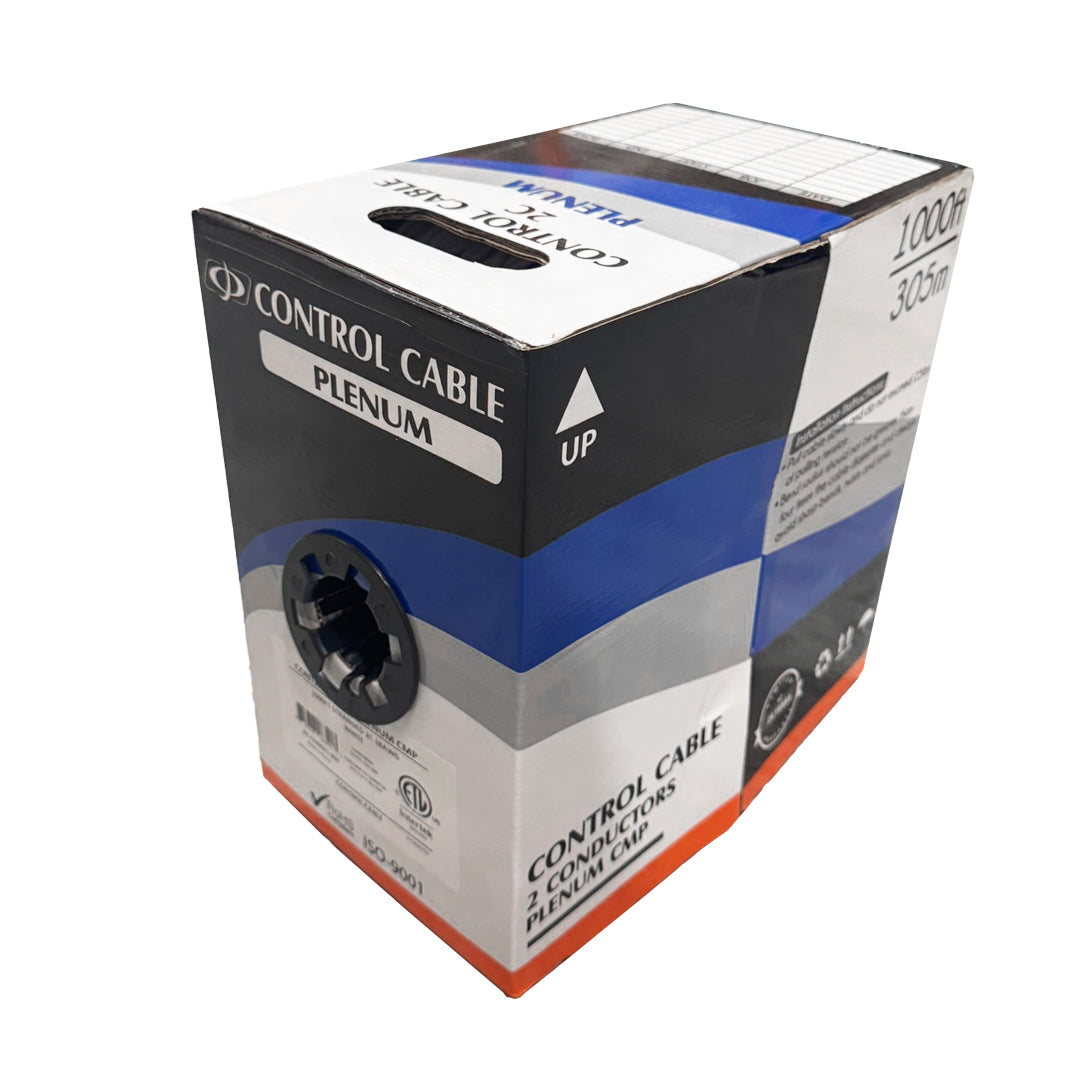

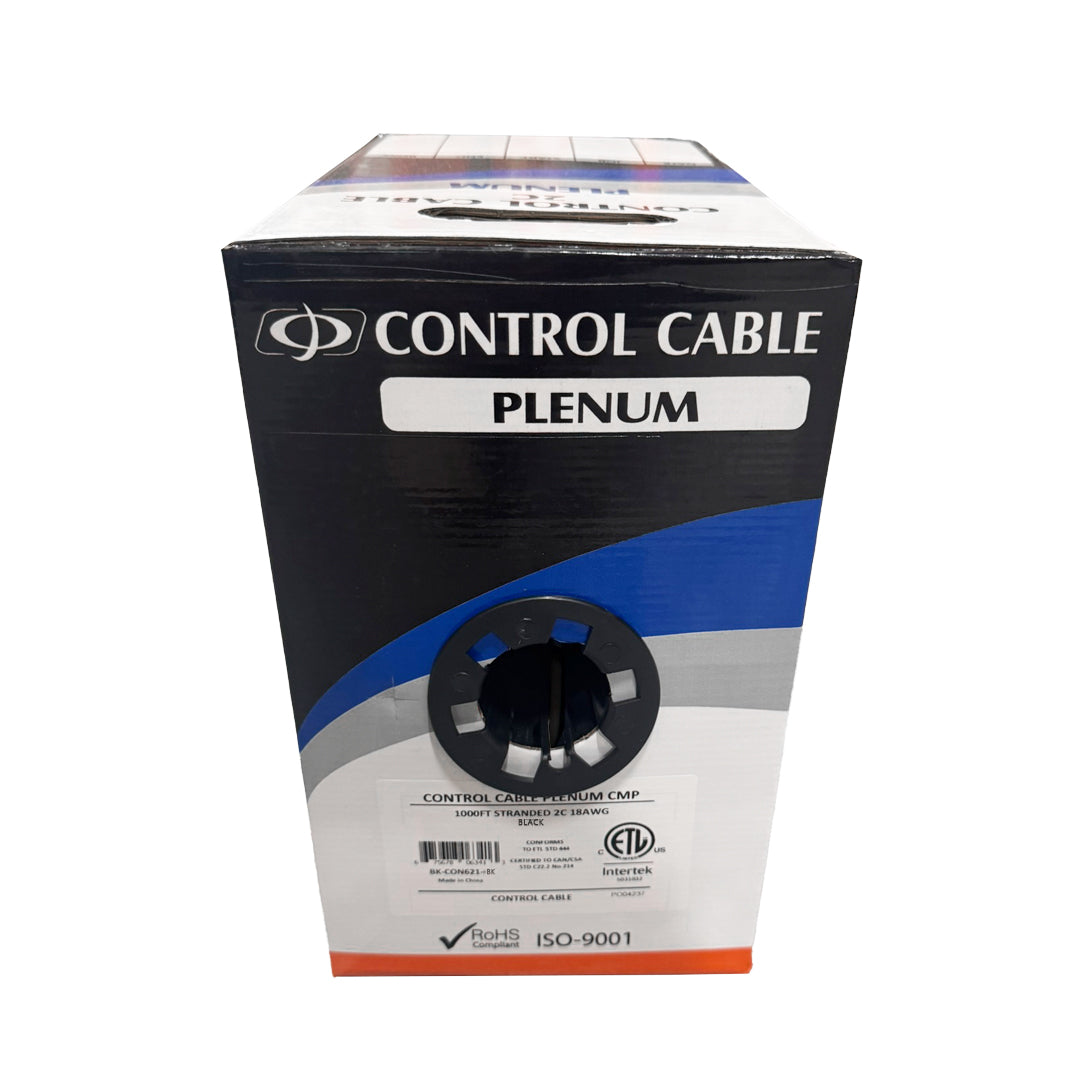

1000ft 2C 18AWG Stranded Control Cable - CMP Plenum
Click the image to zoom
1000ft 2C 18AWG Stranded Control Cable - CMP Plenum
$267.50
In stock
— ships in 1 business day
Description
This 2 conductor 18AWG stranded unshielded control cable is 1000 feet in length. It is typically used in control panel and automation control applications.
Specifications
1000ft 2C 18AWG Stranded Control Cable - CMP Plenum
This 2 conductor 18AWG stranded unshielded control cable is 1000 feet in length. It is typically used in control panel and automation control applications.
Cable Lengths Available: 1000 foot [305m] Pull Box
Color (jacket): Black/White
Number of Conductors: 2 Conductors (Red/Black)
Jacket Material: PVC - Polyvinyl Chloride
Min Average Jacket Thickness: 0.38mm
| Product | 1000ft 2C 18AWG Stranded Control Cable - CMP Plenum |
| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (jacket) | Black/White |
| Number of Conductors | 2 Conductors (Red/Black) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Min Average Jacket Thickness | 0.38mm |
| Jacket Outer Diameter | 4.6 +/- 0.20mm |
| Insulation Material | PVC - Polyvinyl Chloride |
| Min Average Insulation Thickness | 0.24mm |
| Insulation Outer Diameter | 1.7 +/- 0.05mm |
| Min. Ave. Jacket Thickness | 0.36 mm |
| Wire Gauge | 18 AWG |
| Maximum Voltage | 300V |
| Material (conductors) | Bare Copper |
| Ripcord | DuPont Kevlar® |
| Conductor Resistance | 21.8 ohms/km (at 20℃ Max) |
