1000ft 2C 18AWG Stranded Control Cable - CMR
Click the image to zoom
1000ft 2C 18AWG Stranded Control Cable - CMR
$191.25
In stock
— ships in 1 business day
Description
This 2 conductor 18AWG stranded unshielded control cable is white in color and 1000 feet in length. It is typically used in control panel and automation control applications.
Specifications
1000ft 2C 18AWG Stranded Control Cable - CMR
This 2 conductor 18AWG stranded unshielded control cable is white in color and 1000 feet in length. It is typically used in control panel and automation control applications.

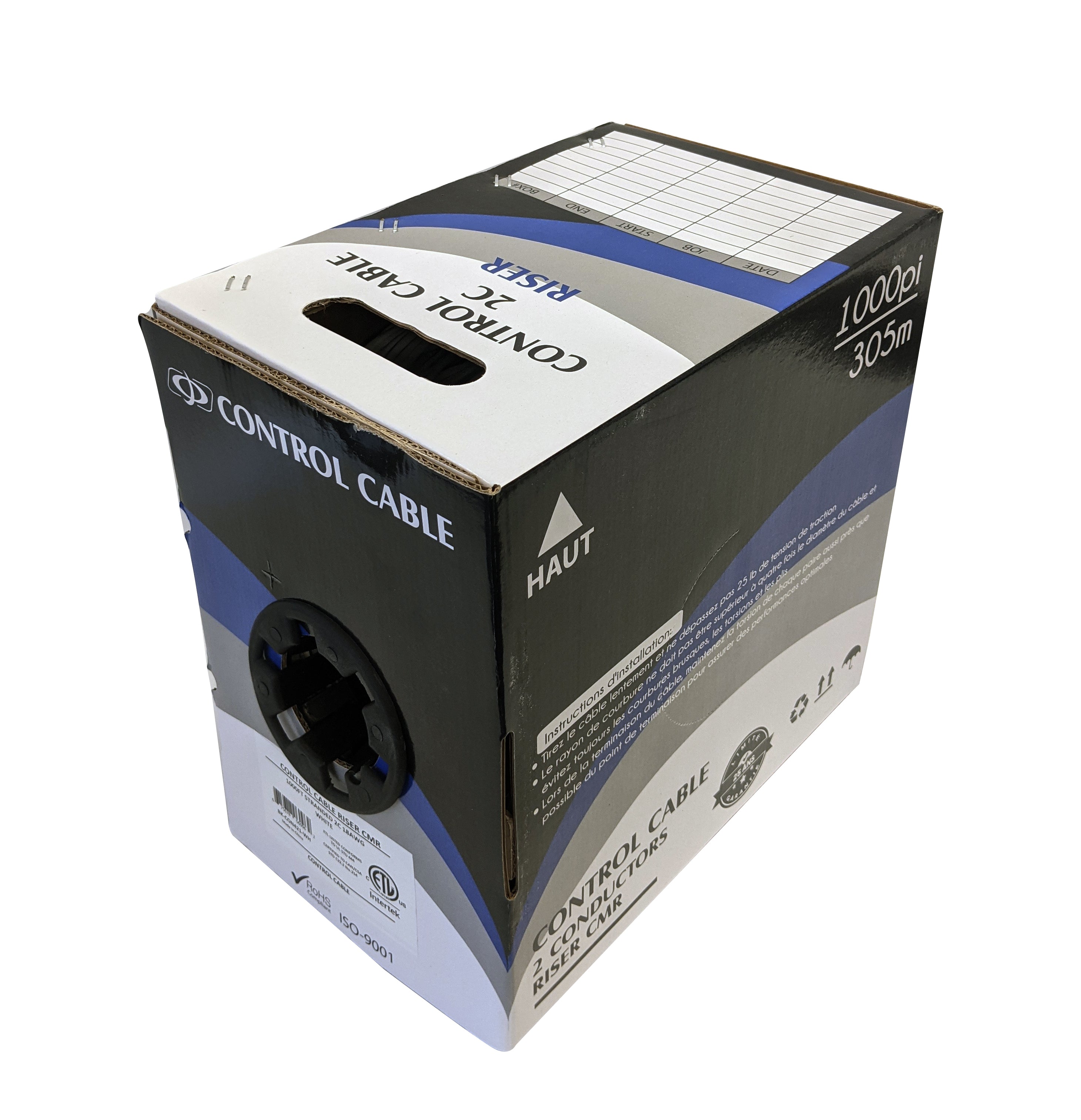

Cable Lengths Available: 1000 foot [305m] Pull Box
Color (jacket): Black / White
Number of Conductors: 2 Conductors (Red/Black)
Jacket Material: PVC - Polyvinyl Chloride
Nominal Jacket Thickness: 0.45mm
| Product | 1000ft 2C 18AWG Stranded Control Cable - CMR |
| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (jacket) | Black / White |
| Number of Conductors | 2 Conductors (Red/Black) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nominal Jacket Thickness | 0.45mm |
| Nominal Overall Diameter | 5.1mm |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nominal Insulation Thickness | 0.38mm |
| Nominal Insulation Diameter | 1.9mm |
| Min. Ave. Jacket Thickness | 0.36 mm |
| Wire Gauge | 18 AWG |
| Maximum Voltage | 300V |
| Material (conductors) | Bare Copper - Oxygen-Free |
| Stranding | 16*30AWG |
| Temperature Rating | -20℃ ~ 75℃ |
