1000ft 4C 18AWG Stranded Control Cable - CMP Shielded - Whit
Click the image to zoom

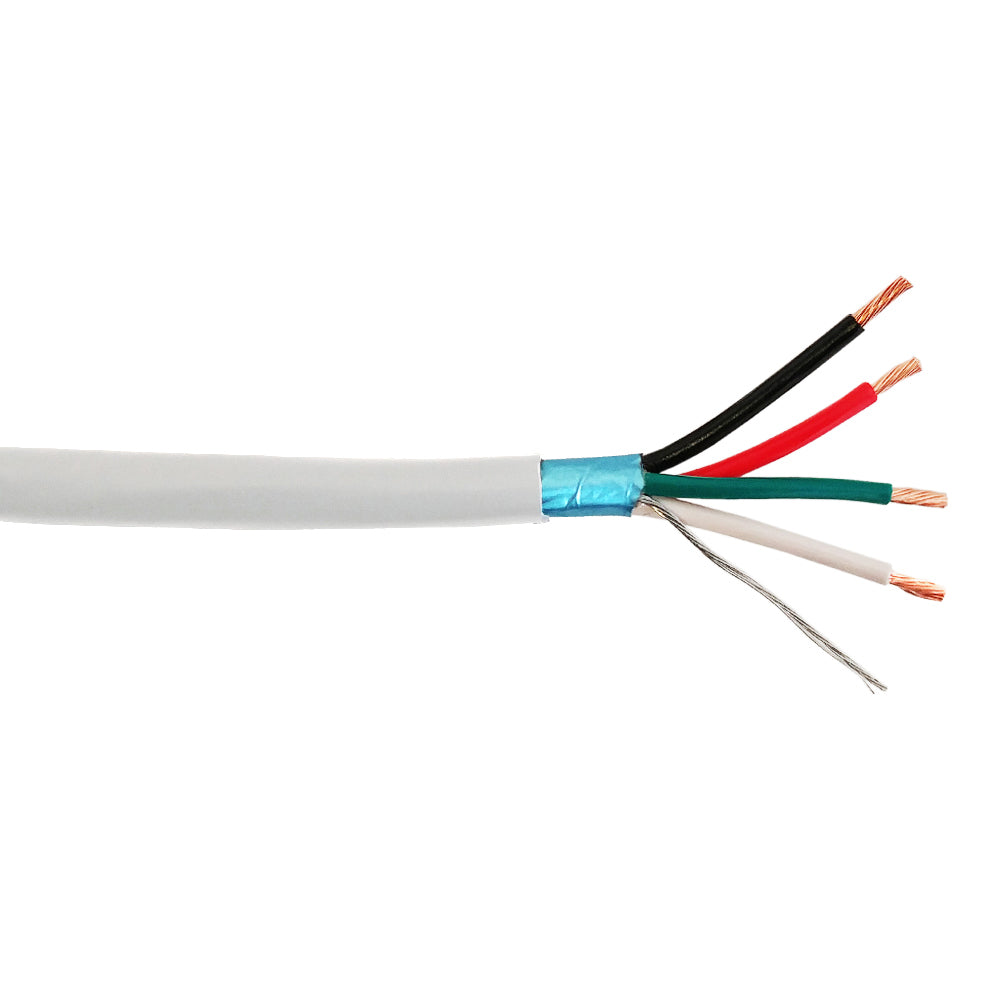

1000ft 4C 18AWG Stranded Control Cable - CMP Shielded - White
$592.50
In stock
— ships in 1 business day
Description
This 4 conductor 18AWG stranded shielded control cable is white in color and 1000 feet in length. It is typically used in control panel and automation control applications.
Specifications
1000ft 4C 18AWG Stranded Control Cable - CMP Shielded - White
This 4 conductor 18AWG stranded shielded control cable is white in color and 1000 feet in length. It is typically used in control panel and automation control applications.
Cable Lengths Available: 1000 foot [305m] Pull Box
Color (Jacket): White
Number of Conductors: 4 Conductors (Black/Red/Green/White) Oxygen Free Copper (OFC)
Jacket Material: PL-PVC
Outer Diameter: 5.5mm±0.15mm
| Product | 1000ft 4C 18AWG Stranded Control Cable - CMP Shielded - White |
| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (Jacket) | White |
| Number of Conductors | 4 Conductors (Black/Red/Green/White) Oxygen Free Copper (OFC) |
| Jacket Material | PL-PVC |
| Outer Diameter | 5.5mm±0.15mm |
| Wire Gauge | 18 AWG |
| Material (conductors) | Bare Copper |
| Stranding | 16/0.25mm |
| Insulation Material | PVC |
| Nominal Insulation Thickness | 0.46mm |
| Nominal Insulation Diameter | 1.7mm |
| Shielding | PET :100% Coverage with 25% Overlapping |
| Drain Wire | 24AWG Stranded Tinned Copper Overlapping |
| Ripcord | DuPont Kevlar® |
| Temperature Rating | -20℃ ~ 75℃ |
