1000ft 6C 22AWG Stranded Control Cable - CMR Shielded - Whit
Click the image to zoom
1000ft 6C 22AWG Stranded Control Cable - CMR Shielded - White
$282.50
In stock
— ships in 1 business day
Description
This 6 conductor 22AWG stranded shielded control cable is white in color and 1000 feet in length. It is typically used in control panel and automation control applications.
Specifications
1000ft 6C 22AWG Stranded Control Cable - CMR Shielded - White
This 6 conductor 22AWG stranded shielded control cable is white in color and 1000 feet in length. It is typically used in control panel and automation control applications.

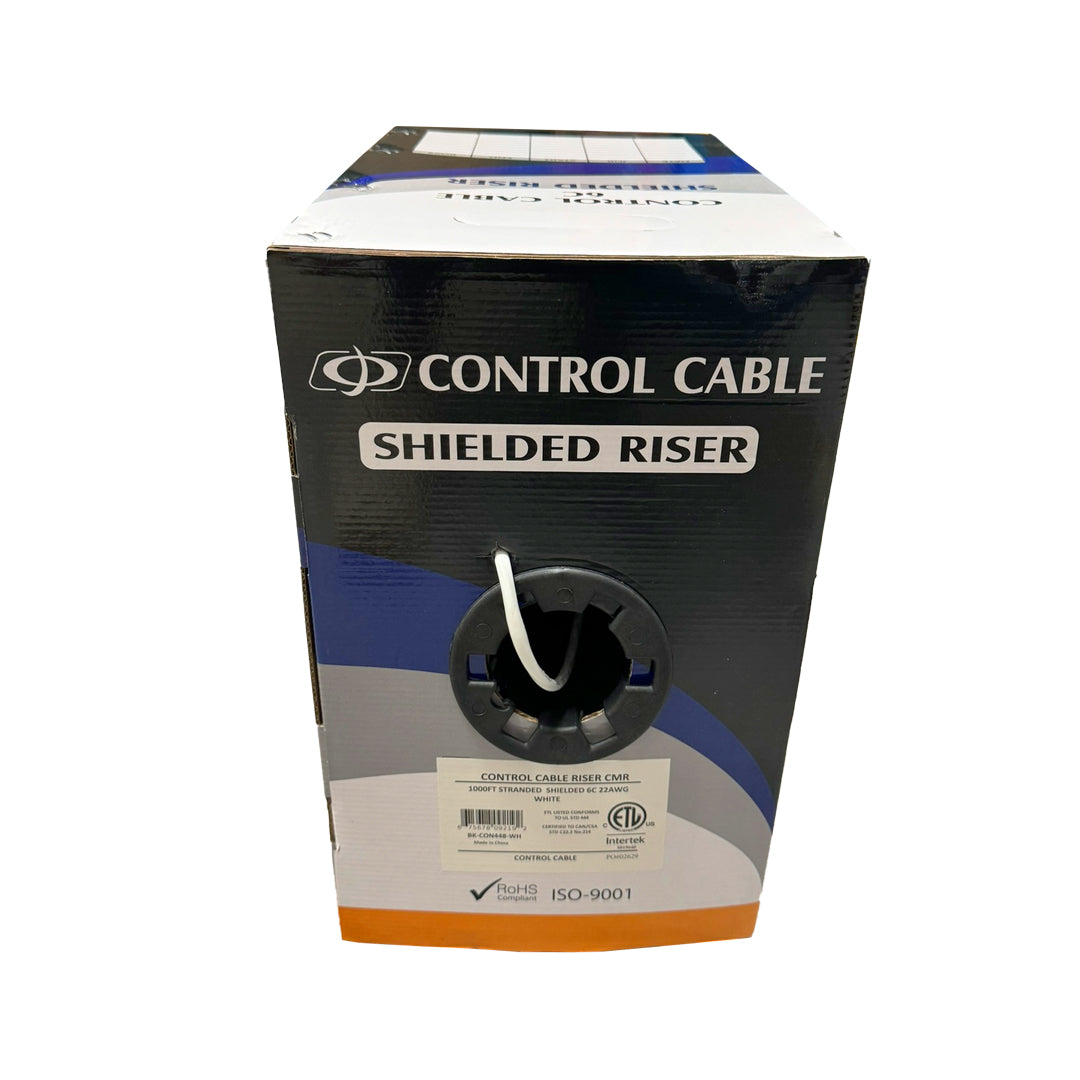

Cable Lengths Available: 1000 foot [305m] Pull Box
Color (Jacket): White
Number of Conductors: 6 Conductors (Black/Red/Green/White/Brown/Yellow) Oxygen Free Copper (OFC)
Jacket Material: PVC
Wire Gauge: 22 AWG
| Product | 1000ft 6C 22AWG Stranded Control Cable - CMR Shielded - White |
| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (Jacket) | White |
| Number of Conductors | 6 Conductors (Black/Red/Green/White/Brown/Yellow) Oxygen Free Copper (OFC) |
| Jacket Material | PVC |
| Wire Gauge | 22 AWG |
| Material (conductors) | Oxygen Free Copper |
| Stranding | 7*0.25mm |
| Insulation Material | PVC |
| Nominal Insulation Thickness | 0.38mm |
| Nominal Insulation Diameter | 1.3mm |
| Shielding | Overall Foil Shielded 110% |
| Drain Wire | 7*0.2mm Tinned Copper Drain Wire |
| Ripcord | Nylon |
| Temperature Rating | -20℃ ~ 75℃ |
| Operating Voltage | 300V |
