1000ft 2C 18AWG Stranded Shielded Control Cable - CMP Plenum
Click the image to zoom

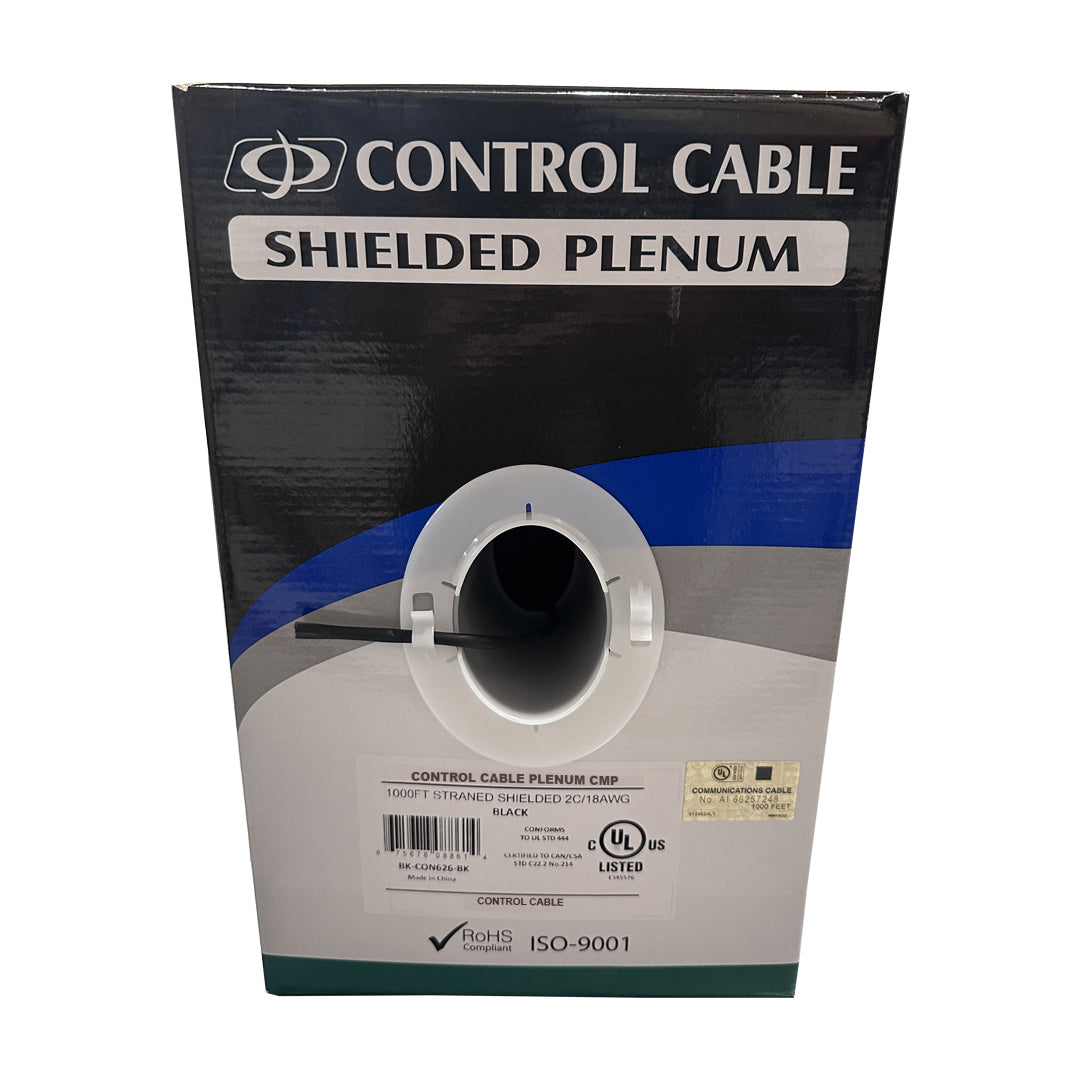

1000ft 2C 18AWG Stranded Shielded Control Cable - CMP Plenum - Black
$330.00
In stock
— ships in 1 business day
Description
This 2 conductor 18AWG stranded shielded control cable is black in color and 1000 feet in length. It is typically used in control panel and automation control applications.
Specifications
1000ft 2C 18AWG Stranded Shielded Control Cable - CMP Plenum - Black
This 2 conductor 18AWG stranded shielded control cable is black in color and 1000 feet in length. It is typically used in control panel and automation control applications.
Cable Lengths Available: 1000 foot [305m] Pull Box
Color (jacket): Black
Number of Conductors: 2 Conductors (Red/Black)
Jacket Material: PVC - Polyvinyl Chloride
Min Average Jacket Thickness: 0.36mm
| Product | 1000ft 2C 18AWG Stranded Shielded Control Cable - CMP Plenum - Black |
| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (jacket) | Black |
| Number of Conductors | 2 Conductors (Red/Black) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Min Average Jacket Thickness | 0.36mm |
| Jacket Outer Diameter | 4.6 ± 0.15mm |
| Insulation Material | PVC - Polyvinyl Chloride |
| Min Average Insulation Thickness | 0.18mm |
| Insulation Outer Diameter | 1.7 ± 0.10mm |
| Min. Ave. Jacket Thickness | 0.46 mm |
| Wire Gauge | 18 AWG |
| Maximum Voltage | 300V |
| Material (conductors) | Bare Copper |
| Ripcord | DuPont Kevlar® |
| Shielding | 100% AL-Mylar & PET Coverage with 25% Overlapping |
