1000ft 6C 22AWG Stranded Shielded Control Cable - CMP Plenum
Click the image to zoom

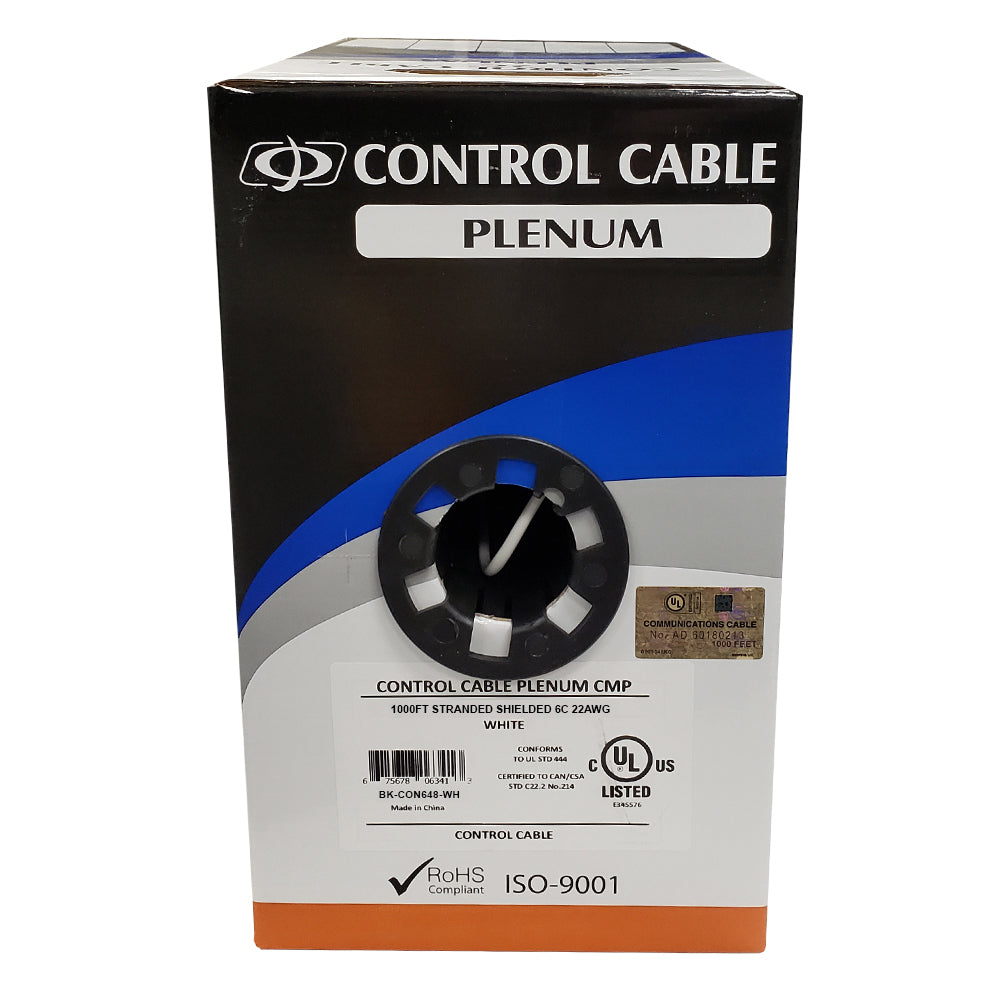

1000ft 6C 22AWG Stranded Shielded Control Cable - CMP Plenum - White
$466.25
In stock
— ships in 1 business day
Description
This 6 conductor 22AWG stranded shielded control cable is white in color and 1000 feet in length. It is typically used in security control sensors, push buttons and automation control applications.
Specifications
1000ft 6C 22AWG Stranded Shielded Control Cable - CMP Plenum - White
This 6 conductor 22AWG stranded shielded control cable is white in color and 1000 feet in length. It is typically used in security control sensors, push buttons and automation control applications.
Cable Lengths Available: 1000 foot [305m] Pull Box
Color (jacket): White
Number of Conductors: 6 Conductors (Red/Black/White/Green/Grey/Blue)
Jacket Material: PVC - Polyvinyl Chloride
Nominal Jacket Thickness: 0.46mm
| Product | 1000ft 6C 22AWG Stranded Shielded Control Cable - CMP Plenum - White |
| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (jacket) | White |
| Number of Conductors | 6 Conductors (Red/Black/White/Green/Grey/Blue) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nominal Jacket Thickness | 0.46mm |
| Jacket Outer Diameter | 4.6 +/- 0.15mm |
| Insulation Material | PVC - Polyvinyl Chloride |
| Min Average Insulation Thickness | 0.36mm |
| Insulation Outer Diameter | 1.15 +/- 0.10mm |
| Wire Gauge | 22 AWG |
| Material (conductors) | Stranded Bare Copper |
| Ripcord | DuPont Kevlar® |
| Shielding | 100% AL-Mylar & PET Coverage with 25% Overlapping |
| Conductor Resistance | 16.89 Ohms/1000 FT. |
| 55.4 Ohms/Km (Nominal) |
