1000ft 4C 18AWG Stranded Control Cable - CMP Unshielded - Wh
Click the image to zoom

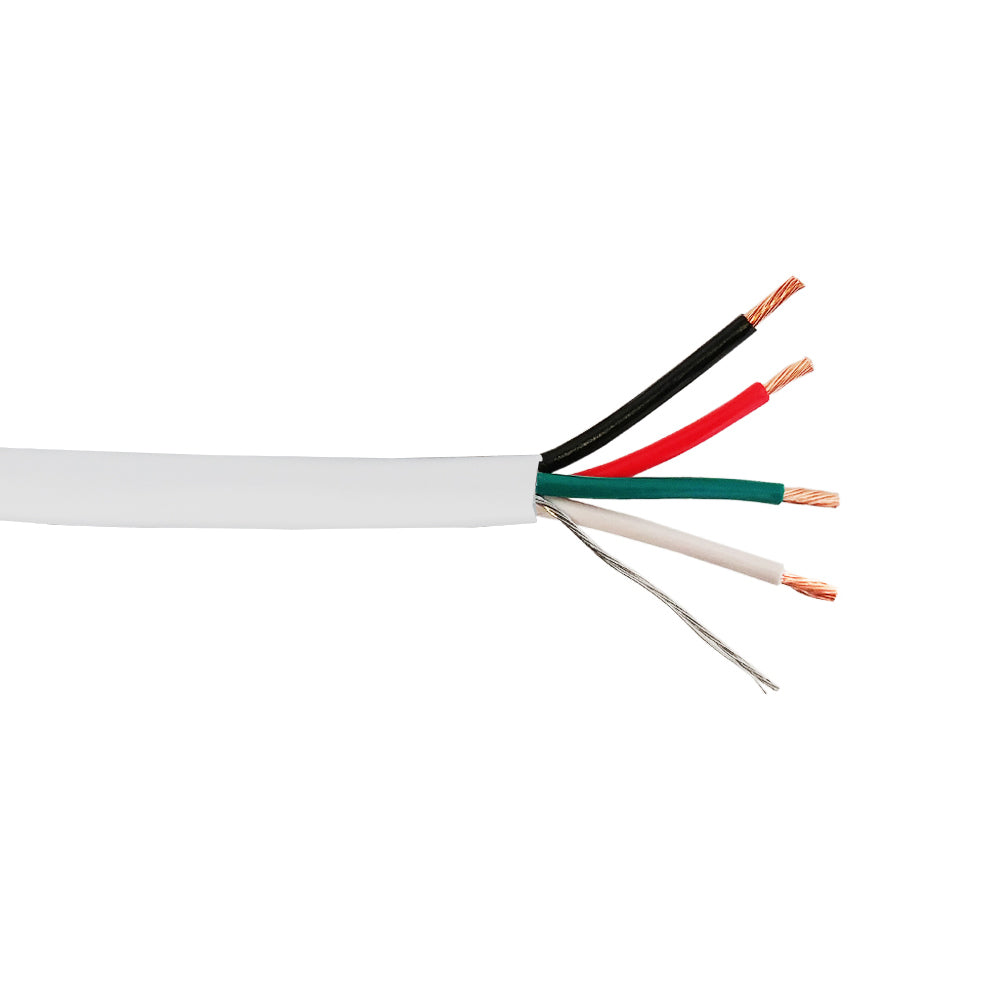

1000ft 4C 18AWG Stranded Control Cable - CMP Unshielded - White
$405.00
In stock
— ships in 1 business day
Description
This 4 conductor 18AWG stranded unshielded control cable is plenum rated, white in color and 1000 feet in length. It is typically used in control panel and automation control applications.
Specifications
1000ft 4C 18AWG Stranded Control Cable - CMP Unshielded - White
This 4 conductor 18AWG stranded unshielded control cable is plenum rated, white in color and 1000 feet in length. It is typically used in control panel and automation control applications.
Cable Lengths Available: 1000 foot [305m] Pull Box
Color (Jacket): White
Number of Conductors: 4 Conductors (Black/Red/Green/White) Oxygen Free Copper (OFC)
Jacket Material: PL-PVC
Outer Diameter: 4.9±0.15mm
| Product | 1000ft 4C 18AWG Stranded Control Cable - CMP Unshielded - White |
| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (Jacket) | White |
| Number of Conductors | 4 Conductors (Black/Red/Green/White) Oxygen Free Copper (OFC) |
| Jacket Material | PL-PVC |
| Outer Diameter | 4.9±0.15mm |
| Dielectric | PL-PVC |
| Diameter Over Dielectric | 1.7±0.10mm |
| Nominal Jacket Thickness | 0.46mm |
| Minimum Spot | 0.36mm |
| Wire Gauge | 18 AWG |
| Material (conductors) | Bare Copper |
| Construction | 16/0.254mm |
| Ripcord | DuPont Kevlar® |
| Temperature Rating | -20℃ ~ 75℃ |
| DCR | Conductor: 6.649 Ohms/1000 FT. 21.8 Ohms/Km (Nom) |
