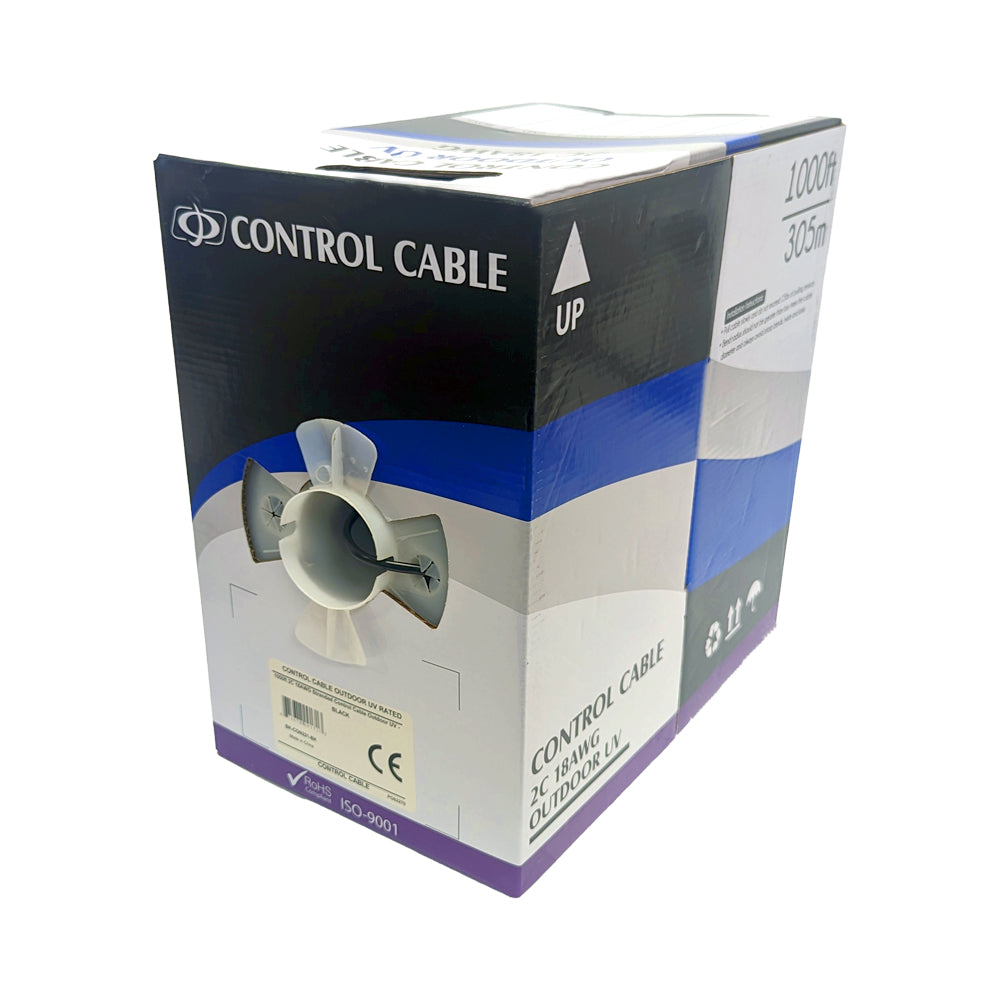

1000ft 2C 18AWG Stranded Control Cable - Outdoor UV - Black
Click the image to zoom
1000ft 2C 18AWG Stranded Control Cable - Outdoor UV - Black
$173.75
In stock
— ships in 1 business day
Description
This 2 conductor 18AWG stranded outdoor UV rated control cable is black in color and 1000 feet in length. It is typically used in control panel and automation control applications.
Specifications
1000ft 2C 18AWG Stranded Control Cable - Outdoor UV - Black
This 2 conductor 18AWG stranded outdoor UV rated control cable is black in color and 1000 feet in length. It is typically used in control panel and automation control applications.
Cable Lengths Available: 1000 foot [305m] Pull Box
Color (jacket): Black
Number of Conductors: 2 Conductors (Red/Black)
Jacket Material: LLDPE
Average Jacket Thickness: 0.50mm
| Product | 1000ft 2C 18AWG Stranded Control Cable - Outdoor UV - Black |
| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (jacket) | Black |
| Number of Conductors | 2 Conductors (Red/Black) |
| Jacket Material | LLDPE |
| Average Jacket Thickness | 0.50mm |
| Minimum Jacket Thickness | 0.45mm |
| Jacket Outer Diameter | 4.40±0.10mm |
| Insulation Material | PVC - Polyvinyl Chloride |
| Average Insulation Thickness | 0.270mm |
| Minimum Insulation Thickness | 0.24mm |
| Insulation Outer Diameter | 16/0.254±0.005mm |
| Wire Gauge | 18 AWG |
| Maximum Voltage | 300V |
| Material (conductors) | Bare Copper |
| Ripcord | Nylon |
