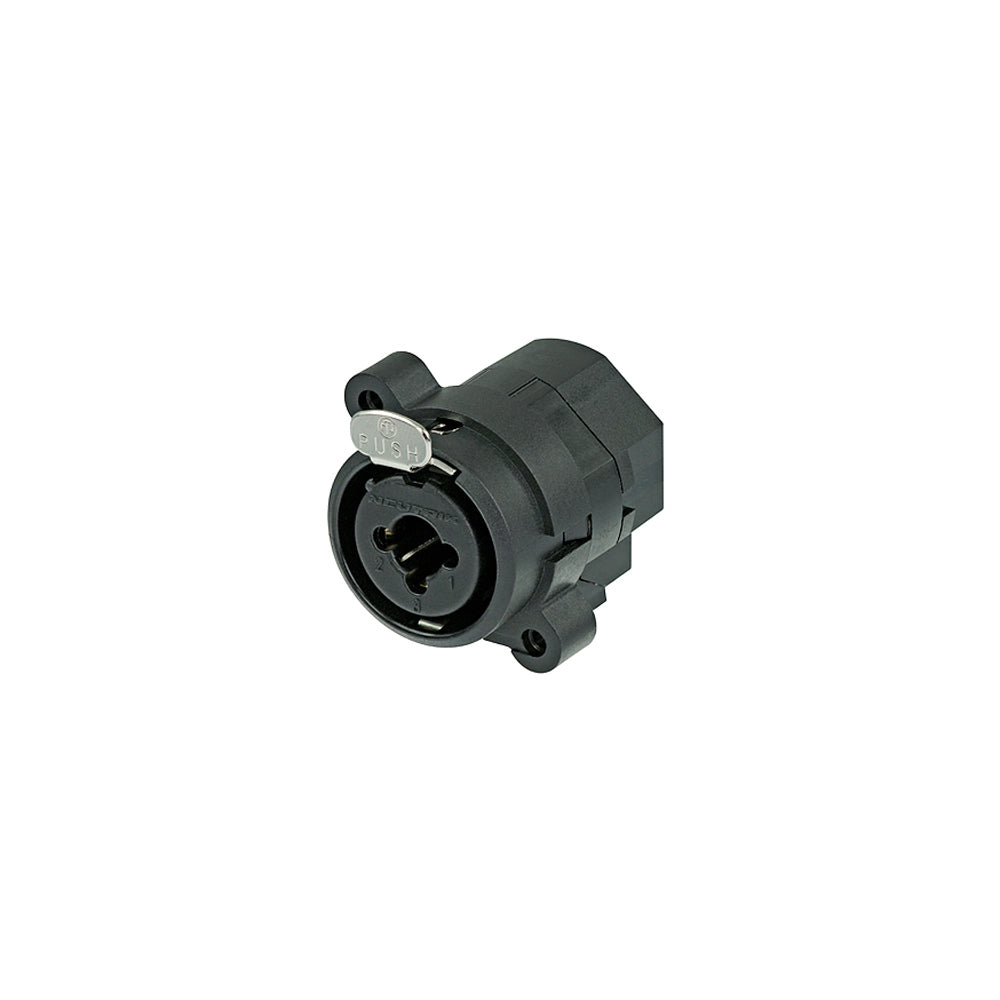

Neutrik 3-Pin XLR Female + 1/4 inch TRS Combo Panel Mount Connector
$7.56
In stock
— ships in 1 business day
Description
This connector is a XLR + jack hybrid chassis connector combining a 3-pole XLR receptacle and 1/4" jack. It is typically used for digital audio applications.
Specifications
Neutrik 3-Pin XLR Female + 1/4 inch TRS Combo Panel Mount Connector
This connector is a XLR + jack hybrid chassis connector combining a 3-pole XLR receptacle and 1/4" jack. It is typically used for digital audio applications.
Color: Black
Housing: Nickel
Connector Type: Combo
Temperature Range: -30℃ to +80℃
Contacts: Bronze
| Product | Neutrik 3-Pin XLR Female + 1/4 inch TRS Combo Panel Mount Connector |
| Color | Black |
| Housing | Nickel |
| Connector Type | Combo |
| Temperature Range | -30℃ to +80℃ |
| Contacts | Bronze |
| Contact Plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Insert | Polyamide |
| Locking Element | Steel Ck67 |
| Gender | Female |
| Contact Resistance | < 10 mΩ (XLR)< 20 mΩ (Jack) |
| Dielectric Strength | 1,5 kVdc |
| Insulation Resistance | > 10 GΩ (initial) |
| Rated Current Per Contact | 7,5 A (XLR)7,5 A (Jack) |
| Rated Voltage | < 50 V |
| Insertion Force | ? 25 N |
