1ft NEMA L6-30P to NEMA L6-20R Power Cable - 12AWG - SJT Jac
Click the image to zoom
1ft NEMA L6-30P to NEMA L6-20R Power Cable - 12AWG - SJT Jacket (250V 20A)
$12.88
In stock
— ships in 1 business day
Description

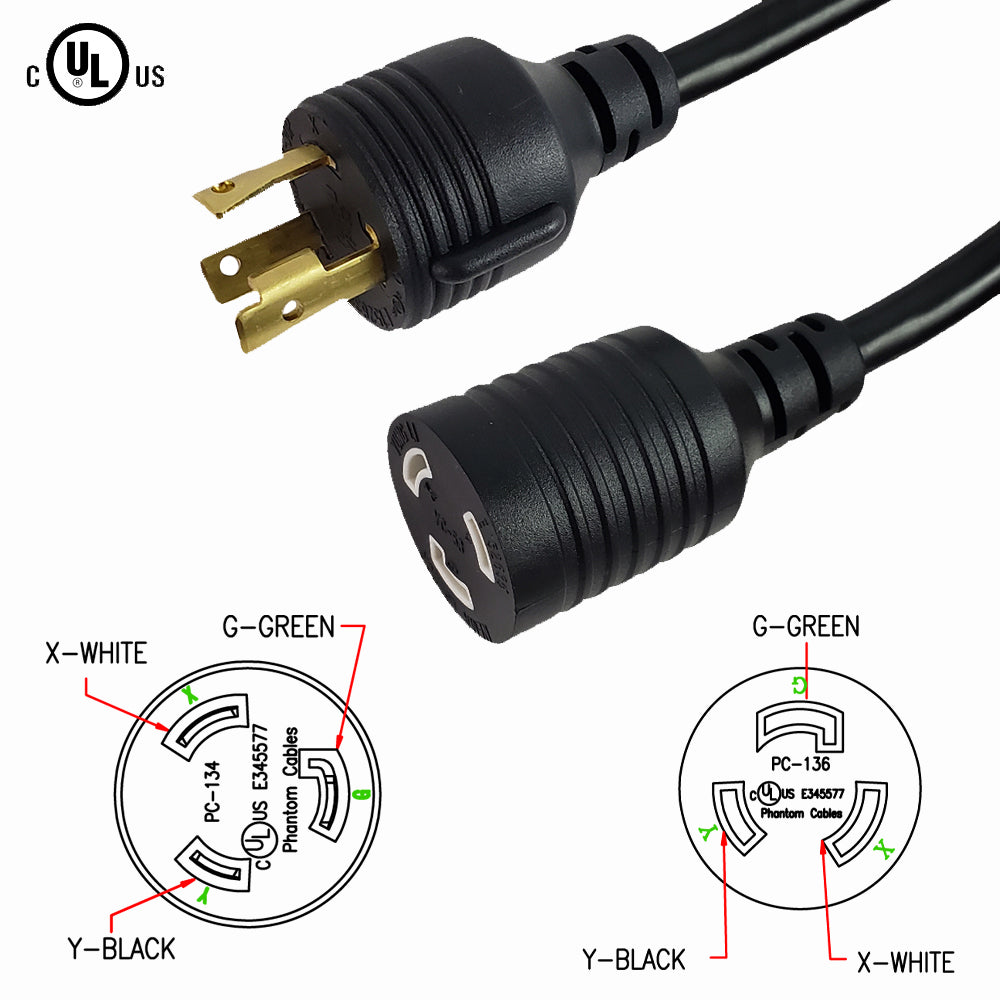

This power cord consists of a L6-30P male on one end and a L6-20R female on the other end. It is typically used as an adapter cable. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. Premium quality connectors are used to ensure a secure fit. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Specifications
1ft NEMA L6-30P to NEMA L6-20R Power Cable - 12AWG - SJT Jacket (250V 20A)
This power cord consists of a L6-30P male on one end and a L6-20R female on the other end. It is typically used as an adapter cable. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
Cable Length: 1 foot [0.3m]
Color: Black
Number of Conductors: 3 Conductor
Wire Gauge: 12 AWG
Jacket: Heavy duty SJT
| Product | 1ft NEMA L6-30P to NEMA L6-20R Power Cable - 12AWG - SJT Jacket (250V 20A) |
| Cable Length | 1 foot [0.3m] |
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 12 AWG |
| Jacket | Heavy duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Conductor Material | 100% bare copper |
| Temperature Rating | -20℃ to 105℃ |
| Connector A | NEMA L6-30P |
| Connector B | NEMA L6-20R |
| Power Rating | 20 Amp / 250 Volt |
| L6-30P | c(UL)us |
| L6-20R | c(UL)us |
