24U Server Cabinet with Fan Tray, Black (47.2 inch H x 23.6
Click the image to zoom
24U Server Cabinet with Fan Tray, Black (47.2 inch H x 23.6 inch W x 43.4 inch D)
$1,165.50
In stock
— ships in 1 business day
Description

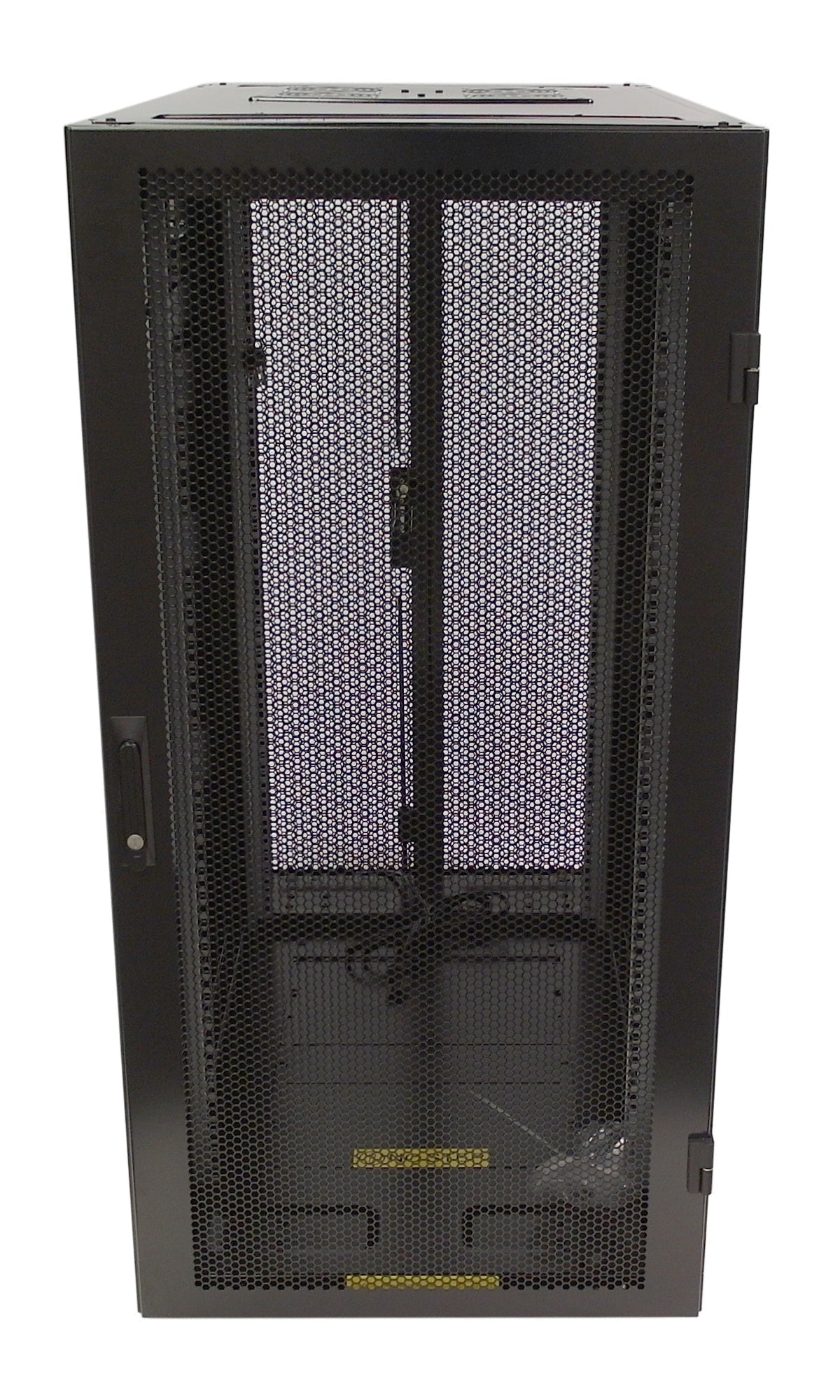

This server cabinet comes fully equipped, ready for equipment to be installed. It comes with perforated front and rear doors, 4-fan top and removable bottom panels for optimal cooling.
Please note this item is considered oversized and cannot be shipped via courier. You will not be able to check-out with this item in your cart unless you select the local pick-up option or the freight collect option and provide us with your trucking company details. Contact us for a shipping quote.
Specifications
24U Server Cabinet with Fan Tray, Black (47.2 inch H x 23.6 inch W x 43.4 inch D)
This server cabinet comes fully equipped, ready for equipment to be installed. It comes with perforated front and rear doors, 4-fan top and removable bottom panels for optimal cooling. Please note this item is considered oversized and cannot be shipped via courier.
Color: Black - Powder Coated
Material: SPCC Cold Rolled Steel
Rail Thickness: 2.05mm
Doors: Perforated, Removable, Two-Point Locking Front Door
Casters: Built in Casters
| Product | 24U Server Cabinet with Fan Tray, Black (47.2 inch H x 23.6 inch W x 43.4 inch D) |
| Color | Black - Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Rail Thickness | 2.05mm |
| Doors | Perforated, Removable, Two-Point Locking Front Door |
| Casters | Built in Casters |
| Leveling Feet | Adjustable Leveling feet can be Lowered Once Cabinet is in Place |
| Loading Capacity | Maximum 2866 lbs [1300 kg] |
| Cable Entries | Top: Brush Style Entry at Front and Back of Cabinet Top |

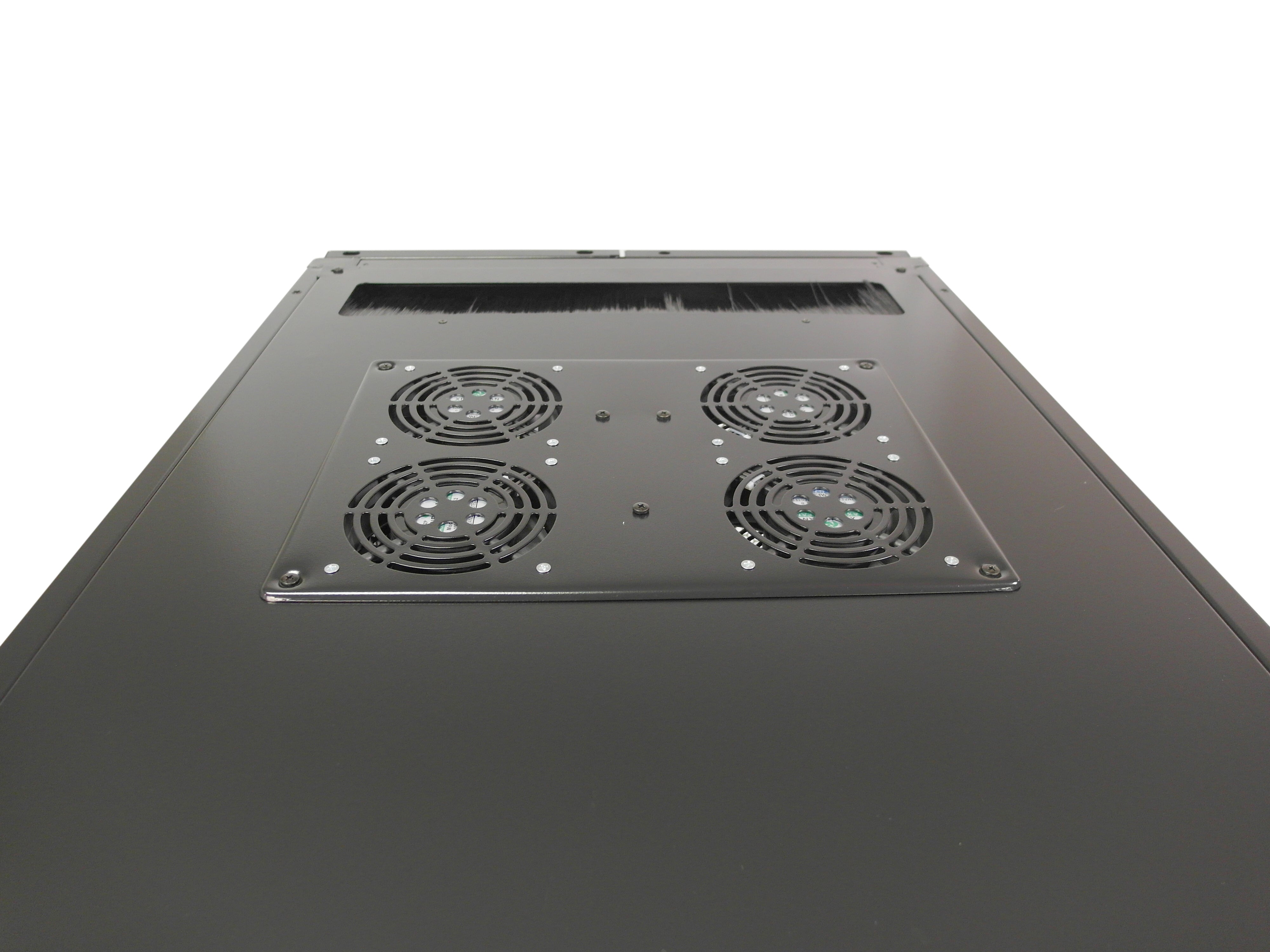

| Fan | 4-Fan Unit Installed on Top of Cabinet, 110V/120V |

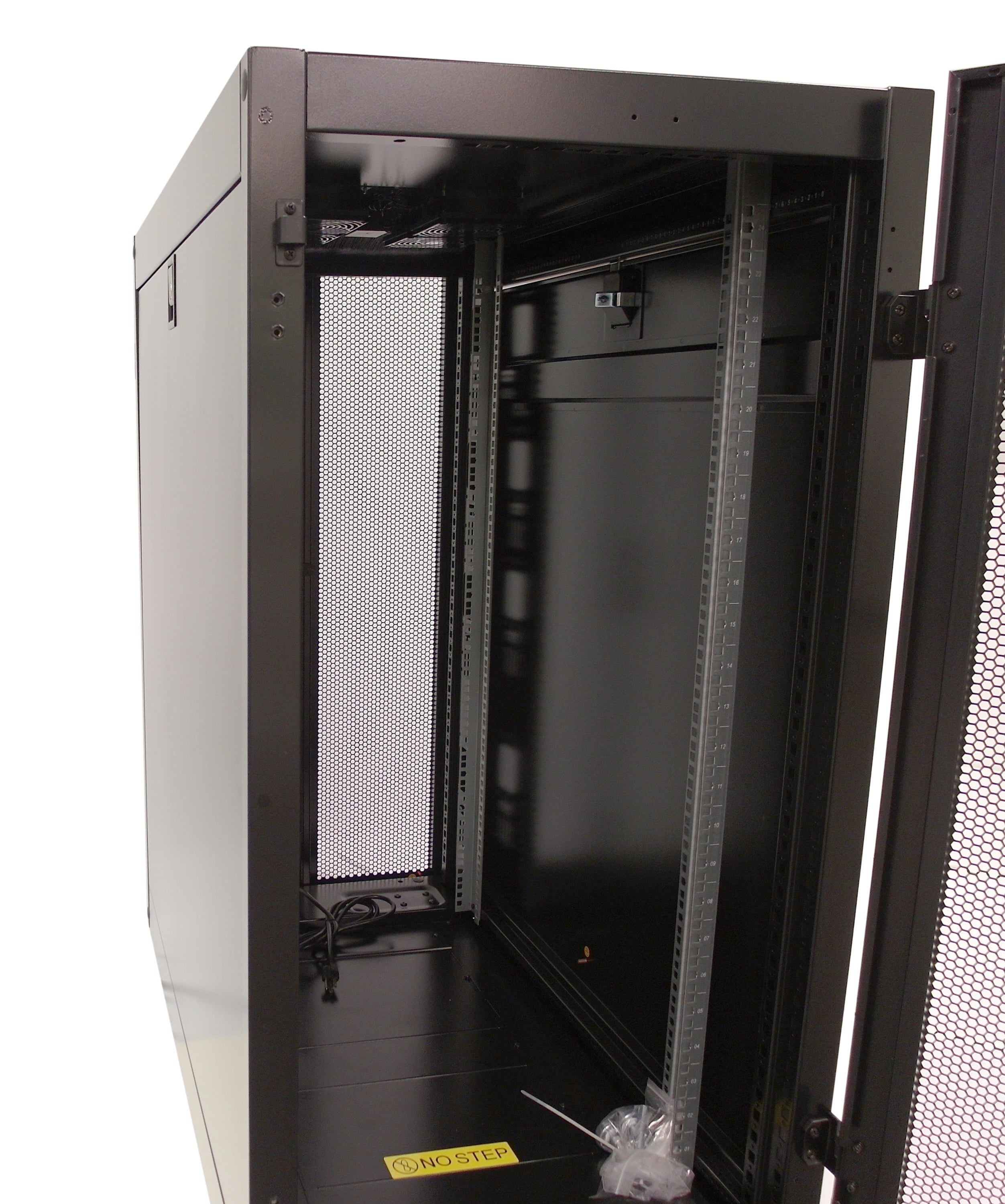

| Mounting Rails | Equipped with 2 Pairs of Square Hole Mounting Rails that can Easily be Adjusted |
| Cable Management | Dedicated Vertical Cable Management, Either Front or Back |
| Grounding | Groundings Lugs Located at the Base and Sides of the Cabinet |
| Product Dimensions | 47.2 H, 23.6 W, 43.4 D inches [120 H, 60 W, 110 D cm] |
| Usable Mounting Dimensions | 24U Height x 19" Wide x 36" Deep (32" depth with Cable management installed, 36" Without) |
| Product Weight | 209 lbs [95 kg] |
