27U A/V and Networking Cabinet - Pre-Loaded with Fan Top, 5 Shelves & Blank Panels - Tapped Rails - Black
Description
Specifications
27U A/V and Networking Cabinet - Pre-Loaded with Fan Top, 5 Shelves & Blank Panels - Tapped Rails - Black

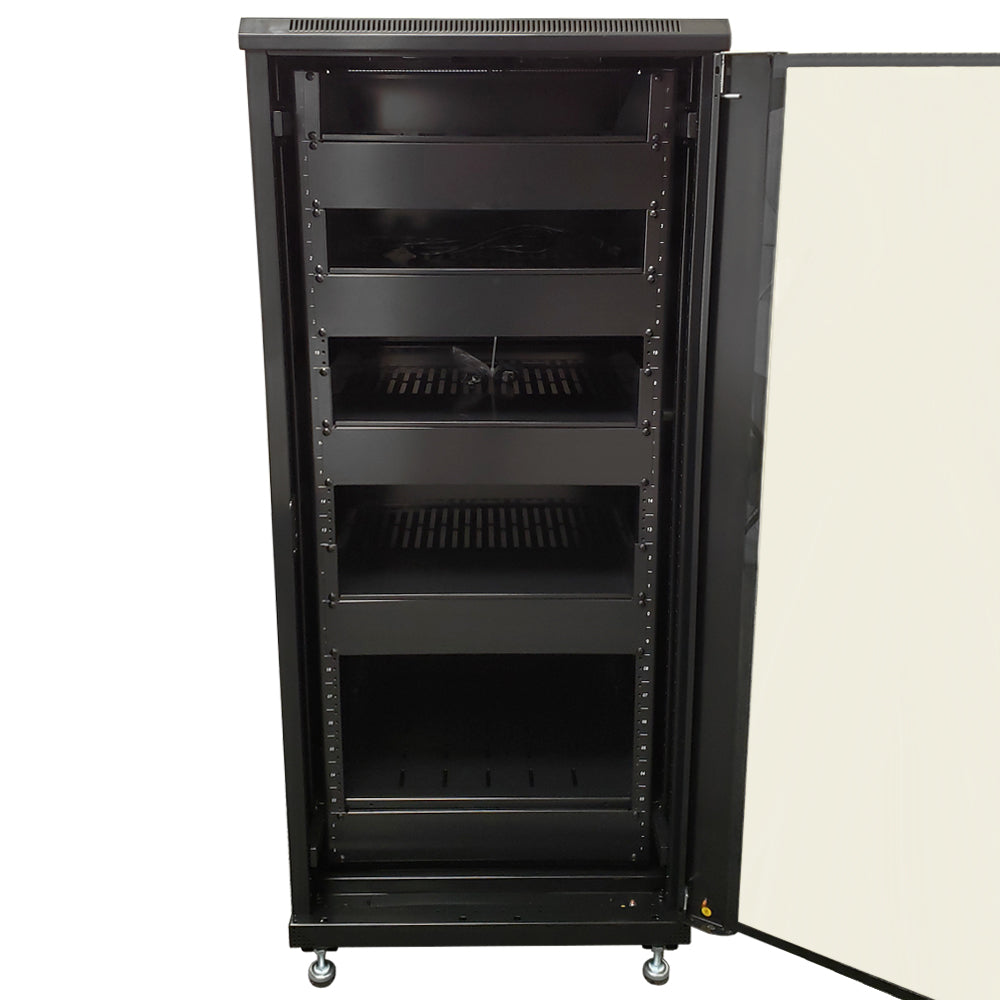

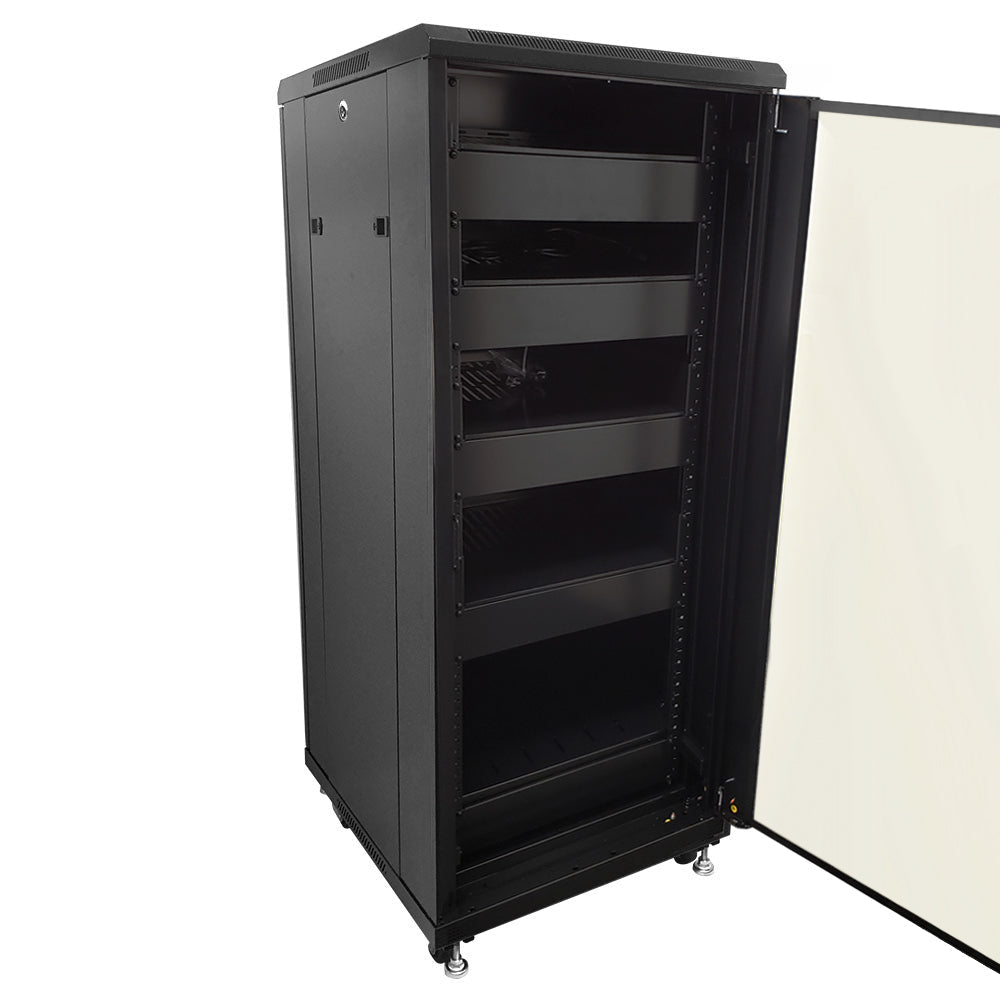

This 27U A/V and networking cabinet comes with a lockable glass front door, a lockable solid rear door and removable/lockable side panels. It comes assembled and pre-loaded with a four fan top, five vented shelves, solid blank filler panels and tapped rails. Cable entries are available on the top and bottom of the cabinet.
Color: Black - Powder Coated
Material: SPCC Cold Rolled Steel
Material Thickness: Tapped Rails:2.3mm, Side Panels 1.0mm, Others:1.2 mm
Front Door: Glass front door can be hinged from either directionOpening angle of front door is over 180 degrees
Rear Door: Solid rear door can be hinged from either directionOpening angle of front door is over 180 degrees
| Product | 27U A/V and Networking Cabinet - Pre-Loaded with Fan Top, 5 Shelves & Blank Panels - Tapped Rails - Black |
| Color | Black - Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Material Thickness | Tapped Rails:2.3mm, Side Panels 1.0mm, Others:1.2 mm |
| Front Door | Glass front door can be hinged from either directionOpening angle of front door is over 180 degrees |
| Rear Door | Solid rear door can be hinged from either directionOpening angle of front door is over 180 degrees |
| Side Panels | Solid side panels, removable/lockable |
| Shelves | 4 units Front Mount Shelves1 unit 4-Post Bottom Shelf |
| Cooling Fans | 4-Fan Unit Installed on Top of Cabinet, 110V/120V |
| Mounting Rails | 2 Pairs of 10-32 Tapped Rails (Front and Back) |
| Adjustable Mounting Profile Installation | Compliant |
| Assembly Required | No |
| Loading Capacity | Maximum 1322 lbs [600 kg] |
| Cable Entries | Cable entry on both of top cover and bottom panel |

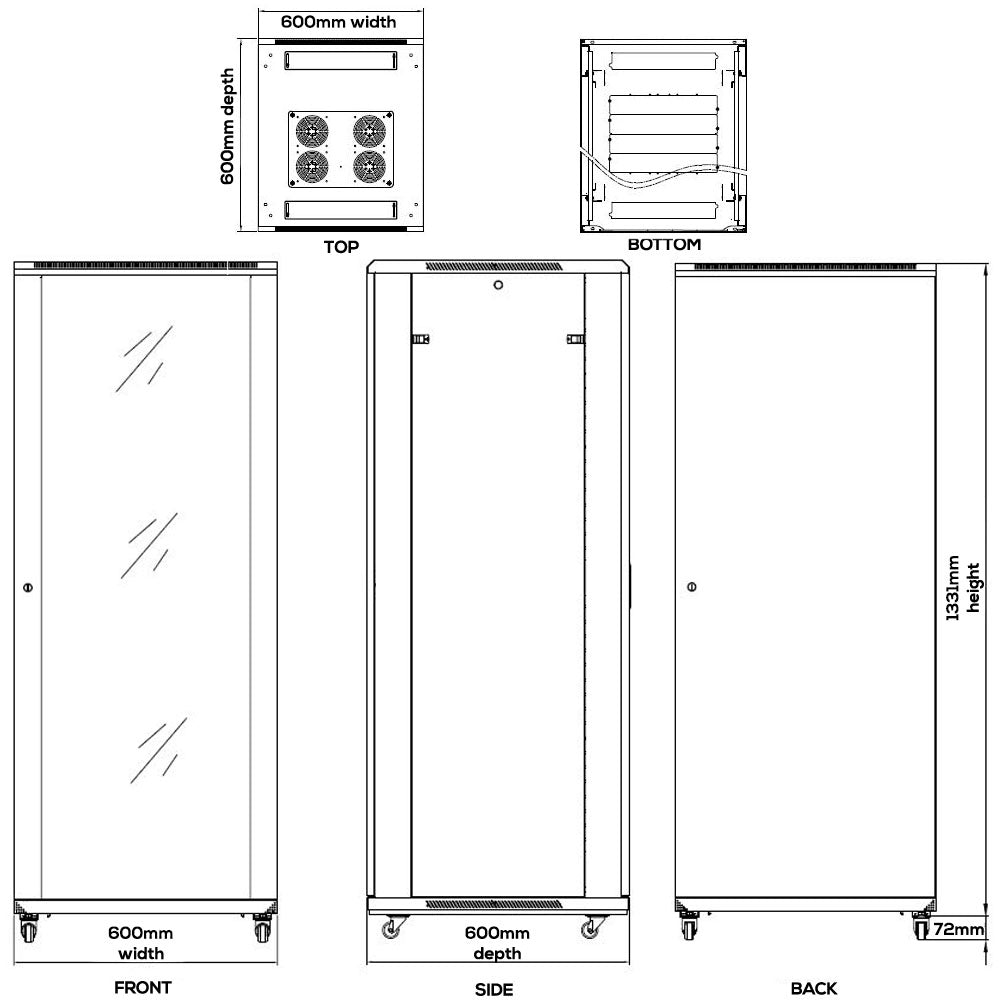

| Width | 23 inches |
| Capacity | 27U |
