42U A/V and Networking Cabinet - Pre-Loaded with Fan Top, 9 Shelves & Blank Panels - Tapped Rails - Black – Generic – AV and Server Cabinets

Click the image to zoom

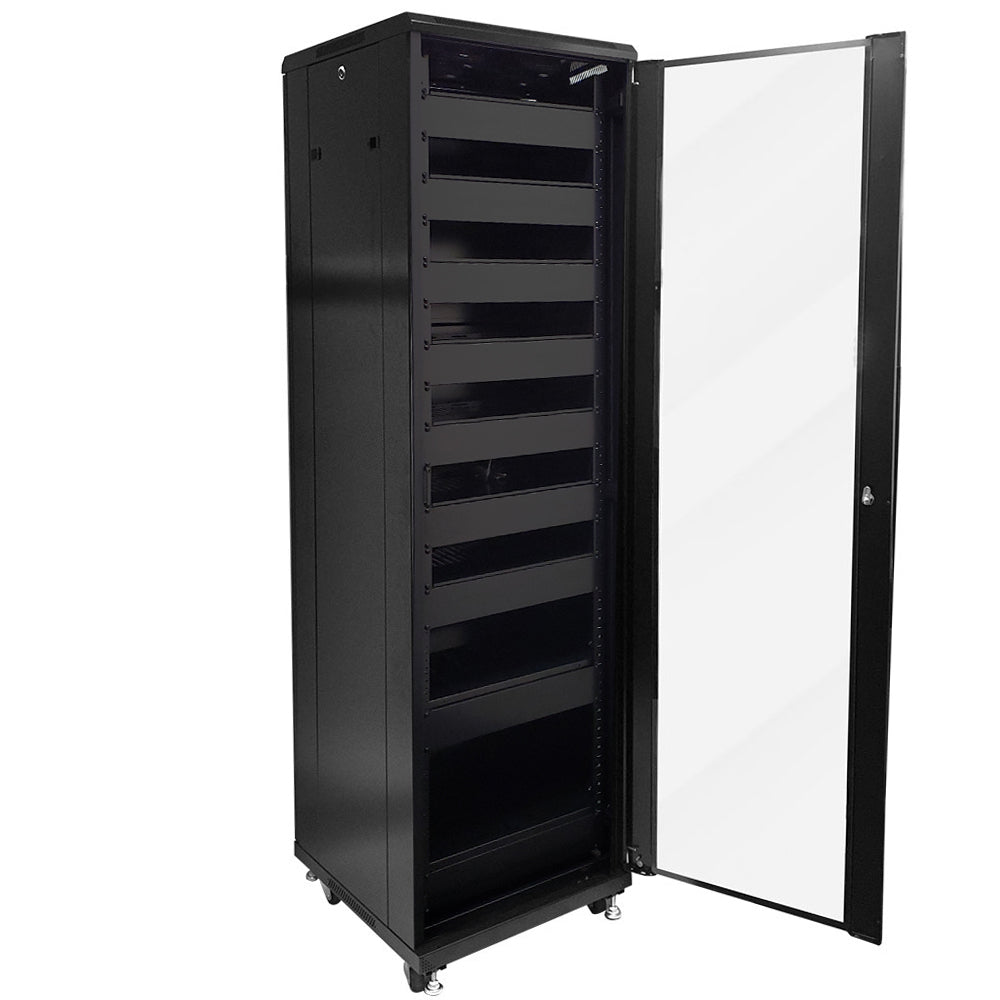

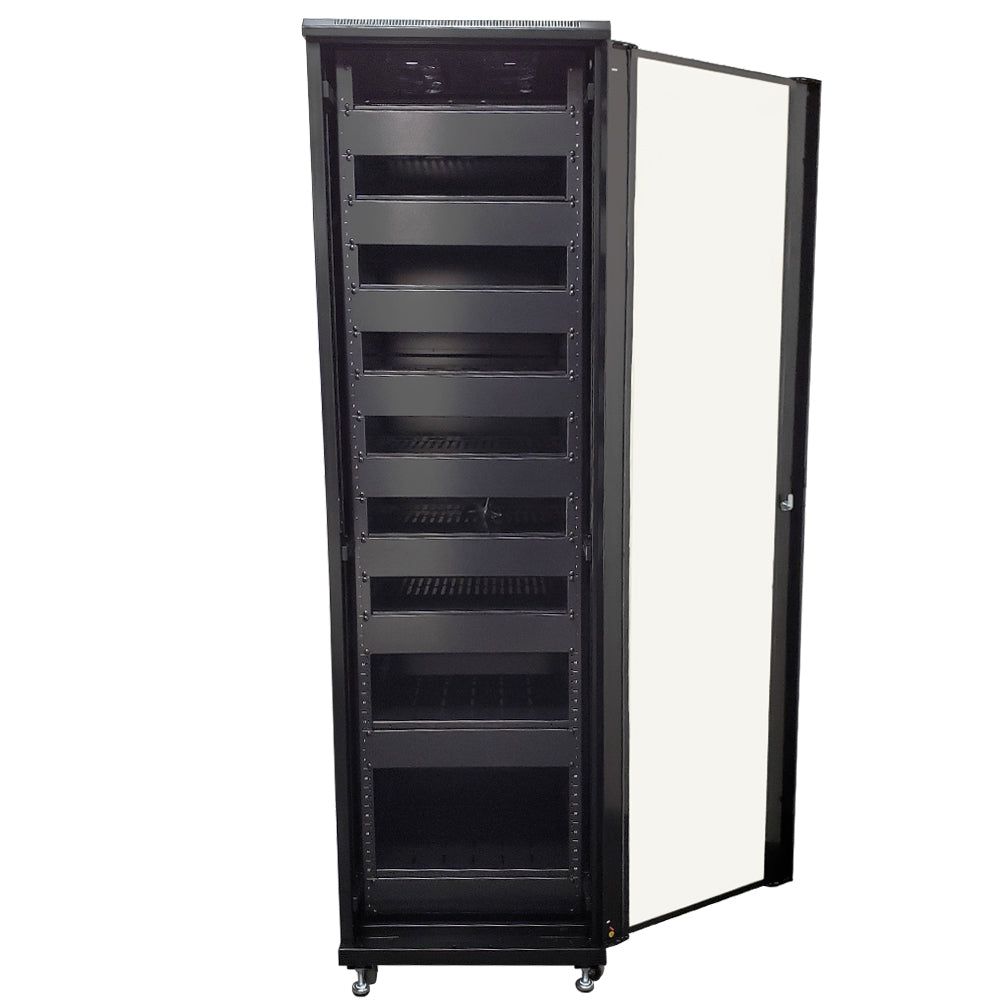

42U A/V and Networking Cabinet - Pre-Loaded with Fan Top, 9 Shelves & Blank Panels - Tapped Rails - Black

Brand: Generic  ·  Condition: New  ·  SKU: RM-1220
$1,169.44
In stock — ships in 1 business day

Description

This 42U A/V and networking cabinet comes with a lockable glass front door, a lockable solid rear door and removable/lockable side panels. It comes assembled and pre-loaded with a four fan top, nine vented shelves, solid blank filler panels and tapped rails. Cable entries are available on the top and bottom of the cabinet. There are also removable panels at the bottom of the cabinet for increased air flow. It is typically used in home installations, security applications, restaurants/bars and offices where server depth is not required. Please note this item is considered oversized and cannot be shipped via courier. You will not be able to check-out with this item in your cart unless you select the local pick-up option or the freight collect option and provide us with your trucking company details. Contact us for a shipping quote.

Specifications

42U A/V and Networking Cabinet - Pre-Loaded with Fan Top, 9 Shelves & Blank Panels - Tapped Rails - Black

This 42U A/V and networking cabinet comes with a lockable glass front door, a lockable solid rear door and removable/lockable side panels. It comes assembled and pre-loaded with a four fan top, nine vented shelves, solid blank filler panels and tapped rails. Cable entries are available on the top and bottom of the cabinet.

Color: Black - Powder Coated
Material: SPCC Cold Rolled Steel
Material Thickness: Tapped Rails:2.3mm, Side Panels 1.0mm, Others:1.2 mm
Front Door: Glass front door can be hinged from either directionOpening angle of front door is over 180 degrees
Rear Door: Solid rear door can be hinge from either sideOpening angle of front door is over 180 degrees

Product42U A/V and Networking Cabinet - Pre-Loaded with Fan Top, 9 Shelves & Blank Panels - Tapped Rails - Black
ColorBlack - Powder Coated
MaterialSPCC Cold Rolled Steel
Material ThicknessTapped Rails:2.3mm, Side Panels 1.0mm, Others:1.2 mm
Front DoorGlass front door can be hinged from either directionOpening angle of front door is over 180 degrees
Rear DoorSolid rear door can be hinge from either sideOpening angle of front door is over 180 degrees
Side PanelsSolid side panels, removable/lockable
Shelves7 units Front Mount Shelves2 units 4-Post Bottom Shelves
Cooling Fans4-Fan Unit Installed on Top of Cabinet, 110V/120V
Mounting Rails2 Pairs of 10-32 Tapped Rails (Front and Back)
Adjustable Mounting Profile InstallationCompliant
Assembly RequiredNo
Loading CapacityMaximum 1322 lbs [600 kg]
Cable EntriesCable entry on both of top cover and bottom panel
Width23 inches
Capacity42U
