8x8 HDMI Matrix 4K@60Hz - YUV 4:4:4 - 18Gbps - HDCP 2.2 - IR
Click the image to zoom

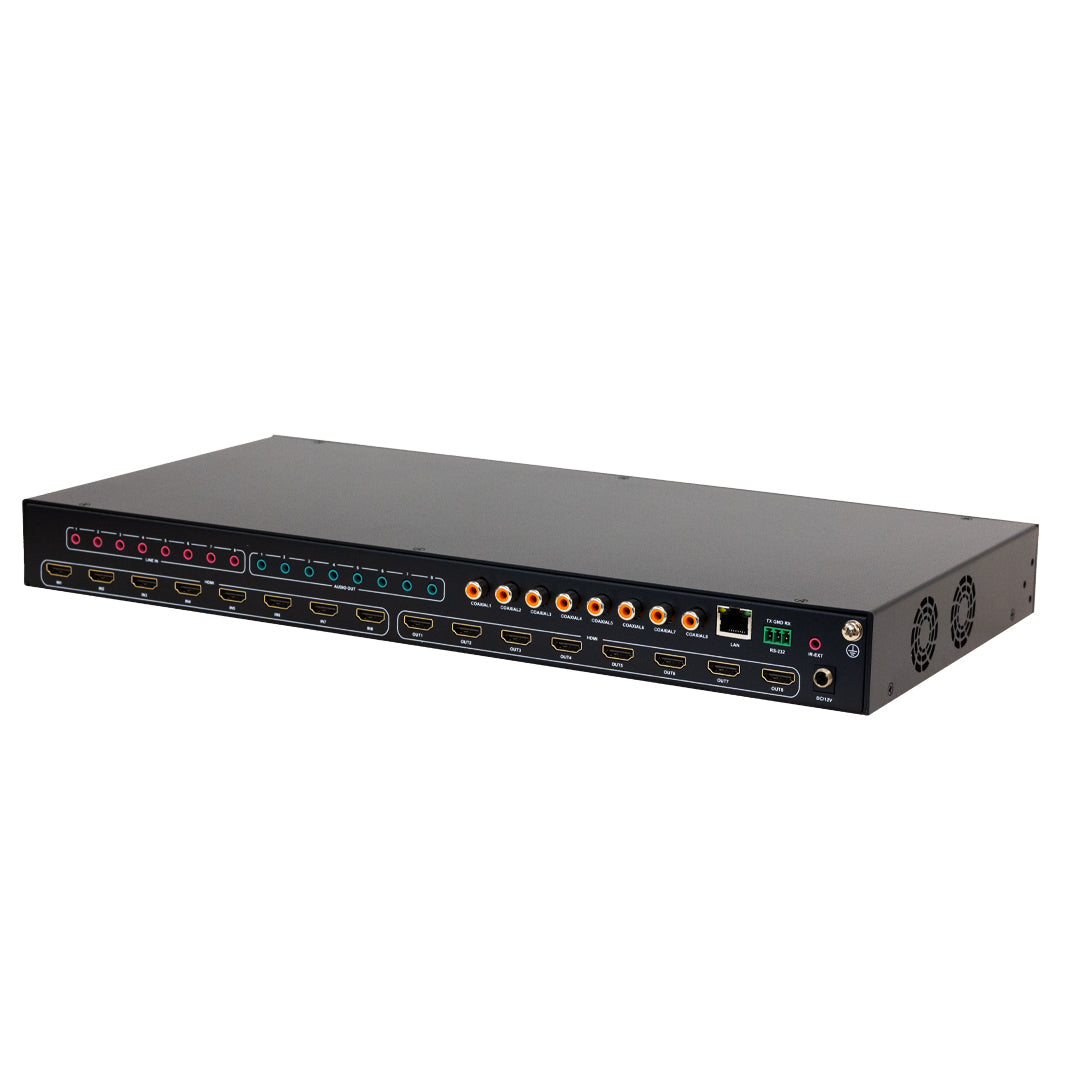

8x8 HDMI Matrix 4K@60Hz - YUV 4:4:4 - 18Gbps - HDCP 2.2 - IR control
$1,422.81
In stock
— ships in 1 business day
Description
This 8x8 HDMI matrix switch enables you to connect up to eight HDMI sources to up to eight HDMI displays. Any one of the eight inputs can be displayed on any one of the eight outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
Specifications
8x8 HDMI Matrix 4K@60Hz - YUV 4:4:4 - 18Gbps - HDCP 2.2 - IR control
This 8x8 HDMI matrix switch enables you to connect up to eight HDMI sources to up to eight HDMI displays. Any one of the eight inputs can be displayed on any one of the eight outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
Color: Black
Housing: Metal Enclosure
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -10℃ ~ 60℃
Operating Humidity: 5 to 90%RH (No Condensation)
| Product | 8x8 HDMI Matrix 4K@60Hz - YUV 4:4:4 - 18Gbps - HDCP 2.2 - IR control |
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0℃ ~ 40℃ |
| Storage Temperature | -10℃ ~ 60℃ |
| Operating Humidity | 5 to 90%RH (No Condensation) |
| Input Voltage | 125 VAC |
| Power Supply (Transmitter) | 12VDC 3A |
| Power Consumption | 28W Max. |
| Input | 8 x HDMI Female, 8 x 3.5mm Stereo Jack |
| Output | 8 x HDMI Female, 8 x SPDIF, 8 x 3.5mm Stereo Jack |
| RS-232 Serial Port | DB9 Female |
| Ethernet Port (IP Control) | RJ45 Female |
| IR Ext Port | 1 x 3.5mm Stereo Jack |
| Video | 480p@60hz,576P@50hz,720P@60hz, 1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz, 4K@60hz YUV4:2:0,4K@ 60hz YUV4:4:4 |
| Audio | LPCM2.0-5.1/16-24BIT/32-192KHZ, Dolby Atmos and DTS-X |
