HDMI Extender Over CAT6/6A Cable with Loopout & ARC - 4K 4:4:4 - 120m
$635.88
In stock
— ships in 1 business day
Description

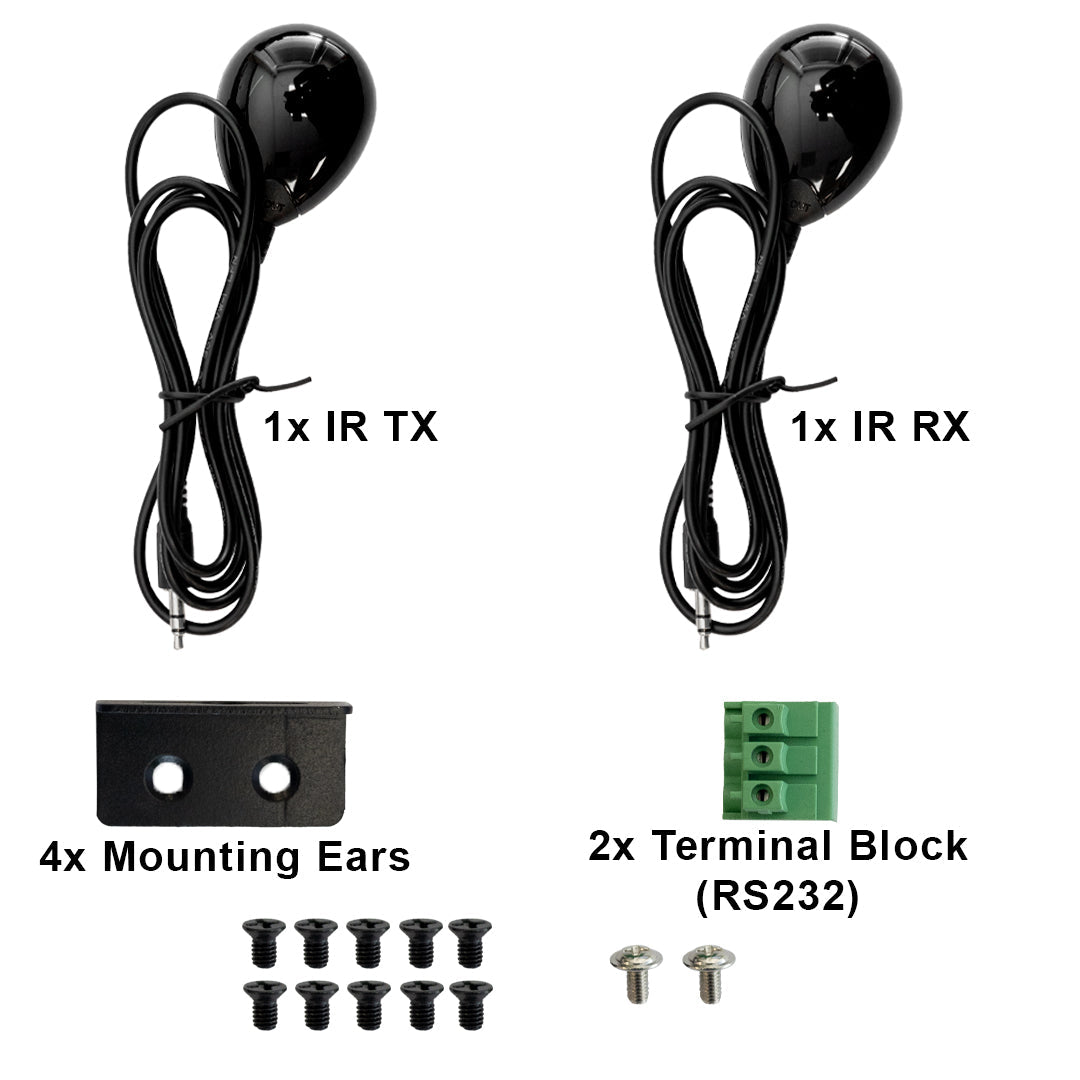

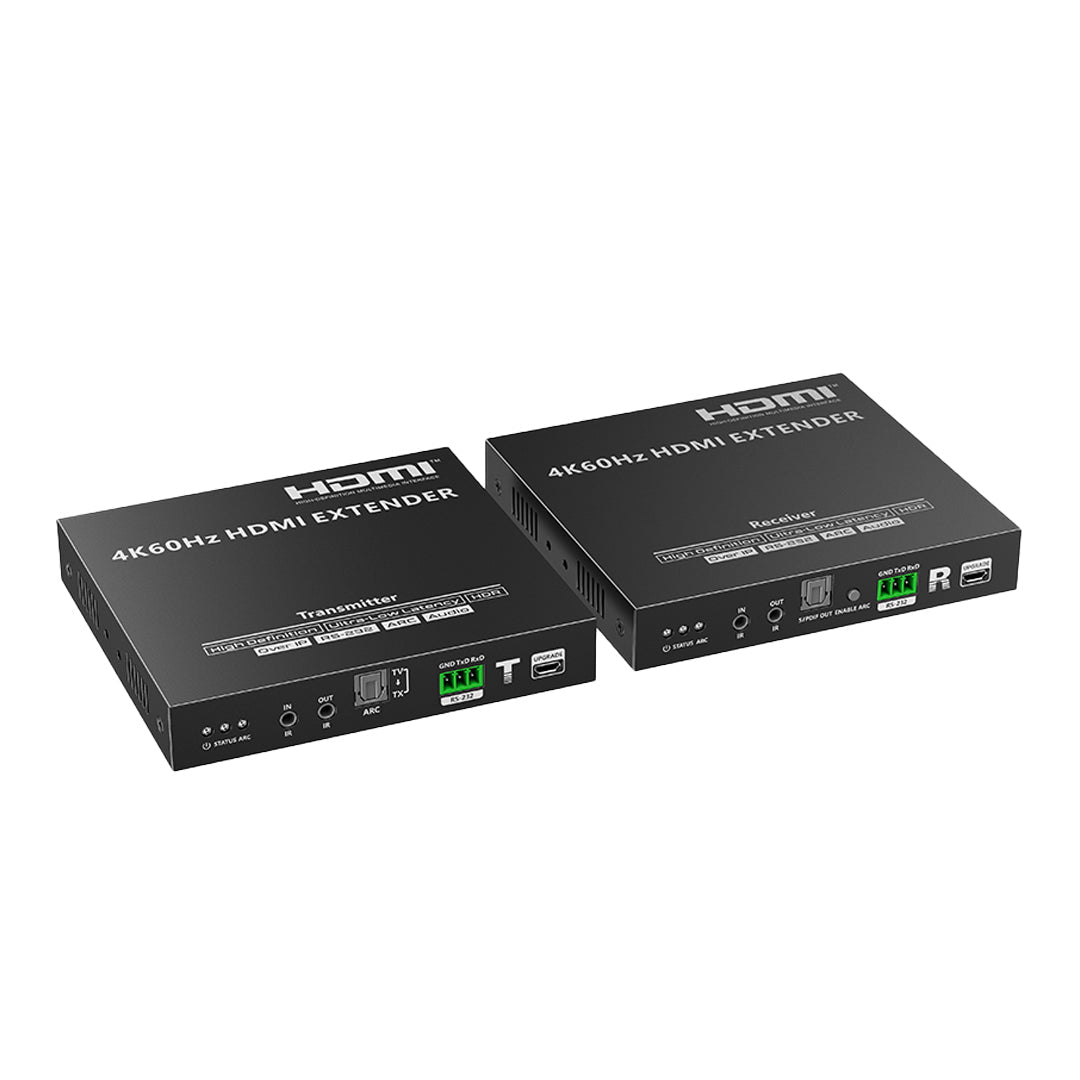

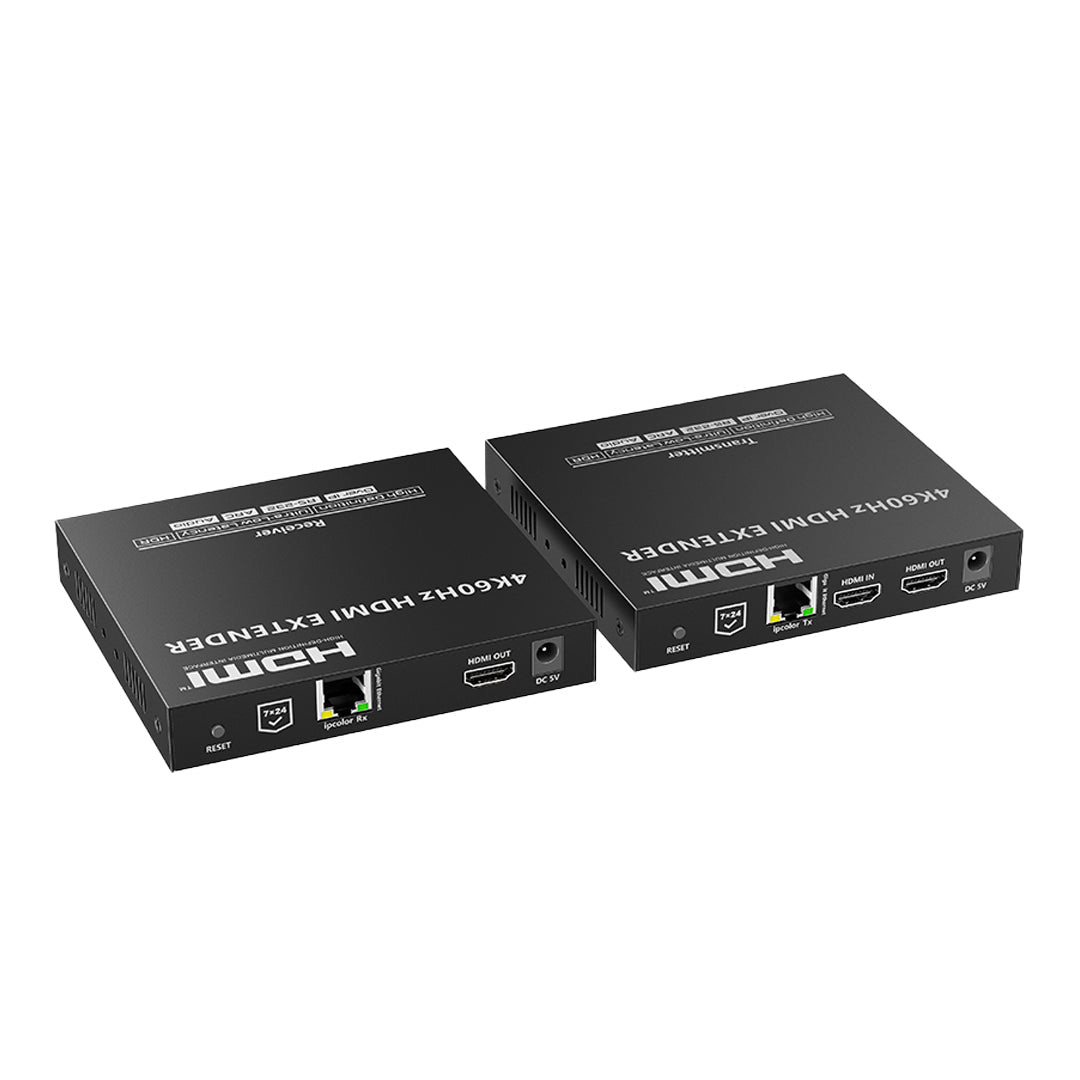

This UHD HDMI Transmit signals up to 120 meters over Cat6/6A/7 cable with ultra-low latency at 4K@60Hz 4:4:4 HDR. It supports point-to-point connection via gigabit switch, and cascading switches. This includes HDMI loop out, bi-directional IR passthrough, ARC, RS-232 passthrough, and audio extraction via S/PDIF and ideal for security monitoring, rail transit, broadcasting, smart cities, conferences, and more.
Specifications
HDMI Extender Over CAT6/6A Cable with Loopout & ARC - 4K 4:4:4 - 120m
This UHD HDMI Transmit signals up to 120 meters over Cat6/6A/7 cable with ultra-low latency at 4K@60Hz 4:4:4 HDR. It supports point-to-point connection via gigabit switch, and cascading switches.
Resolutions: 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 1080p@24/25/50/60Hz, 720p@50/60Hz, 1024x768, 1280x768, 1280x800, 1280x960, 1280x1024, 1440x900, 1400x1050, 1600x900, 1680x1050, 1920x1080, 1920x1200
Maximum Transfer Rate: 18Gbps
HDMI Length: ≤ 5m
Connection Types: One-to-one connectionOne-to-many connectionSwitch cascading
Transmission Distance: CAT5/5e ≤ 80mCAT6/6A/7 ≤ 120m
| Product | HDMI Extender Over CAT6/6A Cable with Loopout & ARC - 4K 4:4:4 - 120m |
| Resolutions | 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 1080p@24/25/50/60Hz, 720p@50/60Hz, 1024x768, 1280x768, 1280x800, 1280x960, 1280x1024, 1440x900, 1400x1050, 1600x900, 1680x1050, 1920x1080, 1920x1200 |
| Maximum Transfer Rate | 18Gbps |
| HDMI Length | ≤ 5m |
| Connection Types | One-to-one connectionOne-to-many connectionSwitch cascading |
| Transmission Distance | CAT5/5e ≤ 80mCAT6/6A/7 ≤ 120m |
| HDMI Out | LPCM2.1CH//DTS-Audio/ Dolby Atmos DD+ |
| S/PDIF Out(ARC) | LPCM 2.1CH/DTS-Audio/Dolby Digital 5.1CH |
| Audio Sampling Rate | 44.1kHz, 48kHz, 88kHz, 96kHz, 176kHz, 192kHz |
| Audio Bit Depth | 16bit, 24bit |
| ARC | Supported |
| Receiving Range | ≤ 5m |
| Infrared frequency | 20kHz~60kHz |
| Protection | - ESD protection1a> Contact discharge level 2 (±4KV)1b> Air discharge level 3 (±8KV)- Implementation of the standard: IEC61000-4-2- Lightning protection, Surge protection |
| CEC | supported |
| RS-232 (GND/RxD/TxD) | Default baud rate: 115200 Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 |
