HDMI Wall Plate Extender Over CAT5E/CAT6 UTP Cable 50M - IR
Click the image to zoom
HDMI Wall Plate Extender Over CAT5E/CAT6 UTP Cable 50M - IR - 1080p
$121.88
In stock
— ships in 1 business day
Description
This HDMI single CAT5E/CAT6 wall plate video extender allows you to extend your HD display up to 50 meters and keeps your cables hidden behind walls. Built-in IR extender function allows IR remote control of source devices from remote viewing location by sending IR commands received in the area of the display back to the source devices.
Features
Application
Specifications
HDMI Wall Plate Extender Over CAT5E/CAT6 UTP Cable 50M - IR - 1080p
This HDMI single CAT5E/CAT6 wall plate video extender allows you to extend your HD display up to 50 meters and keeps your cables hidden behind walls. Built-in IR extender function allows IR remote control of source devices from remote viewing location by sending IR commands received in the area of the display back to the source devices. Features Application
Color: White
Wall Plate Size: Single Gang
Dimensions (LxWxH): Transmitter: 115x70x34mmReceiver: 115x70x34mm
Operating Temperature Range: -5℃ ~ 35℃
Power Supply: DC 12V/1A
| Product | HDMI Wall Plate Extender Over CAT5E/CAT6 UTP Cable 50M - IR - 1080p |
| Color | White |
| Wall Plate Size | Single Gang |
| Dimensions (LxWxH) | Transmitter: 115x70x34mmReceiver: 115x70x34mm |
| Operating Temperature Range | -5℃ ~ 35℃ |
| Power Supply | DC 12V/1A |
| Power Consumption | 3 Watts (maximum) |

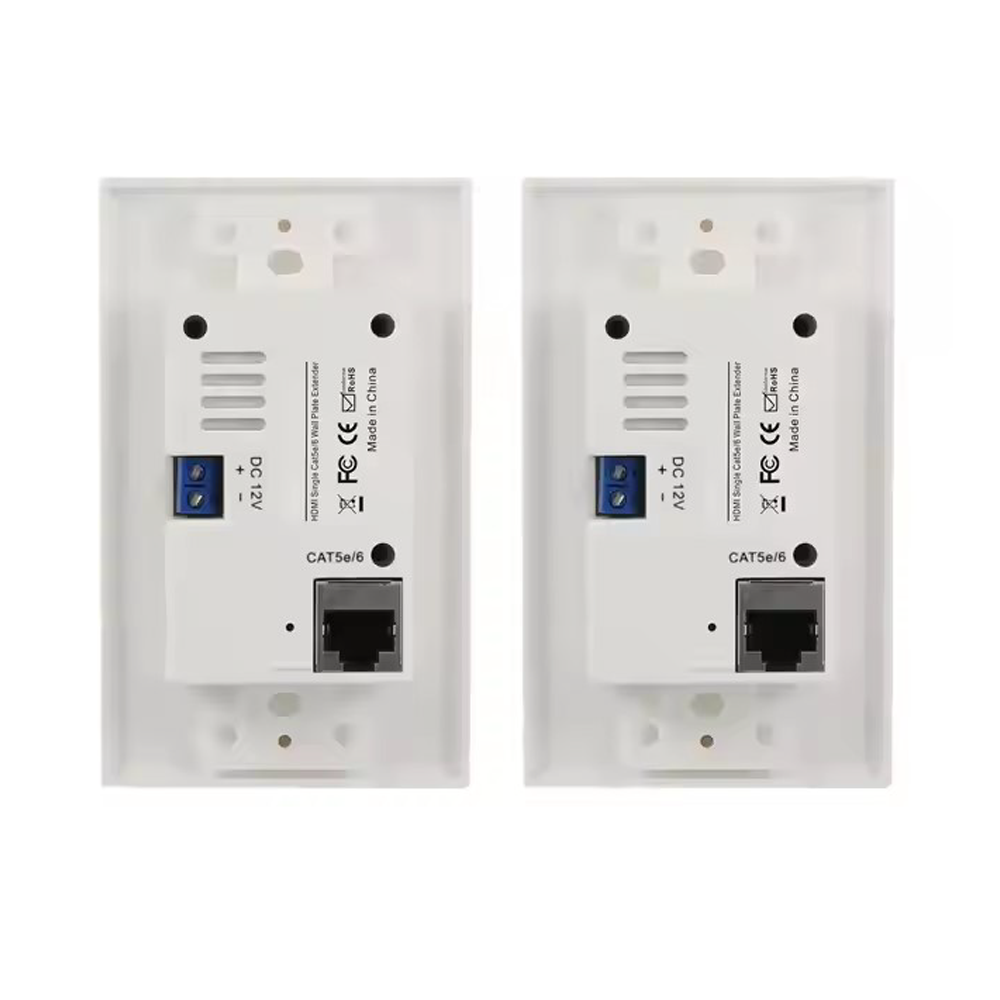

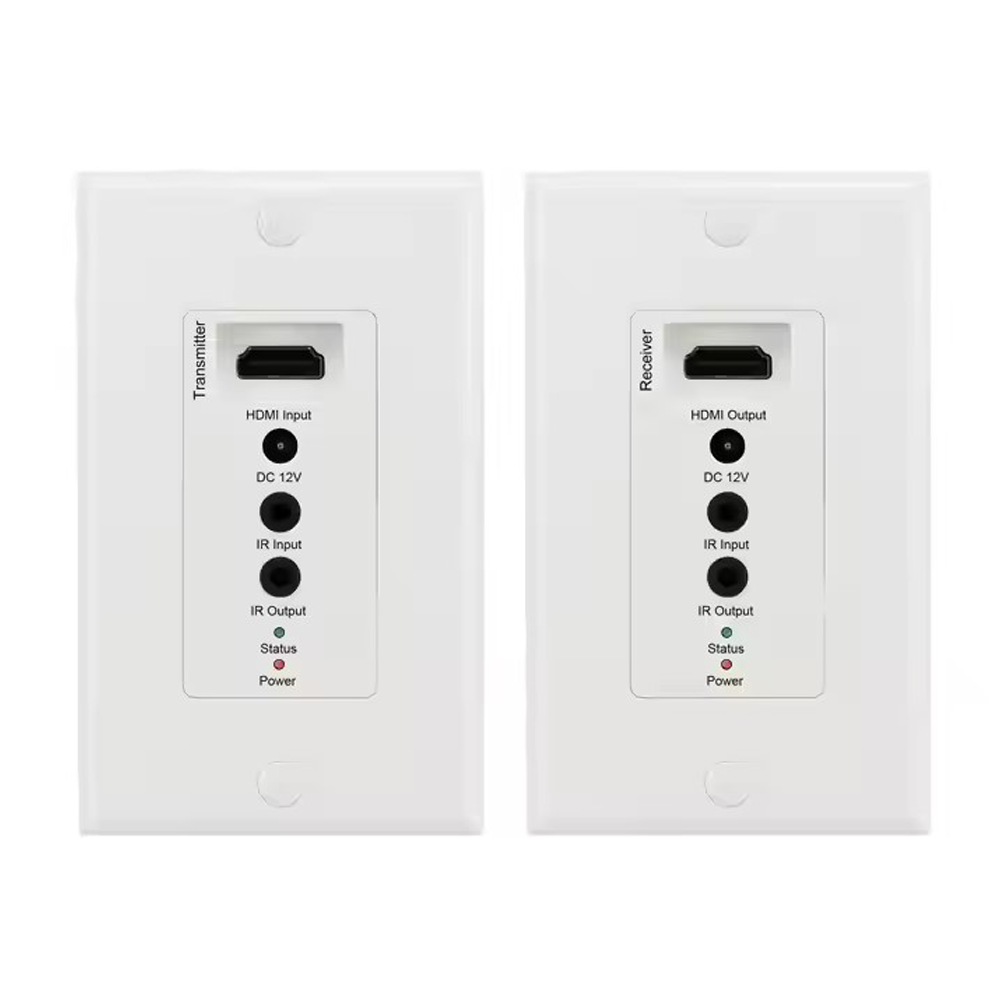

| Transmitter | HDMI input, IR output (3.5mm), IR input (3.5mm), RJ45 Ethernet interface, 12V DC in. |
| Receiver | HDMI output, IR output (3.5mm), IR input (3.5mm), RJ45 Ethernet interface, 12V DC in. |
| Video Format | DTV/HDTV: 480i/ 567i/ 480p/ 567P/ 720p/ 1080i/ 1080p@60Hz3D video format |
| Video Bandwidth | Maximum TMDS clock frequency 165MHz, 4.95Gbps |
| Transmission Range | 1080P CAT5E: 170ft (50meters), CAT6 200ft (60meters)720P/1080i CAT5E/270ft (80meters), CAT6 200ft (60meters) |
| Audio | 8-channel, supports Dolby True HD and DTS Master |
| HDMI Interface Standard | HDMI 1.3 standard (HDMI 1.4b 3D function)HDCP 1.2support EDID |
| Bi-direction remote | Compliant |
| CEC pass through | Compliant |
