BNC Balun - 1000ft Passive Video Extender - Screw Down
Click the image to zoom
BNC Balun - 1000ft Passive Video Extender - Screw Down
$5.50
In stock
— ships in 1 business day
Description

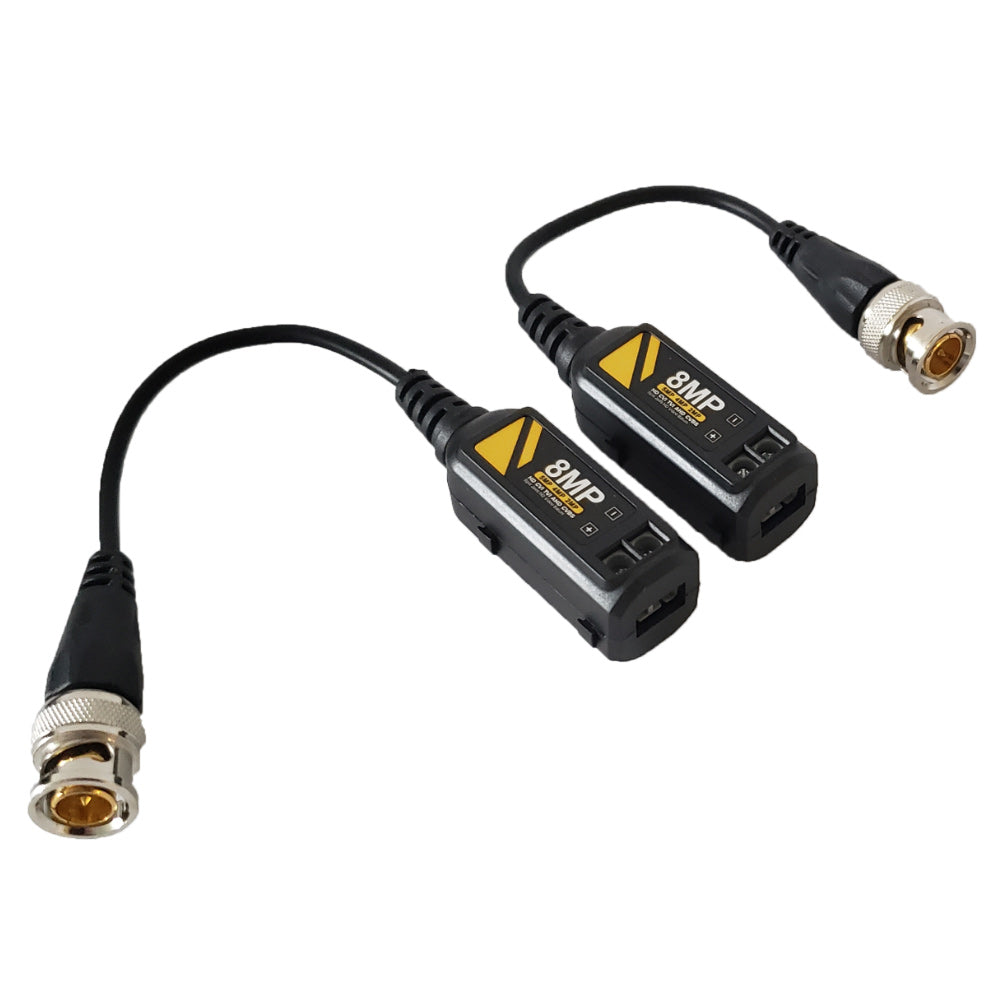

This BNC video extender over twisted pair cable consists of a transmitting and receiving unit. Each unit has BNC male connectors and screw-down terminals in it. It is used to extend a BNC composite signal over CAT5e/CAT6 cabling.
Specifications
BNC Balun - 1000ft Passive Video Extender - Screw Down
This BNC video extender over twisted pair cable consists of a transmitting and receiving unit. Each unit has BNC male connectors and screw-down terminals in it. It is used to extend a BNC composite signal over CAT5e/CAT6 cabling.
Color: Black
Housing Material: ABS
Operating Temperature: -10℃ - +55℃
Storage Temperature: -20℃ - +70℃
Humidity: 0 to 95%
| Product | BNC Balun - 1000ft Passive Video Extender - Screw Down |
| Color | Black |
| Housing Material | ABS |
| Operating Temperature | -10℃ - +55℃ |
| Storage Temperature | -20℃ - +70℃ |
| Humidity | 0 to 95% |
| Coaxial Video Connector | 2 - BNC Male |
| Twisted-pair Video Connector | 2 - Channel Punch Terminals |
| Impedance | 75 Ohms - BNC 100 Ohms - UTP |
| Transmission Signal | 1 Channel |
| Compatible Format | HD-CVI, HD-TVI and HD-AHD |
| Supported Video Formats | NTSC/PAL/SECAM |
| Resolution | 720p/1080p/4MP/5MP/8MP |
| Transmission Distance | Up to 400m for 720p CVI camerasUP to 250m for 1080p CVI camerasUp to 200m for 4MP/5MP/8MP CVI CamerasUp to 250m for 720p/1080p TVI CamerasUp to 200m for 4MP/5MP/8MP TVI CamerasUp to 350m for 720p AHD camerasUp to 200m for 1080p/4MP/5MP/8MP AHD Cameras |
| Frequency Response | DC to 60MHz |
| Anti-Interference | >60dB |
