HDMI 4-port Extender Over One Cat6 UTP Cable - 4K@30Hz YUV 4
Click the image to zoom
HDMI 4-port Extender Over One Cat6 UTP Cable - 4K@30Hz YUV 4:4:4 - 40m
$468.75
In stock
— ships in 1 business day
Description
This 4 port HDMI video extender allows you to extend a maximum of four 3D/HD displays up to 131ft (40 meters) away from your source device over Cat6 cables at a resolution of 4K@30Hz.
Specifications
HDMI 4-port Extender Over One Cat6 UTP Cable - 4K@30Hz YUV 4:4:4 - 40m
This 4 port HDMI video extender allows you to extend a maximum of four 3D/HD displays up to 131ft (40 meters) away from your source device over Cat6 cables at a resolution of 4K@30Hz.
Color: Black
Housing: Metal Enclosure
Dimensions: Transmitter: 210W x 83D x 18H mmReceiver: 79.5W x 69D x 16.5H mm
Operating Temperature: 0 ~ 40℃ / 32 ~ 104℃F
Storage Temperature: -20 ~ -60℃ / -4 ~ 140℃F
| Product | HDMI 4-port Extender Over One Cat6 UTP Cable - 4K@30Hz YUV 4:4:4 - 40m |
| Color | Black |
| Housing | Metal Enclosure |
| Dimensions | Transmitter: 210W x 83D x 18H mmReceiver: 79.5W x 69D x 16.5H mm |
| Operating Temperature | 0 ~ 40℃ / 32 ~ 104℃F |
| Storage Temperature | -20 ~ -60℃ / -4 ~ 140℃F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Input Voltage | 125V |

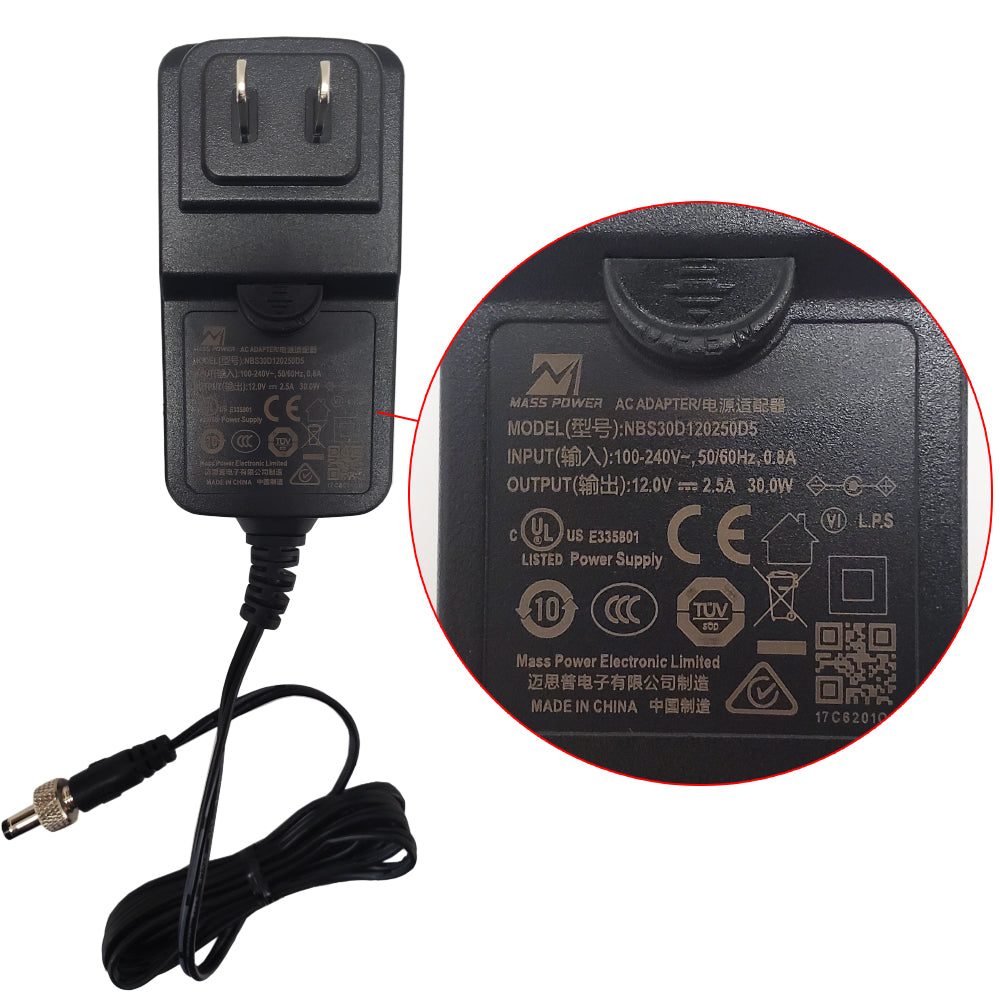

| Power Supply | 12V/2.5A DC Power (US/EU Standards, CE/FCC/RoHS certificated) |
| Power Consumption | 11W |

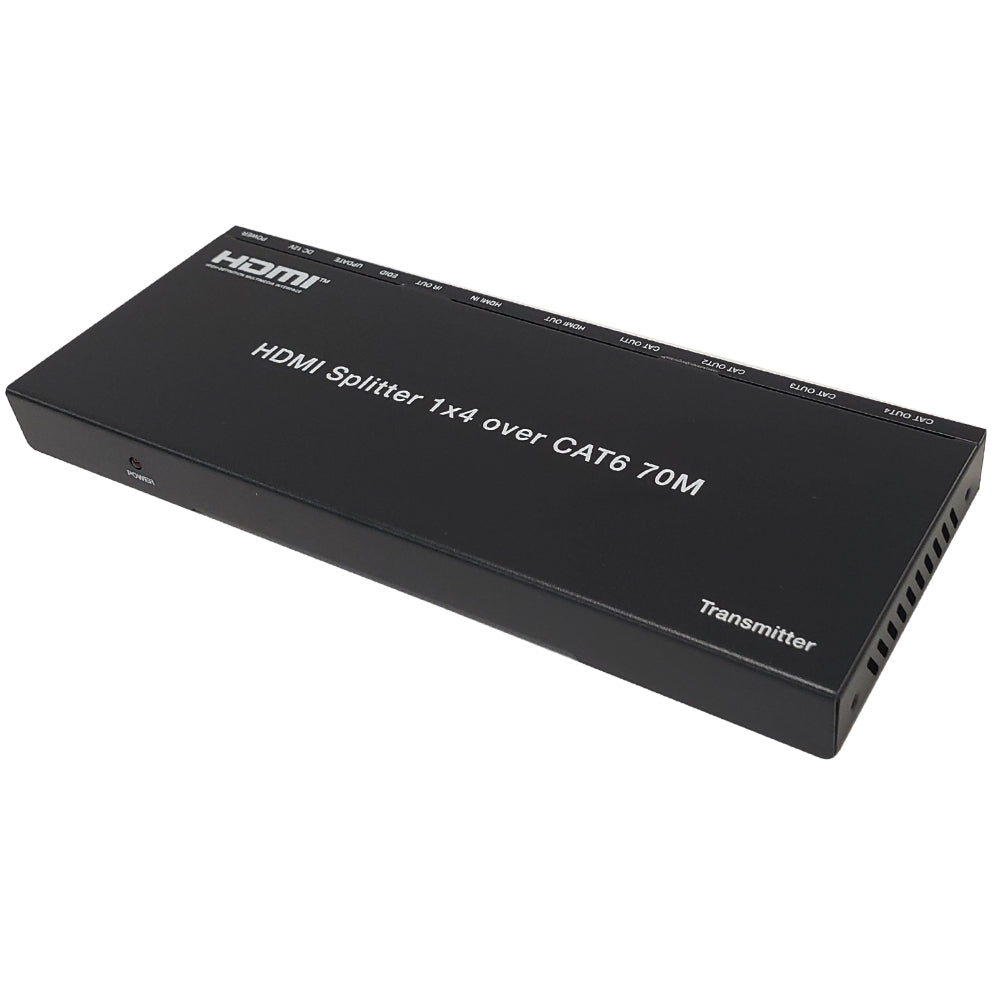

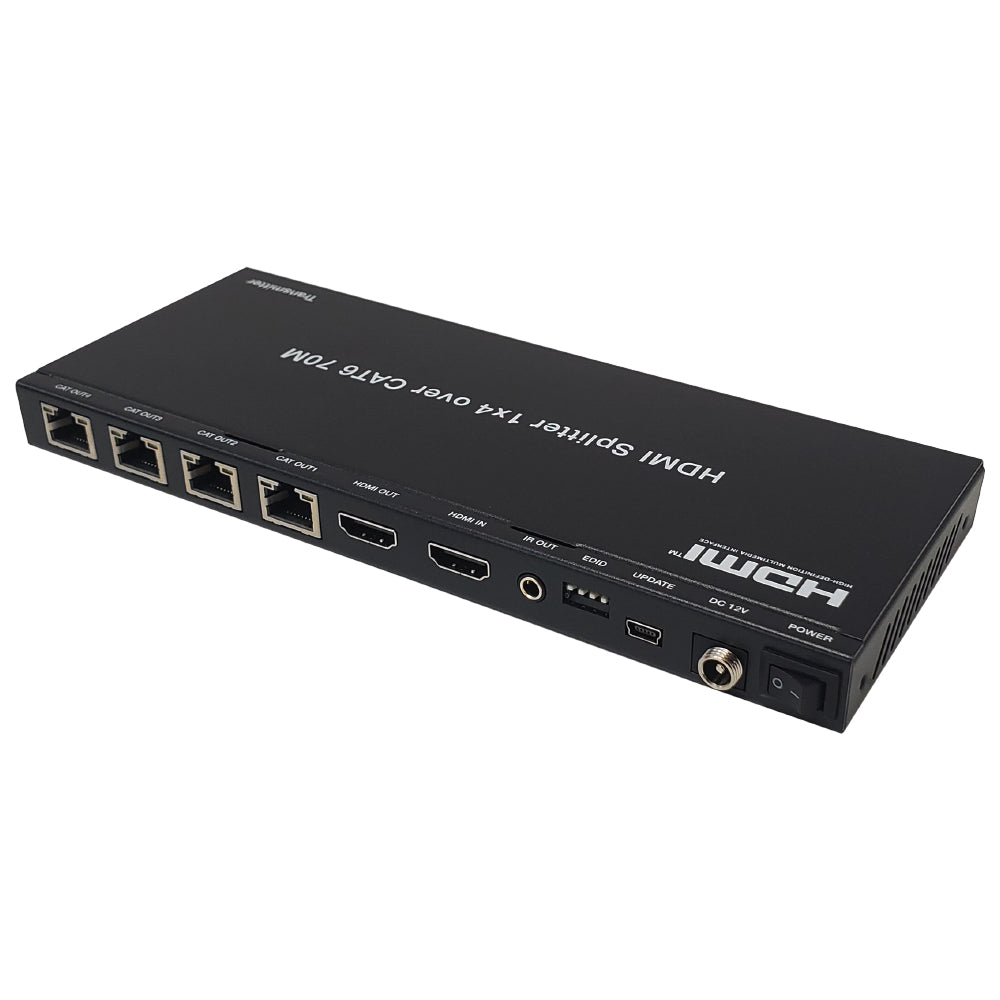

| Transmitter | Input: 1x HDMI IN [Type A, 19-pin female]Outputs: 1x HDMI OUT [Type A, 19-pin female]4x CAT OUT [RJ45]Controls: 1x IR Out [3.5mm Stereo Mini-jack]1x EDID DIP Switch [4-pin]1x Update [Micro USB] |

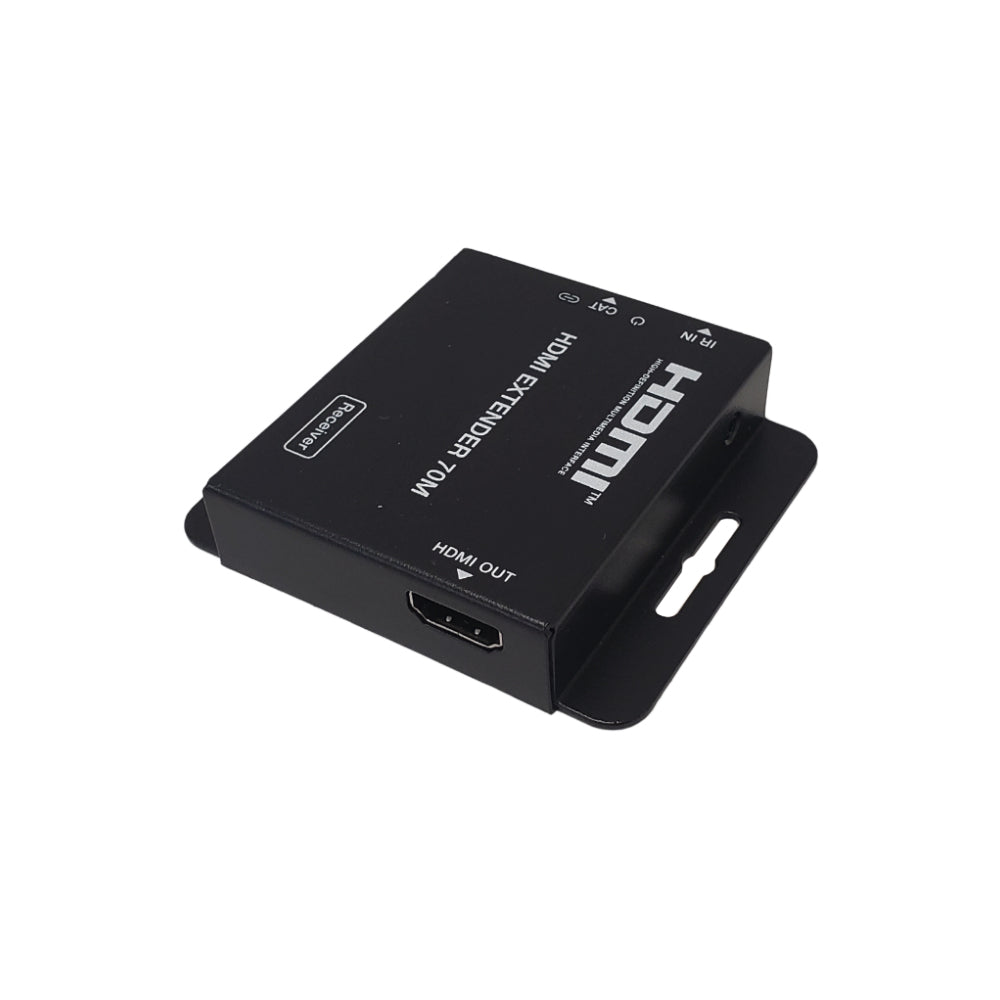

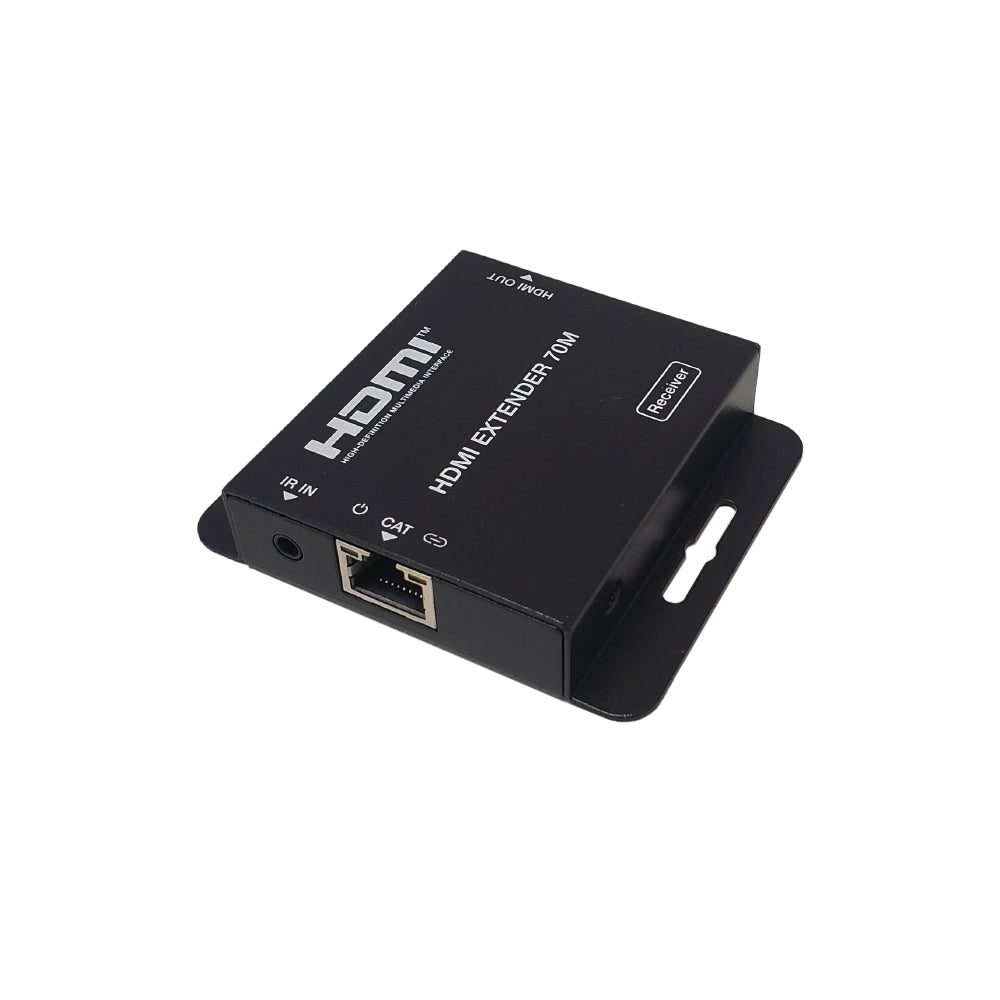

| Receiver | Input: 1x IR IN [3.5mm Stereo Mini-jack]1x CAT IN [RJ45, 8-pin female]Outputs:1x HDMI OUT [Type A, 19-pin female |
| Video Resolution | 480i ~ 1080p 50/60Hz, 4Kx2K@30Hz (4:4:4) |
| Video Bandwidth | 297MHz/10.2Gbps |
| Transmission Range | 1080p@60Hz - Up to 70m (230ft) 4K@30Hz - Up to 40m (131ft) |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K@30Hz) |
