BNC Balun - 1000ft Passive Video Extender - Push Button
$5.69
In stock
— ships in 1 business day
Description

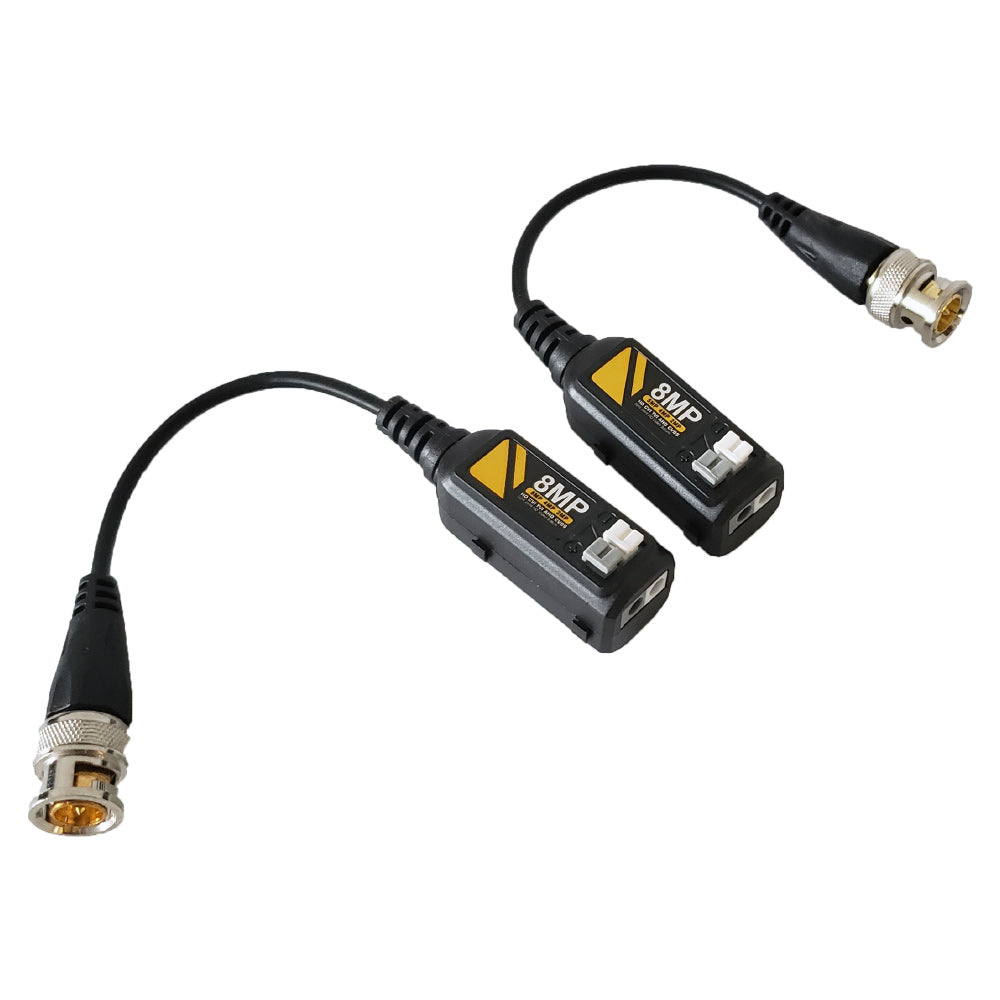

This BNC video extender over twisted pair cable consists of a transmitting and receiving unit. Each unit has BNC male connectors and push-pin terminals in it. It is used to extend a BNC composite signal over CAT5e/CAT6 cabling.
Specifications
BNC Balun - 1000ft Passive Video Extender - Push Button
This BNC video extender over twisted pair cable consists of a transmitting and receiving unit. Each unit has BNC male connectors and push-pin terminals in it. It is used to extend a BNC composite signal over CAT5e/CAT6 cabling.
Color: Black
Housing Material: ABS+PC
Operating Temperature: -10℃ - +70℃
Storage Temperature: -30℃ - +70℃
Humidity: 0 to 95%
| Product | BNC Balun - 1000ft Passive Video Extender - Push Button |
| Color | Black |
| Housing Material | ABS+PC |
| Operating Temperature | -10℃ - +70℃ |
| Storage Temperature | -30℃ - +70℃ |
| Humidity | 0 to 95% |
| Coaxial Video Connector | 2 - BNC Male |
| Twisted-pair Video Connector | 2 - Press-Fit terminal blocks(grey & white color switch) |
| Impedance | 75 Ohms - BNC 100 Ohms - UTP |
| Transmission Signal | 1 Channel |
| Compatible Format | HD-CVI, HD-TVI and HD-AHD |
| Supported Video Formats | NTSC/PAL/SECAM |
| Transmission Distance | Up to 450m for 720p CVI camerasUP to 250m for 1080p/3MP/4MP/5MP/8MPCVI CamerasUp to 250m for 720p/1080p/3MP/4MP/5MP/8MP TVI CamerasUp to 350m for 720p/960p AHD camerasUp to 250m for 1080p/3MP/4MP/5MP/8MPAHD Cameras |
| Frequency Response | DC to 60MHz |
| Attenuation | 0.5dB type |
| Common Mode Rejection Ratio | 60dB |
